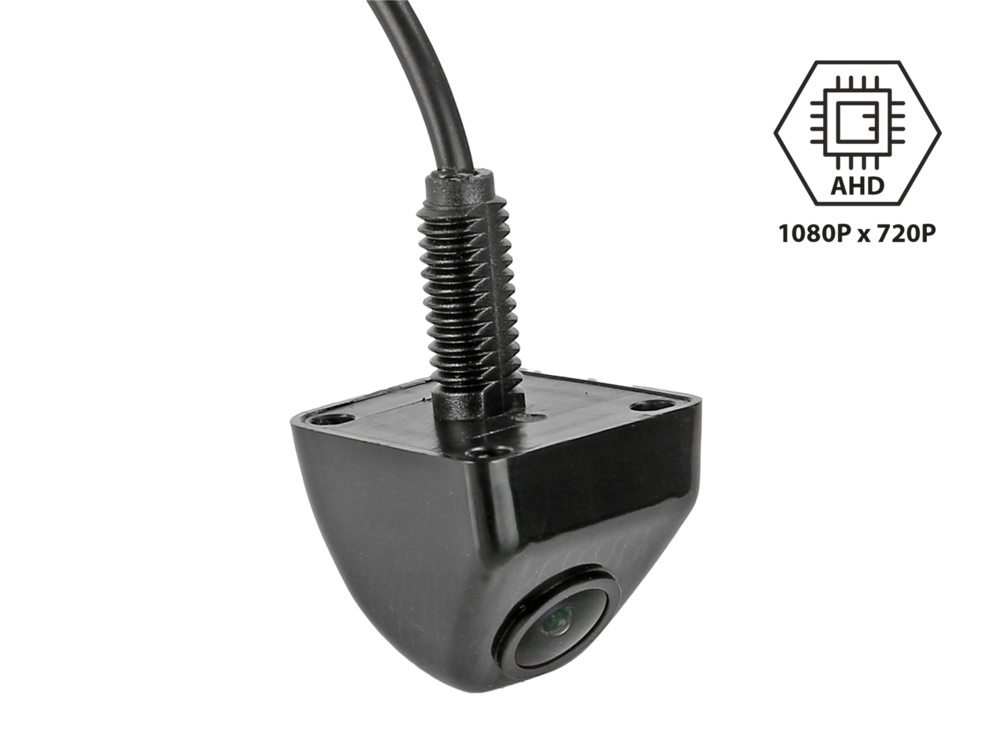

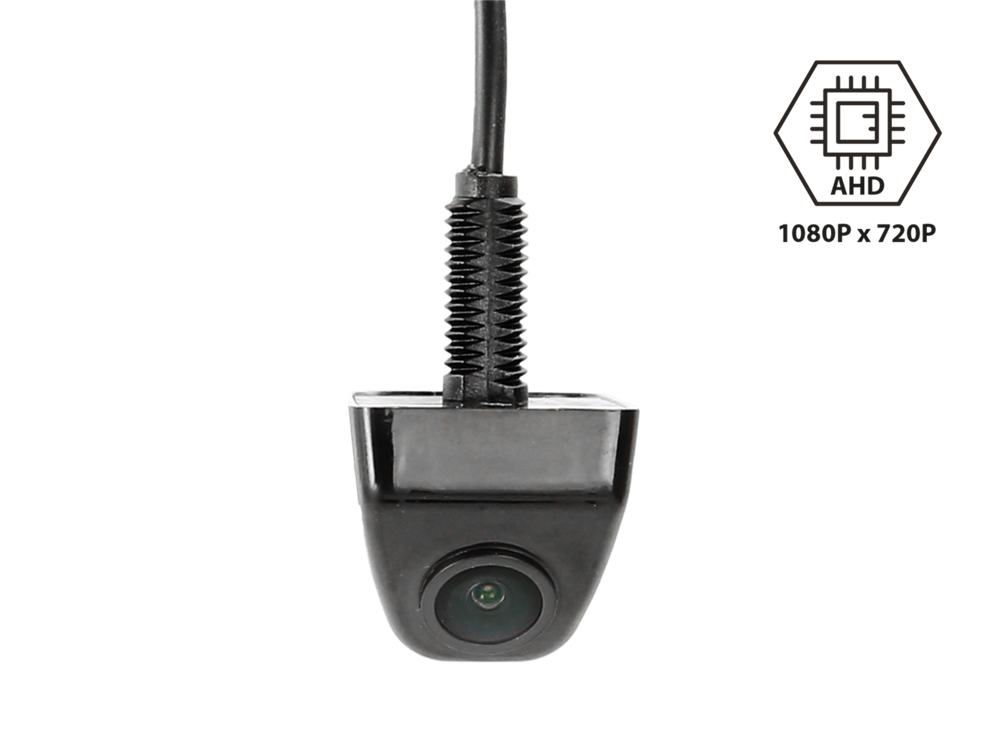

ACV UNIVERSAL (AHD) MINI UNDERBYGNINGS KAMERA

Rear view camera AHD universal ( Analog high definition)

Design: foursquared
Installation: sub-construction

with small design / IP69K / lens angle diagonal 210°

Note:

acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +3V
camera power supply: +12V / +24V

connection without voltage converter +3V in scope of delivery damages the camera

connection:
red: +12V / +24V switched load-stable fused
black: car body direct groud/GND

RCA(m) yellow: video

Product characteristic camera:

Design: plastic
Color: black
Extras: small design / IP69K
Image sensor: 1/2,8" AHD
TV system: NTSC
Lens: mm / F
Lux: 0.03
Resolution: TV lines
Lens angle: diagonal 210°
View angle: horizontal 120° vertical 120° +5°
IP Rating: IP68
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +3V DC
Power supply: +12V / +24V DC > with voltage converter
Current consumption: 100mA
Operating temperature: -20°C - 70°C
Storage temperature: -40°C - 80°C

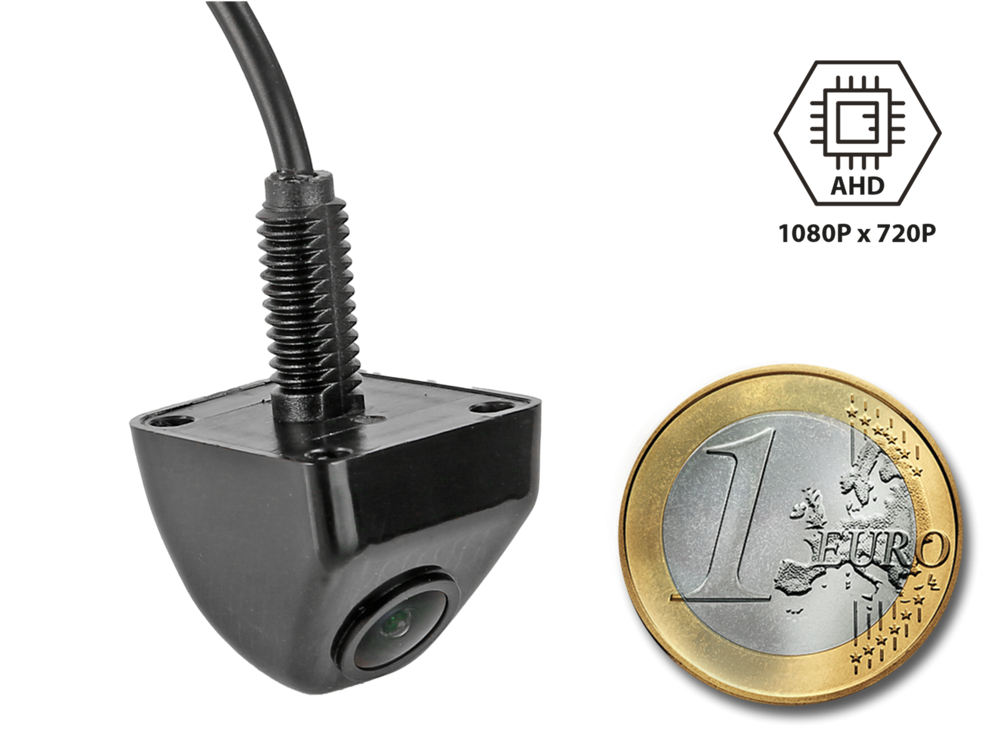

Measurements: L / B / H / 25,7mm / 28mm / 23,5mm

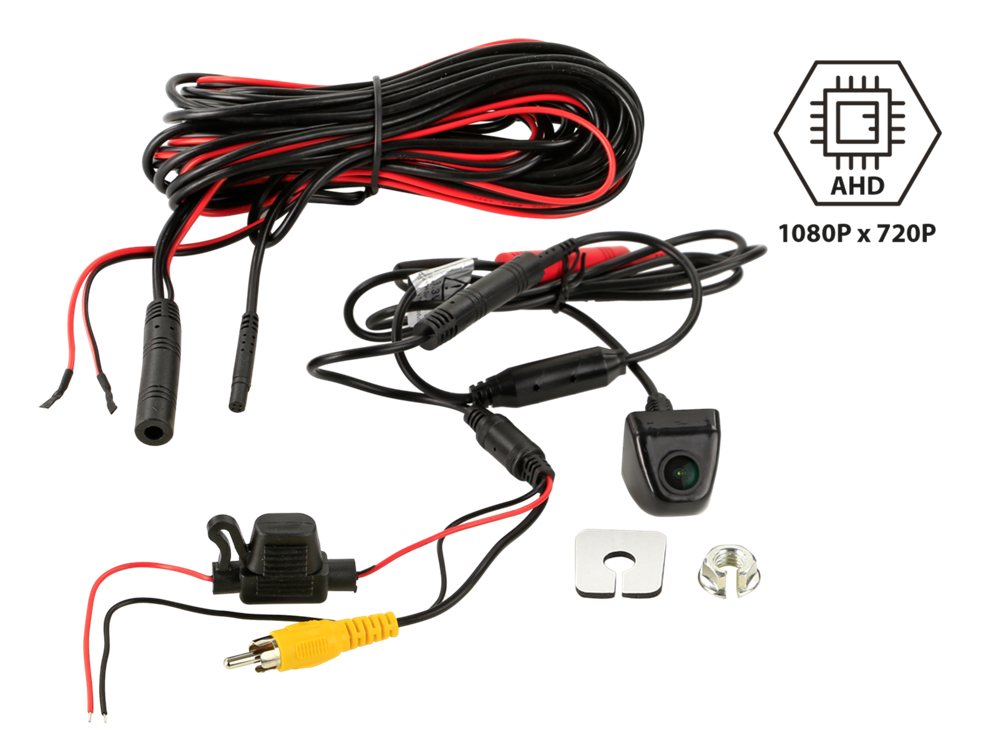

Pigtail at the camera 1m +/-:
4 Pin acv-system connector(m) Ø5,2mm

Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm

Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
