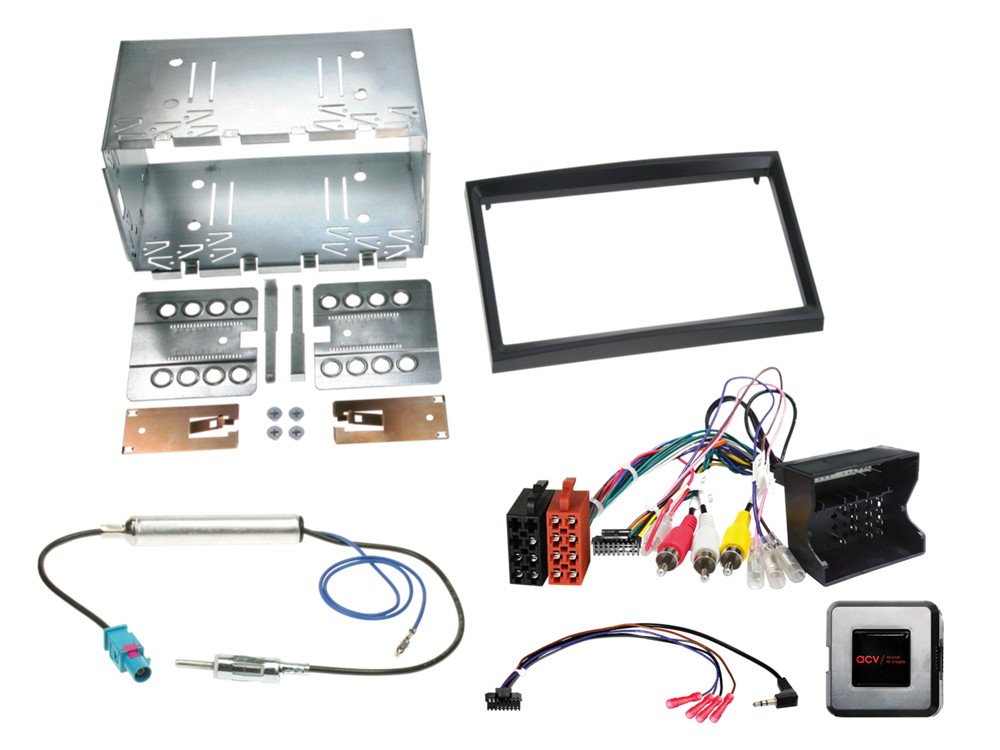

ACV KOMPLET MONT. KIT C2, C3, 207, 307, EXPERT 2005 > 2009

CAN Bus

connector: 40 Pin Quadlock Citroen / Peugeot
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)
connector: OEM AUX > RCA(m) red / white
connector: OEM rear view camera > RCA(m) yellow

blue: +12V antenna remote

facia plate with 2-ISO installation kit

vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM HU with volume control knob

vehicles without Bosch OEM HU
vehicles without Continental RD45 OEM HU with volume control knob**
vehicles without Magneti Marelli RT3 / RT6 / Harman Becker OEM Sat Nav
vehicles without JBL OEM amplified system

vehicles with PDC rear:
Chimes Interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo > item: can-pdc*

vehicles with PDC switch:
PDC chimes funktion must be activated

vehicles with ECO-mode:
+12V continuous current clamp 30 batterie fused

vehicle settings supported (look into the manual)

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen Berlingo (7) 06/2008 - 03/2012
Citroen Berlingo (7) 04/2012 - 05/2015
Citroen Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroen C3 Pluriel (H) 01/2003 - 04/2008
Citroen C3 Pluriel (H) 04/2008 - 02/2010
Citroen Jumpy (X) 02/2007 - 03/2012
Citroen Jumpy (X) 03/2012 - 05/2016

Fiat
Fiat Scudo (ZAF 270) 02/2007 -07/2016

Peugeot
Peugeot 207 (W) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 307 (3/ 3 Break/ 3 SW/3 CC) 06/2005 - 03/2009
Peugeot Expert (X) 02/2007 - 03/2012
Peugeot Expert (X) 03/2012 - 08/2016
Peugeot Partner/Partner Tepee (7) 05/2008 - 03/2012
Peugeot Partner/Partner Tepee (7) 03/2012 - 04/2015

Toyota
Toyota ProAce 06/2013 - 07/2016

Colour: black

Mounting cutout HU display: 173mm x 98,5mm

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
