ACV KOMPLET MONT. KIT C2, C3, 207, 307, EXPERT 2005 > 2009 MED BAKALARM

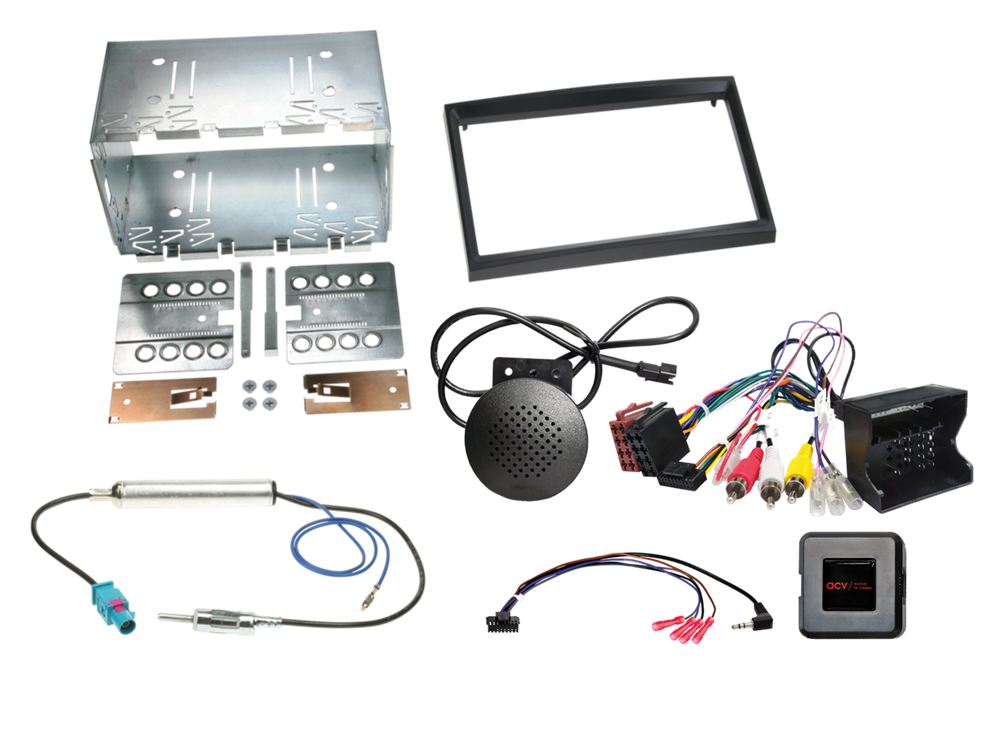

Citroen C2/C3 Installation Kit. Supplied With Black Double DIN Fascia Kit, CAN-Bus Steering Wheel Control Interface, FAKRA Antenna Adapter & Universal Patchlead

Note:

CAN Bus

connector: 40 Pin Quadlock Citroen / Peugeot
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) > DIN(m)
connector: OEM AUX > RCA(m) red / white
connector: RCA(m) yellow not connected

blue: +12V antenna remote

facia plate with 2-DIN installation kit

vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM HU with volume control knob
vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary knob
vehicles with PDC rear

vehicles without Bosch OEM HU
vehicles without Continental RD45 OEM HU with volume control knob
vehicles without Magneti Marelli RT3 / RT6 / Harman Becker OEM Sat Nav
vehicles without JBL OEM amplified system

vehicles without OEM rear speakers:
PDC chimes to rear speaker output
change connection front/rear speaker of the ISO plug

vehicles Peugeot CC:
SWC Citroen/Fiat/Peugeot/Toyota vehicles Quadlock PDC > item: 42a-1041-008

vehicles with Continental RD45 OEM HU with volume control knob:
SWC Citroen/Fiat/Peugeot/Toyota vehicles Quadlock PDC > item: 42a-1041-008

vehicles with PDC switch:
PDC chimes funktion must be activated

vehicles with ECO-mode:
connect +12V continuous current clamp 30 to batterie fused

vehicle settings supported (look into the manual)

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen Berlingo (7) 06/2008 - 03/2012
Citroen Berlingo (7) 04/2012 - 05/2015
Citroen Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroen C3 Pluriel (H) 01/2003 - 04/2008
Citroen C3 Pluriel (H) 04/2008 - 02/2010
Citroen Jumpy (X) 02/2007 - 03/2012
Citroen Jumpy (X) 03/2012 - 05/2016

Fiat
Fiat Scudo (ZAF 270) 02/2007 -07/2016

Peugeot
Peugeot 207 (W) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 307 (3/ 3 Break/ 3 SW/3 CC) 06/2005 - 03/2009
Peugeot Expert (X) 02/2007 - 03/2012
Peugeot Expert (X) 03/2012 - 08/2016
Peugeot Partner/Partner Tepee (7) 05/2008 - 03/2012
Peugeot Partner/Partner Tepee (7) 03/2012 - 04/2015

Toyota
Toyota ProAce 06/2013 - 07/2016

Colour: black

Mounting cutout HU display: 173mm x 98,5mm

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
