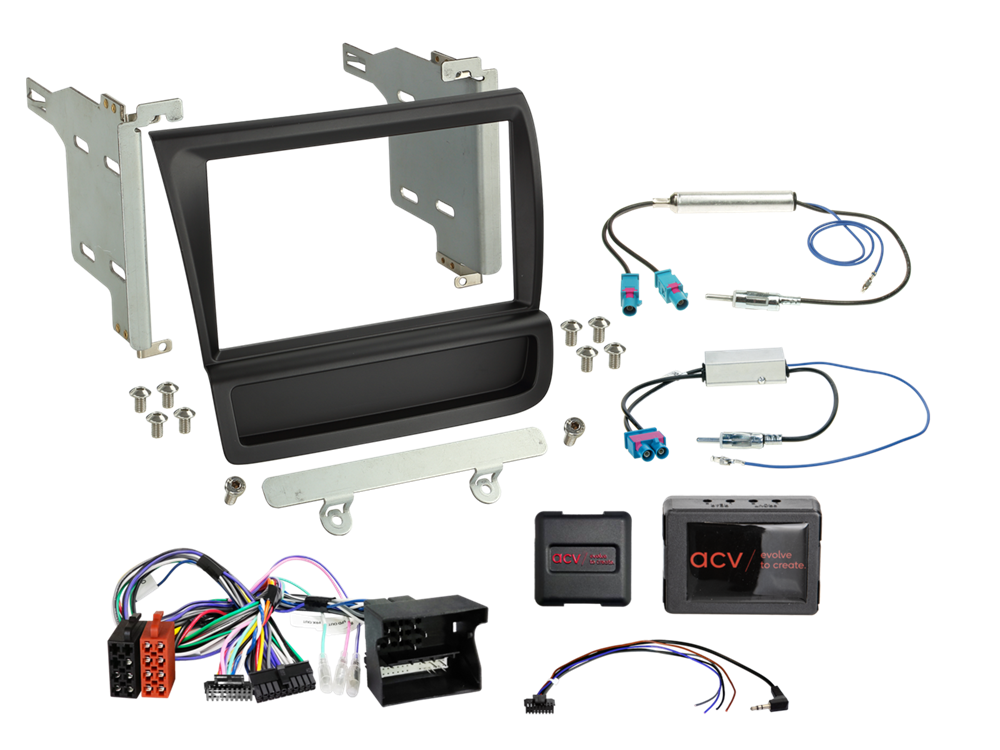

ACV KOMPLET MONT. KIT AUDI R8 2007 > 2015

Komplet kit til montering af 2-din. Passer til modeller både med og uden forstærker. Passer ikke til MMi og B&O systemer.

CAN Bus

connector: 40 Pin Quadlock Audi
connector: OEM SWC > 3,5mm Jack / loose wire
connector: 2 channel / 4 channel OEM amplified system > speaker output front/rear level adjustnemt
connector: OEM antenna Fakra(m) > DIN(m)

blue: +12V antenna remote

vehicles with/without OEM amplified system

1-DIN HU installation:
Facia pocket for 2-DIN facia plates screw fixing > item: 271000-10

OEM (RGB) rear view camera not supported > no retention available

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Audi R8 (42) 04/2007 - 12/2012
Audi R8 (42) 12/2010 - 05/2015

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system 2 channel / 4 channel
