ACV KOMPLET 1-2 DIN MONT. KIT DUCATO, BOXER, JUMPER 2006 > 2021 UDEN OEM RADIO FRA FABRIK (SORT)

Varenr.: 611094-29-1

PRIS ER PR. Sæt

Pris ved køb af 1 Sæt,0,00 DKK

Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.

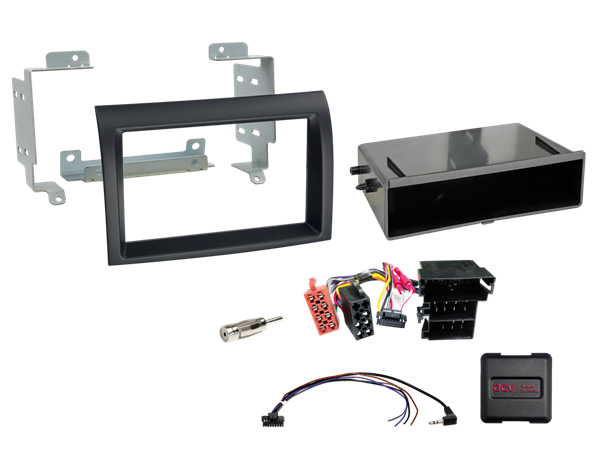

Pakken indeholder

1 stk.

Indlæser.. 1 stk.

Indlæser..

Facia plate 2-DIN with HU connector kit SWC Citroen / Fiat / Opel / Peugeot

Many car manufacturers install car specific head units to match the optic of the dashboard.

Installation kits include all components for replacing an OEM HU.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please check the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call or other driver assistance systems.

Please check the OEM HU and vehicle settings for available settings bevore installation.

Please check all functions bevor final installation.

Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note:

analog

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna ISO(f) > DIN(m)

vehicles with open dash
vehicles with +12V ignition and analog SWC in Mini ISO connector Pin 10/11/12 SWC1/GND/SWC2

vehicles without OEM HU

in case of swappt SWC commands change connection of green/blue wire

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen Jumper (250) 05/2014 - 10/2022
Citroen Jumper (250) 10/2022 - 2024
Citroen e-Jumper (259 10/2021 - 2024
Citroen Relay (250) 2006- 2024

Fiat
Fiat Ducato (ZAF 250) 05/2014 -11/2021

Opel
Opel Movano Cargo C (Y) 10/2021 - 01/2024
Opel Movano Cargo C (Y) 01/2024 - 2024
Opel Movano Electric Cargo C (Y) 10/2021 - 01/2024
Opel Movano Electric Cargo C (Y) 01/2024 - 2024

Peugeot
Peugeot Boxer (Y) 09/2014 - 12/2019
Peugeot Boxer (Y) 08/2018 - 2024
Peugeot e-Boxer (Y) 10/2021 - 2024

Colour: black

Mounting cutout HU display: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC
