Varenr.: 771000-6072
På lager hos vores leverandør

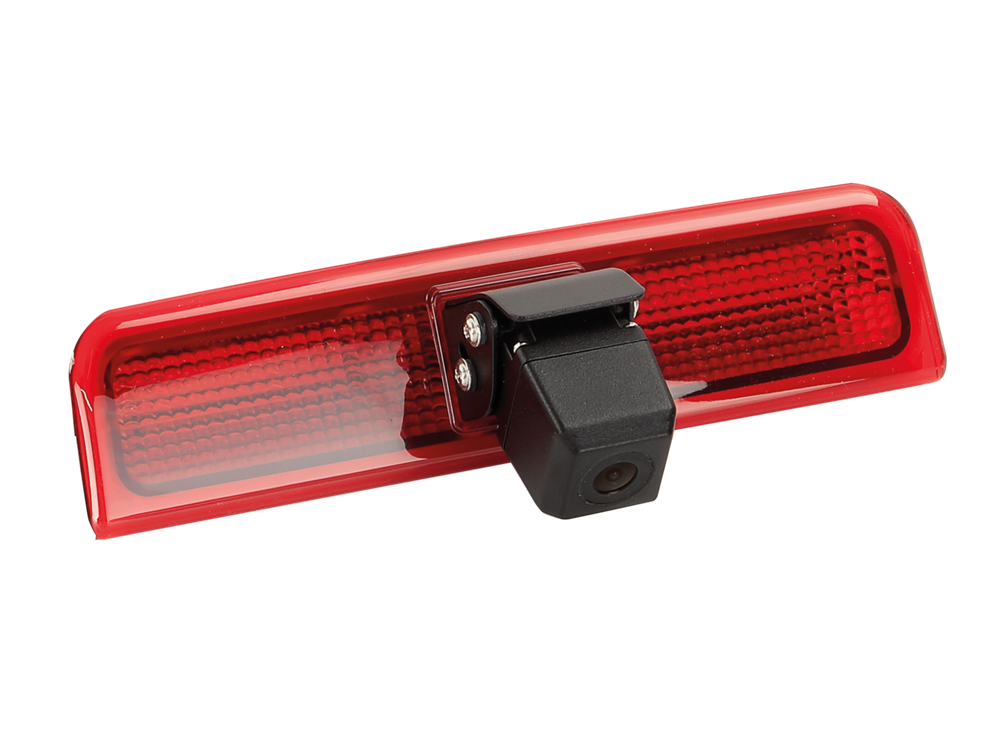

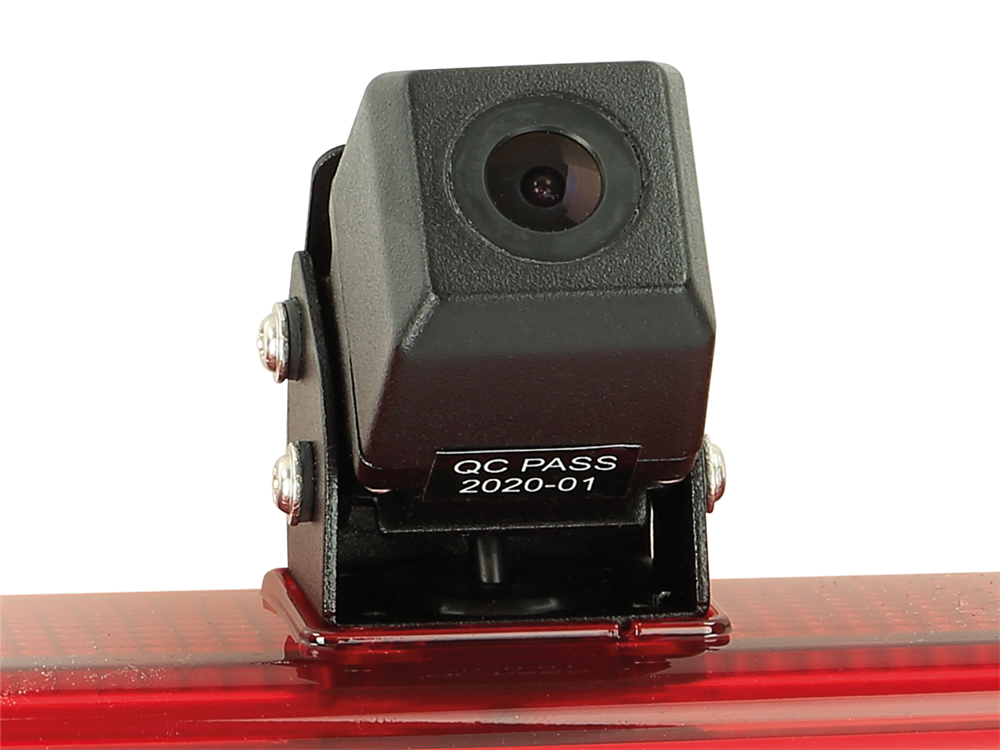

Rear view camera
VW Caddy 2003 - 2015
to replace the OEM 3rd brake light
with guiding lines and adjustable view angle
Note:
all acv cameras are suitable for +12V continuous operation
connection:
red +12V switched load-stable (fused)
black ground car body direct
Product characteristic:
Design: plastic
Color: black / red
Extras: guiding lines via jumper and adjustable view angle
Image sensor: 1/3" CMOS
TV system: NTSC
Effective pixels: 976 x 592
Lens: 1,9mm / F 2.0
Resolution: 600 TV lines
Lens angle diagonal: 160° + 5°
View angle: horizontal 115° vertical 75° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: DC 12V + 10%
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C

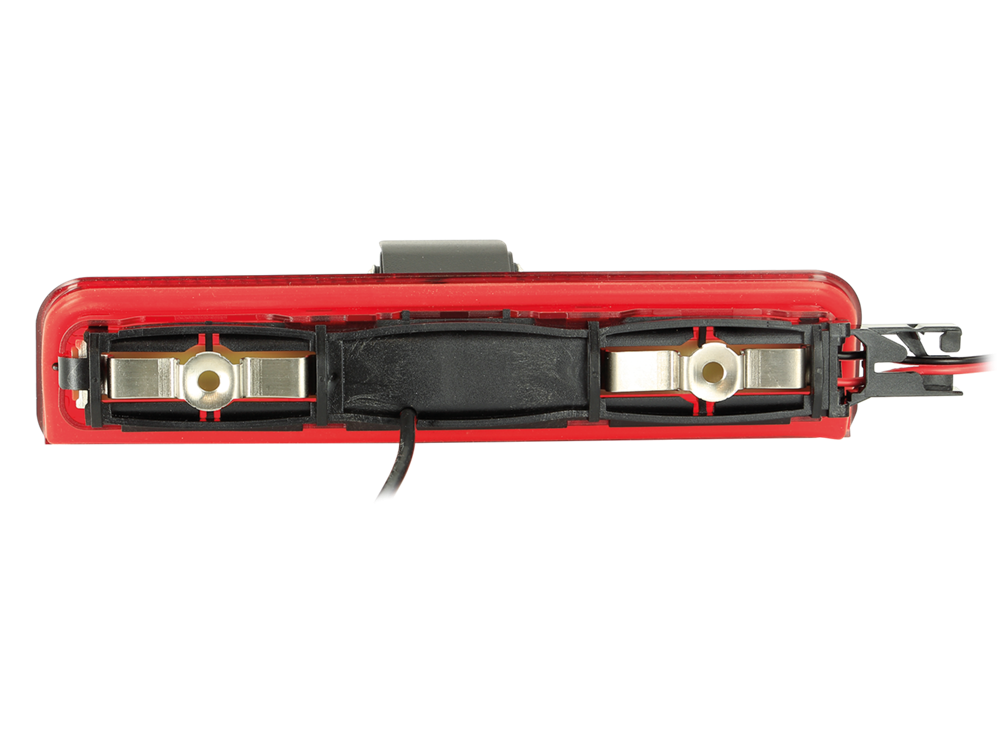

Measurements: see 3´rd OEM brake light

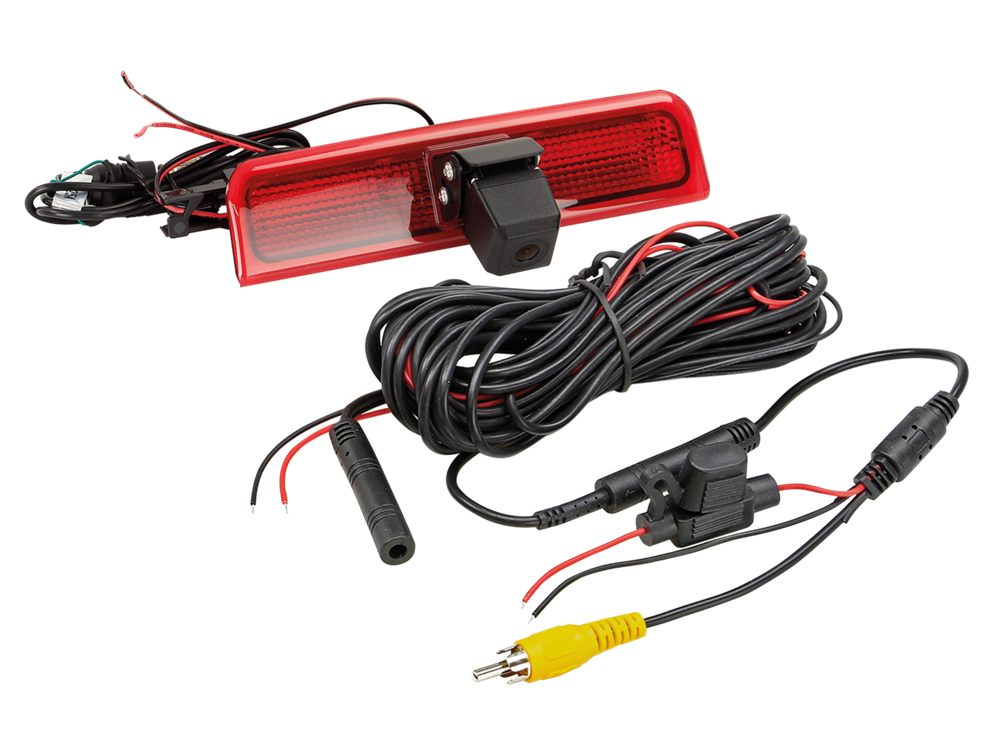

Pigtail at the camera:
1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 1 jumper
6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm
0,2 Meter power wire harness incl. fuse and video connector (RCA)
