ACV KAMERA TOYOTA HILUX 2016>

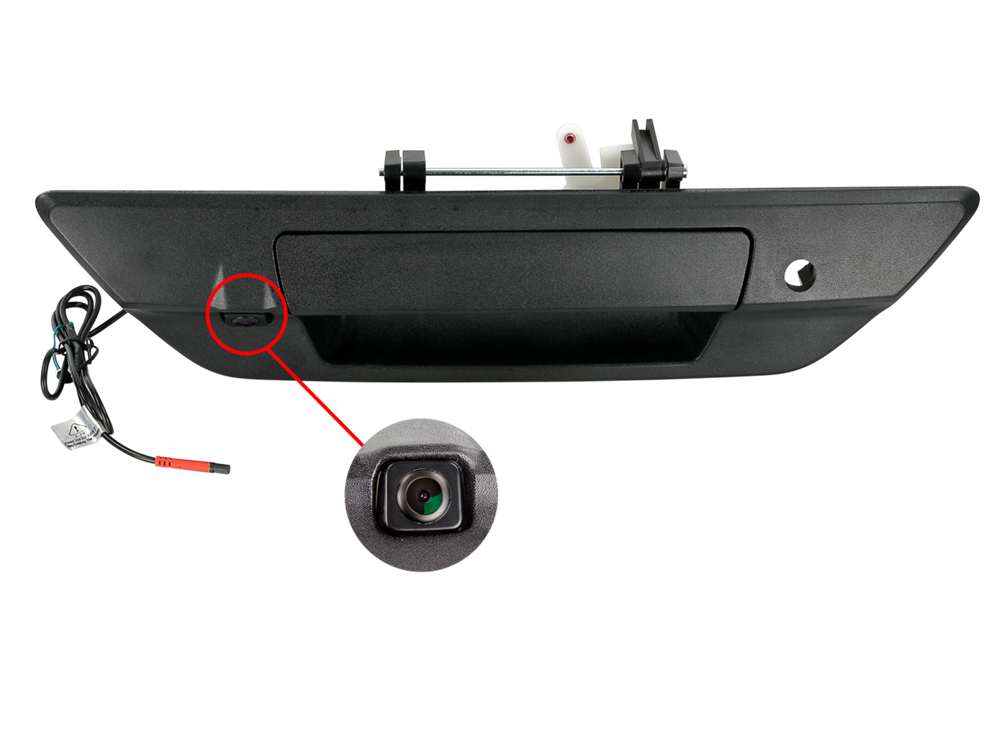

Rear view camera

Toyota Hilux (AN1P) 06/2016 - 09/2020
Toyota Hilux (AN1P) 10/2020 -2022

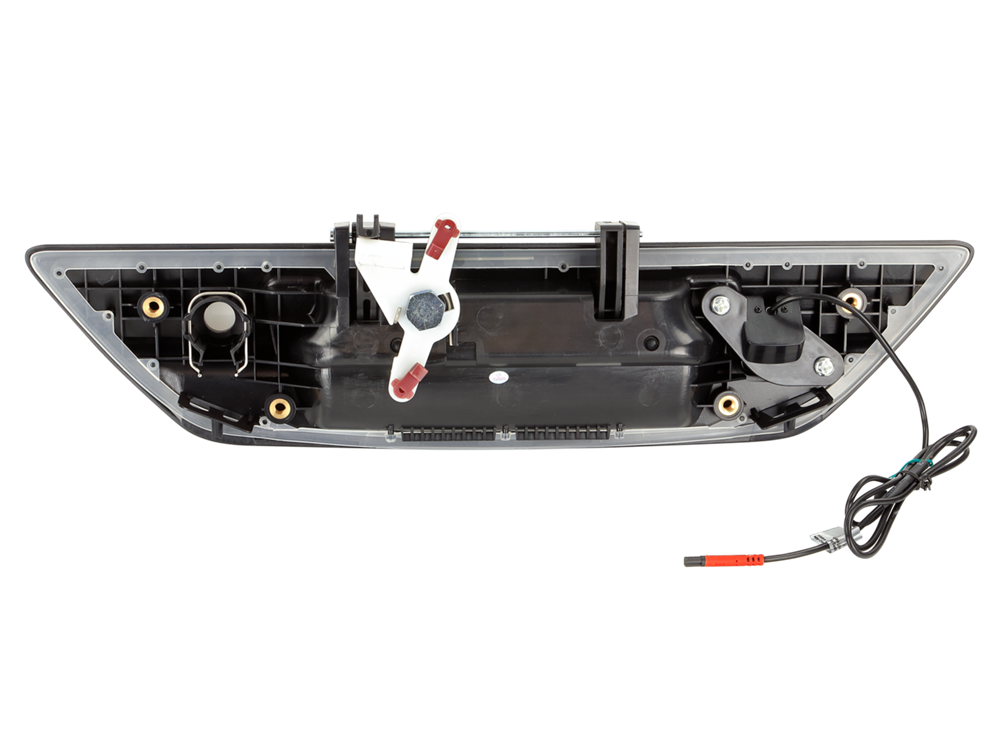

to replace the handle tailgate
with guiding lines

Note:

all acv cameras are suitable for +12V continuous operation

camera operating voltage: +3V
connection without voltage converter damages the camera

connection:
red +12V switched load-stable fused
black ground car body direct

Product characteristic camera:

Design: plastic
Color: black
Extras: guiding lines via jumper
Image sensor: 1/3" CMOS
TV system: NTSC
Min.Lux: 0.1 Lux
Resolution: 976 (H) x 592 (V)
TV lines: 600
Lens angle: diagonal 160°
View angle: horizontal 110° vertical 70° + 5°
IP Rating: IP67
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: +12Volt DC + 10%
Current consumption: 80mA
Operating temperature: -20°C - 70°C
Storage temperature: -40°C - 80°C
Measurements: L / B / 450,7mm / 109,9mm

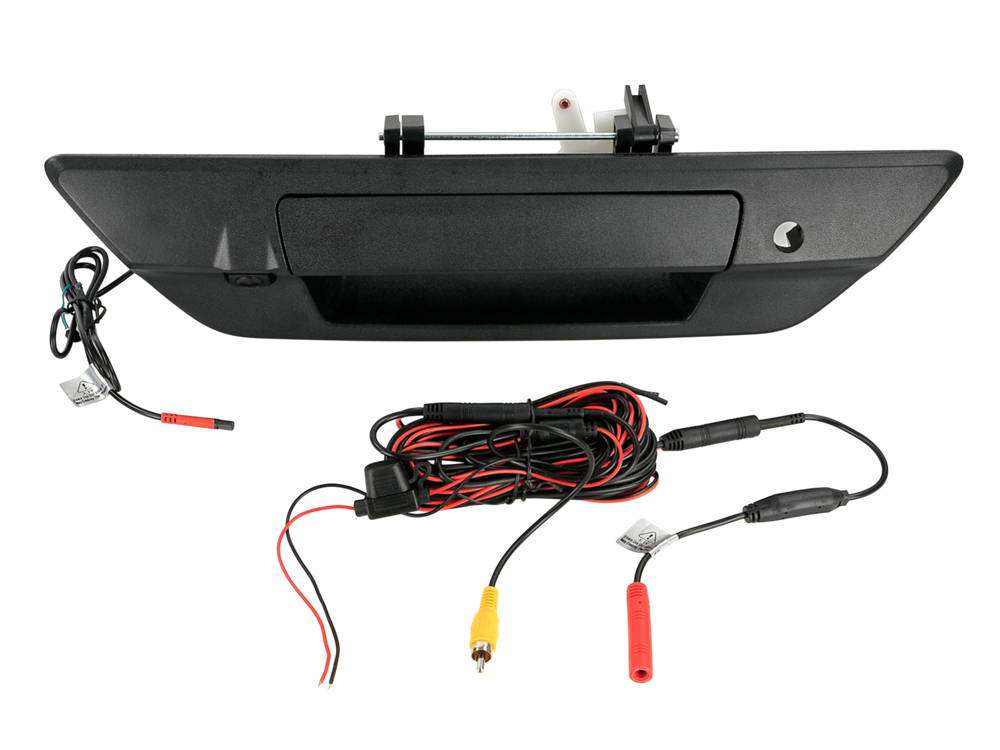

Pigtail at the camera:

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 1 jumper

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
