ACV KAMERA MERCEDES/RENAULT

Rear view camera Mercedes / Renault

Mercedes Citan (W415) 01/2012 - 2021

Renault Kangoo (W) 03/2013 - 12/2020
Renault Kangoo Rapid (W) 03/2013 - 05/2021
Renault Kangoo Z.E. (W) 05/2013 - 05/2021

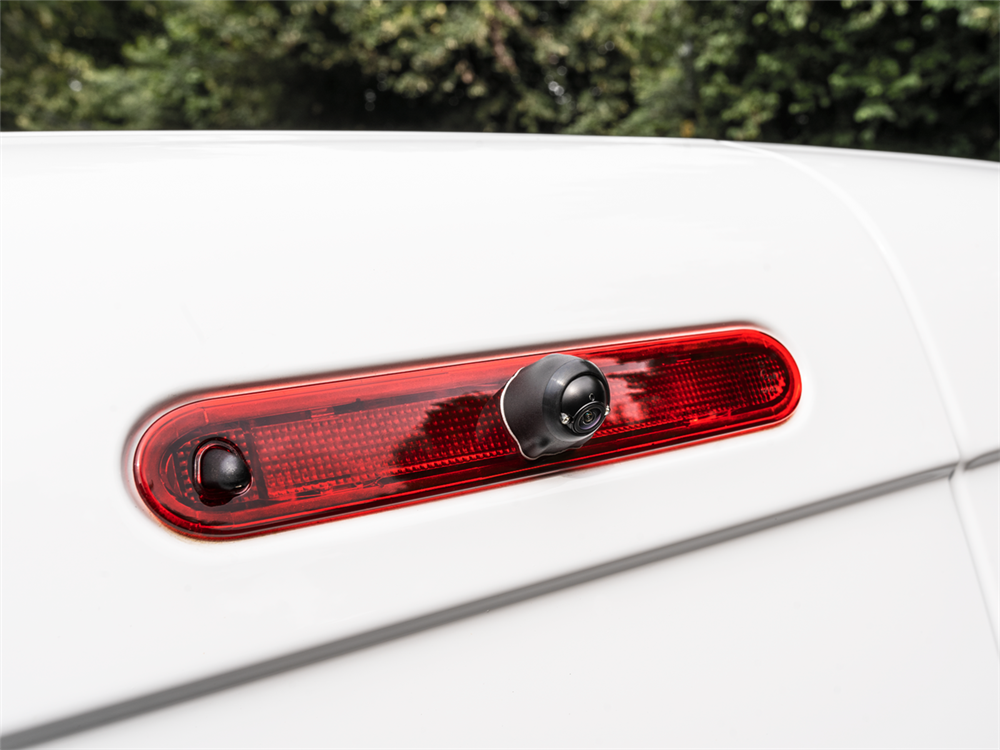

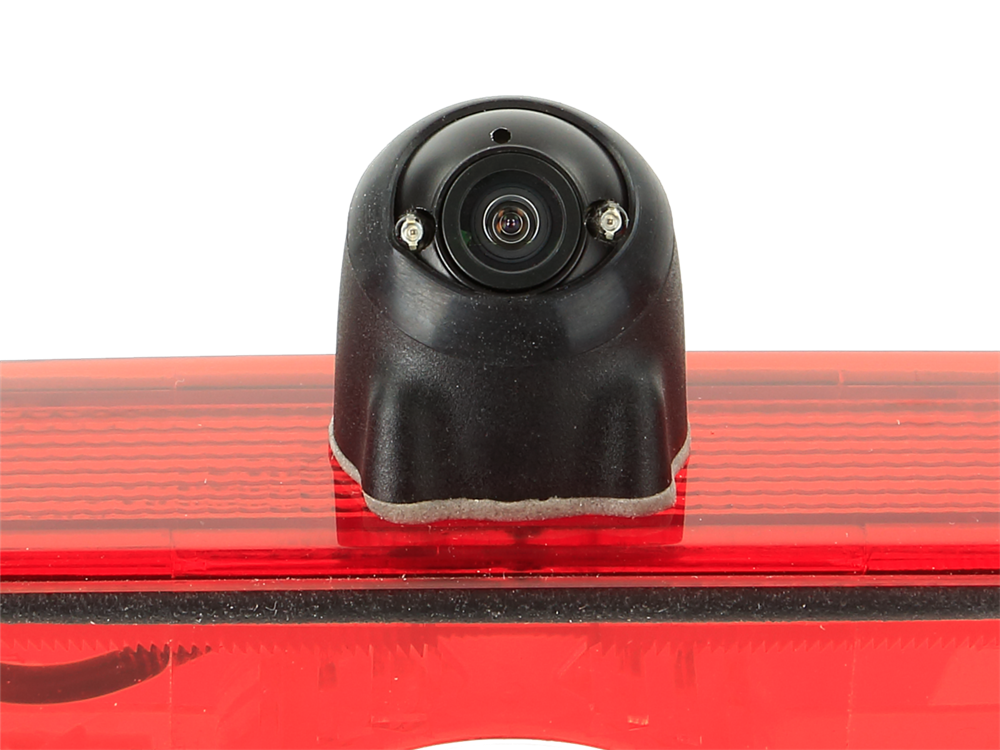

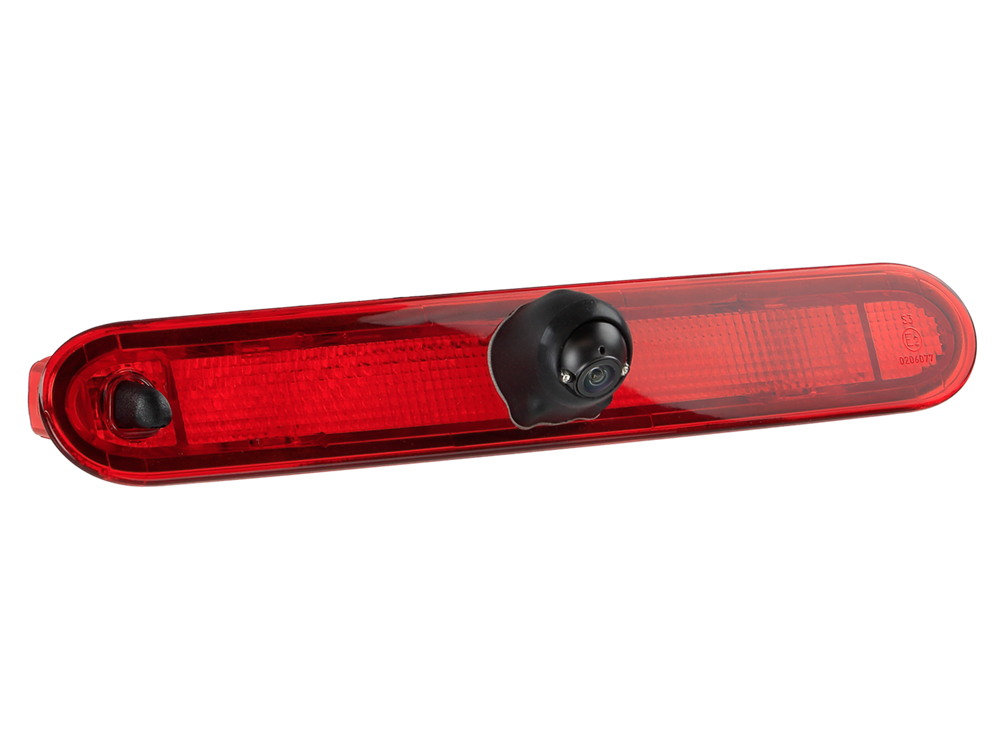

to replace the OEM 3rd brake light
with guiding lines, night view and adjustable view angle

Note:

all acv cameras are suitable for +12V continuous operation

camera operating voltage: +3V
connection without voltage converter damages the camera

vehicles with single back door
vehicles with double rear door

connection:
red +12V switched load-stable (fused)
black ground car body direct

Product characteristic:

Design: plastic with metal bracket
Color: black
Extras: guiding lines via jumper / night view
Image sensor: 1/4" CMOS
TV system: NTSC
Effective pixels: 720 x 576
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with activ night view
Resolution: 420 TV lines
Lens angle: 140°
View angle: horizontal 115° vertical 80° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: 12Volt DC + 10%
Current consumption: 60mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C
Measurements: diameter 24mm

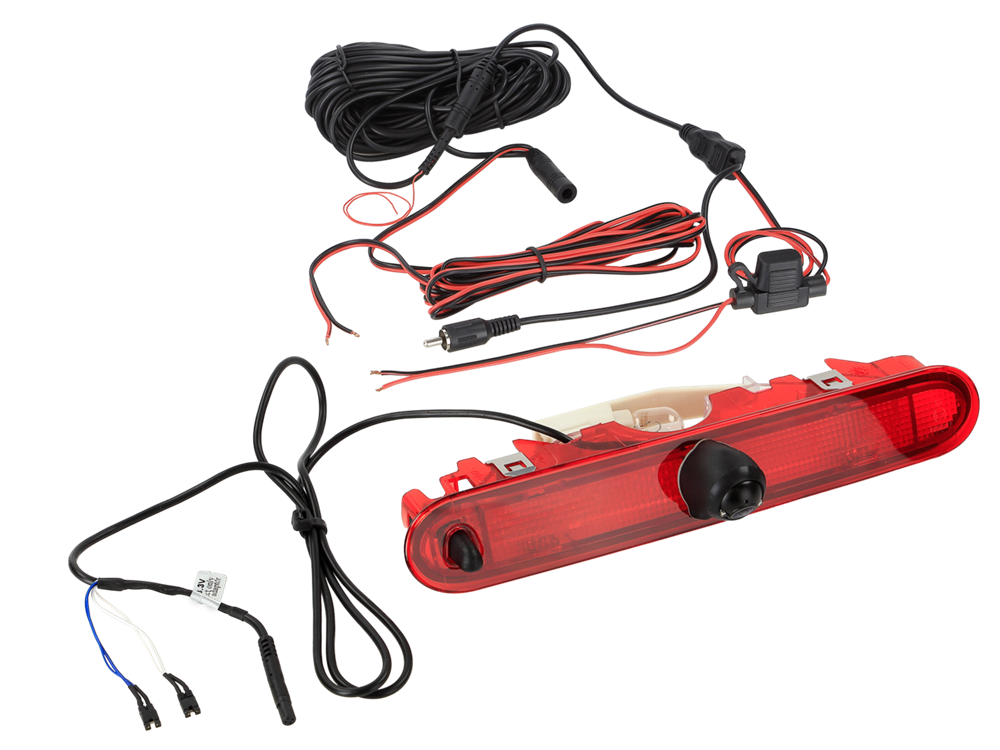

Pigtail at the camera:

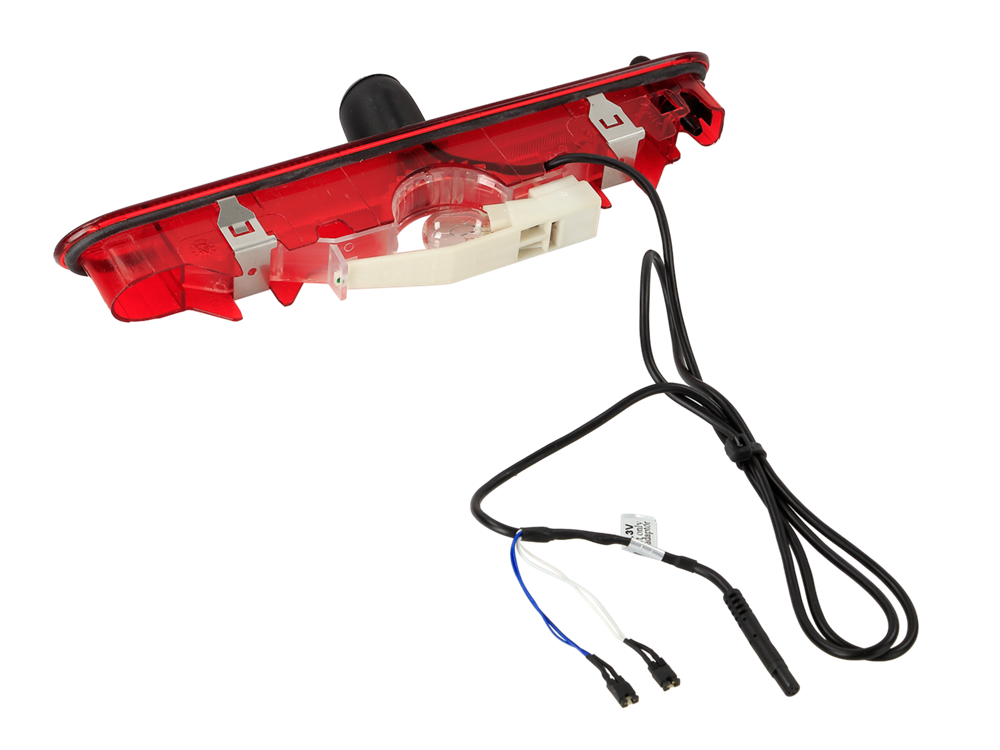

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 2 jumpers

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light
and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
