Varenr.: Z-N965
På lager hos vores leverandør
Download manual

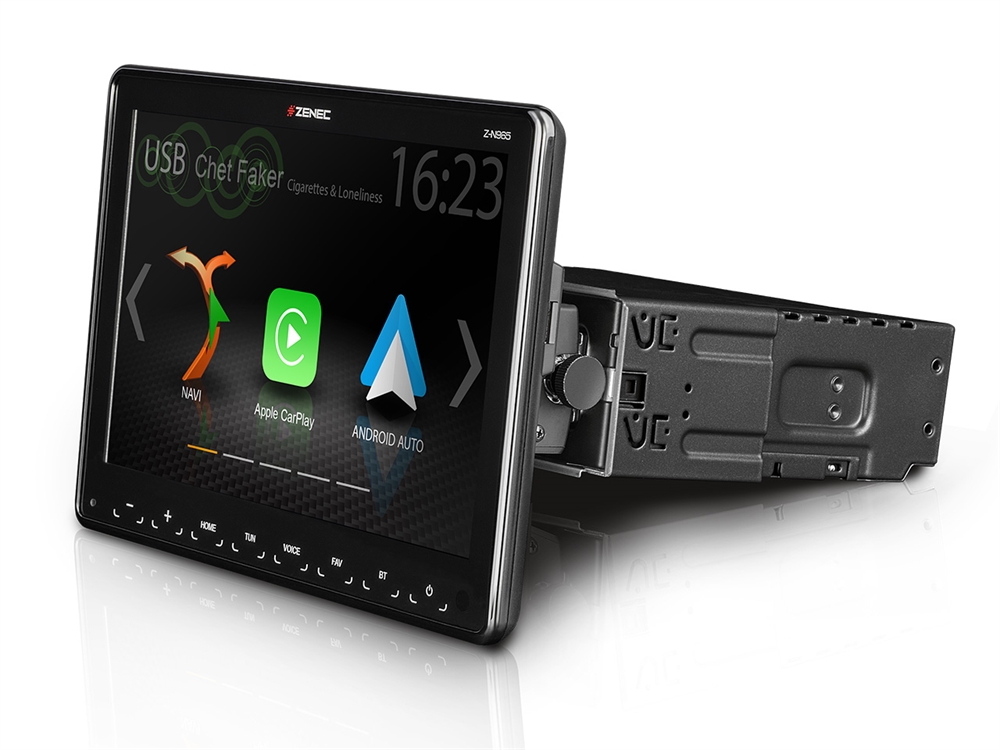

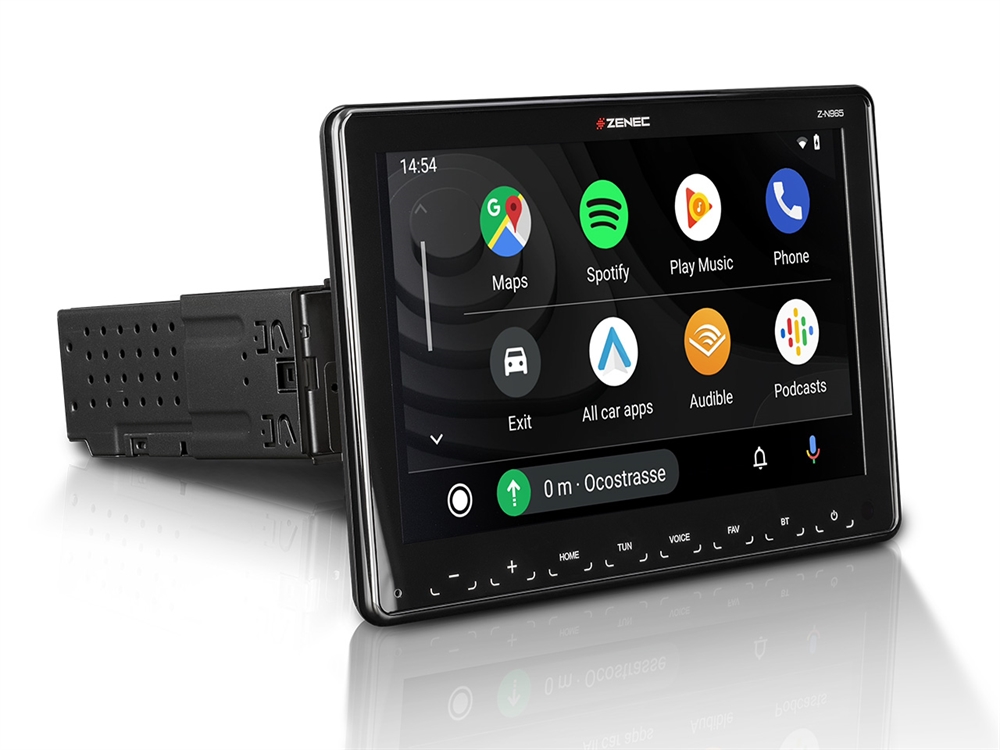

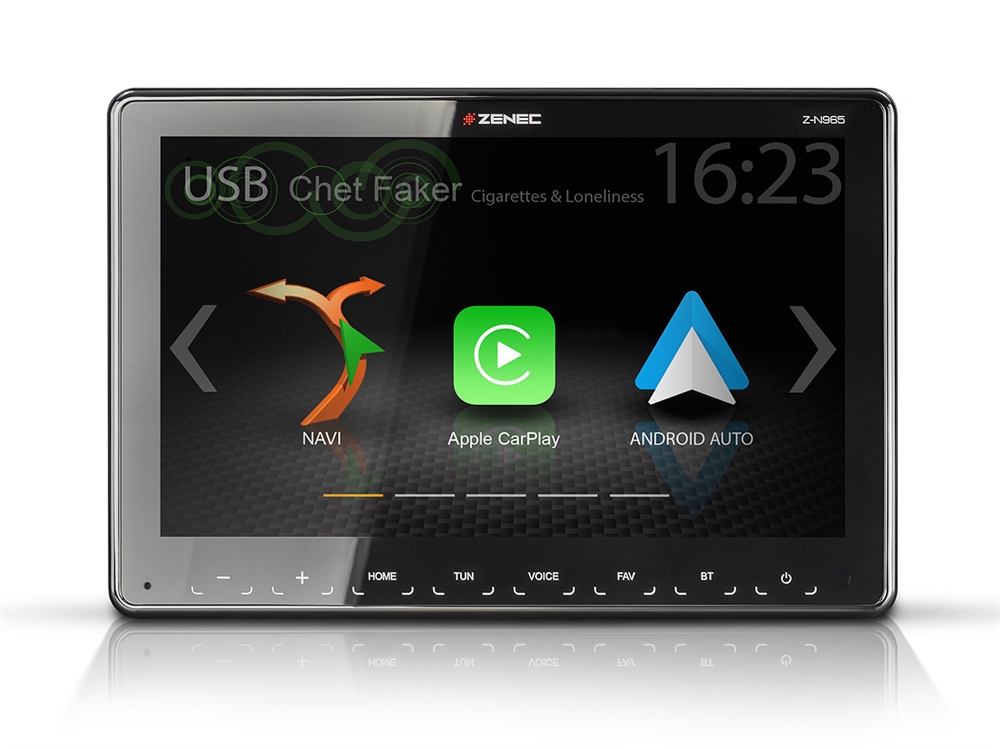

Z-N965 – Infotainer with 9“ / 22,9 cm Display

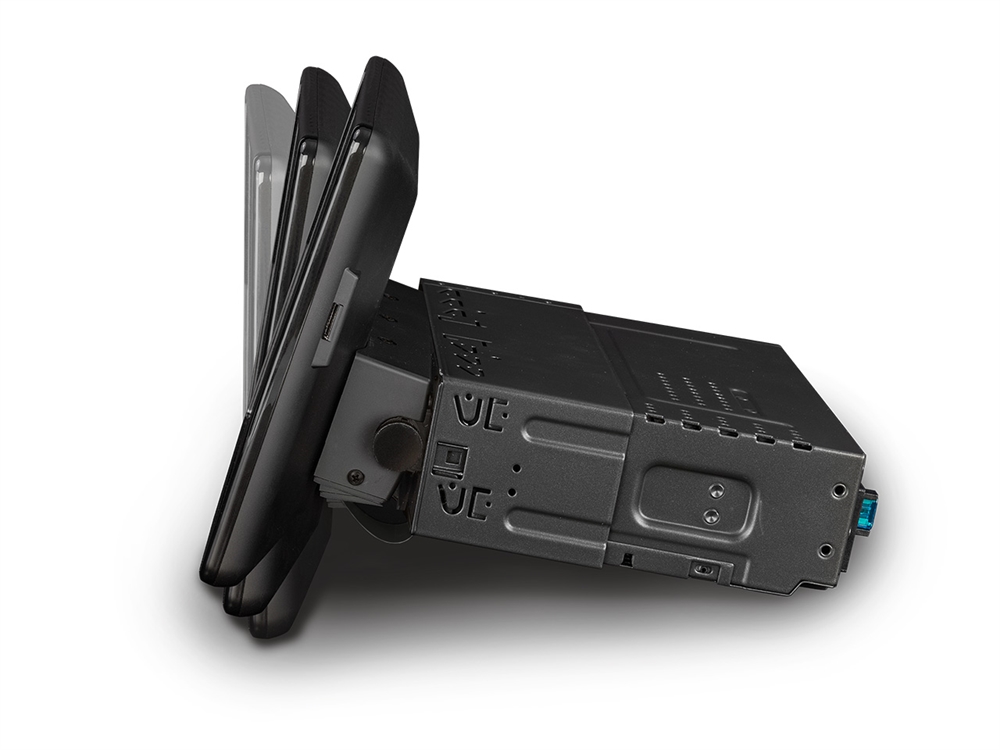

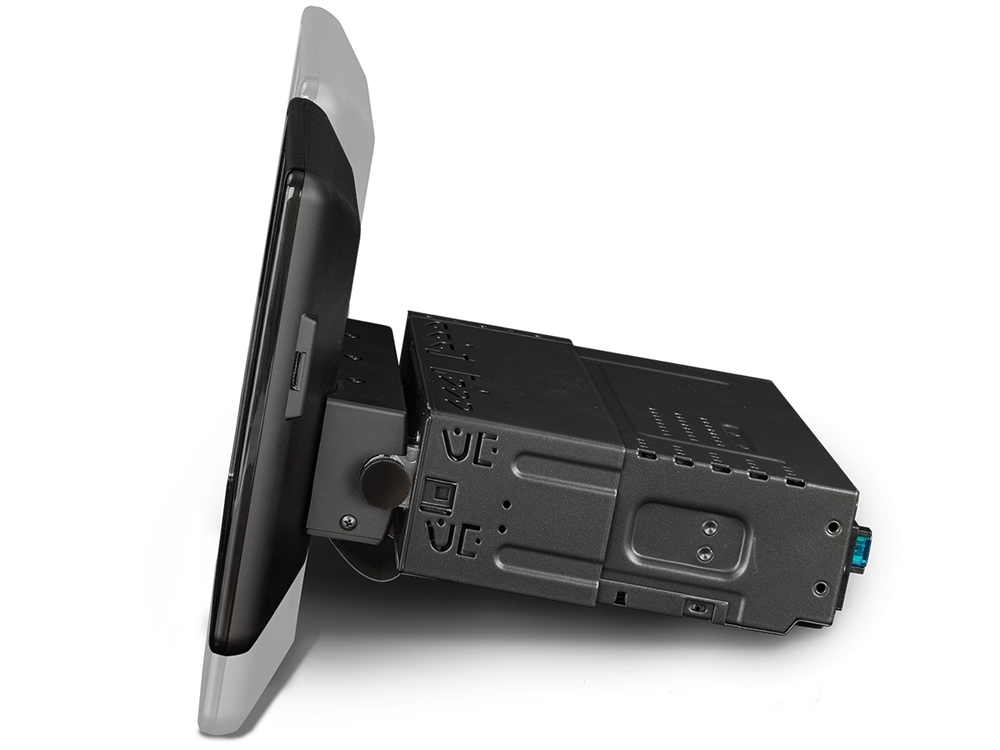

The ZENEC Z-N965 is a top-class DAB+ infotainer for vehicles with 1-DIN mounting slot provision. The display panel features tilt angle and relative height adjustment for best position alignment in the vehicle cockpit. The capacitive, touch-sensitive 9“/22.9 cm TFT display with glass surface provides high-definition images (1024 x 600 p) for finely resolved, crisp images.
The Z-N965 provides for an easy and totally safe smartphone use in the car. The USB(1) port on the device lets you dock your phone directly to the infotainer – the Z-N965 is Apple CarPlay and Google Android AutoTM certified. Making phone calls, use Google or Apple maps to find a destination, play music and send or receive messages is true mobile convenience where the choice is yours: control and operate apps either via device touchscreen or with the Apple Siri or Google’s voice assistants.
The Z-N965 includes a DAB+ twin-tuner system giving you the full range of the digital broadcasting standard, including various comfort functionalities such as MOT slideshow, DLS-text, DAB<>FM/DAB<>DAB Service-Following and dynamic station list.
The up-to-date 4.2 Bluetooth module features comfortable hands-free functions with optimized operation and high quality.
9“ display Infotainer, upgradable with navigation function*1
Touch sensitive, capacitive 9”/22.9 cm LCD-TFT display (1024 x 600 pixels) with glass surface and adjustable display*2
OSD menu in 15 different EU languages
DAB+ twin-tuner with dynamic station list, DAB<>FM and DAB<>DAB Service Following, MOT slideshow and DLS-text
FM RDS radio with 18 station presets
Google Android AutoTM
Apple CarPlay
Bluetooth 4.2 hands-free module with A2DP music streaming
Control of up to three cameras systems with auto switching, adjustable grid lines
CAM sensor key for direct camera control
SP-REM remote control App (iOS / Android) for smartphone operation of audio playback functions
2 x IR remote control incl. Maxi-remote
4 x 50 W amplifier
FSC Bluetooth 4.2 hands-free module
Import of 1,000 phone book entries with 3 phone numbers each
Memory-resident phonebook with direct access to sync’d contacts
Fast dial function for contact favorites
Phonebook contact search function via keypad for given and last name
iD3-Tag display in A2DP mode (artist, title, album)
Internal Bluetooth microphone, additional input for external microphone*3
DAB+ receiver with twin tuner for DAB+ and TPEG
FM RDS radio with 18 station presets and DSP noise masking
USB(1) 2.0 port on device backside for CarPlay and Android AutoTM
USB(2) 2.0 port on device backside for A/V file*4 playback from USB memory device
5-CH time alignment by audio DSP (0 - 10 mS delay)
Graphical 10-band equalizer with 7 EQ-presets
Made for iPod/iPhone
High- and low-pass x-over for Front/Rear/Sub with 12 dB/oct. slopes
HDMI input for compatible accessories and mobile devices
24 Bit D/A converter
4.2 RCA line pre-out (3 V)
3 x RCA input for camera video signal (CVBS) with switched power supply and microphone-input (Cam1)
1 x DIN FM antenna input socket
1 x SMB DAB antenna input socket with 12 V phantom power supply
1 x USB(1) 2.0 port with ~1,000 mA charging current for Apple iOS and Android devices
1 x USB(2) 2.0 port for A/V file playback (~1,000 mA battery recharging current)
1 x RCA A/V input for 2-CH audio and video signal (CVBS)
1 x RCA A/V M-Zone output for 2-CH audio and video signal (CVBS)
1 x input for external Bluetooth microphone
Input for the connection of the programmable SWC interface
1 x IR-in for external CAN/SWC interface
1 x HDMI port
