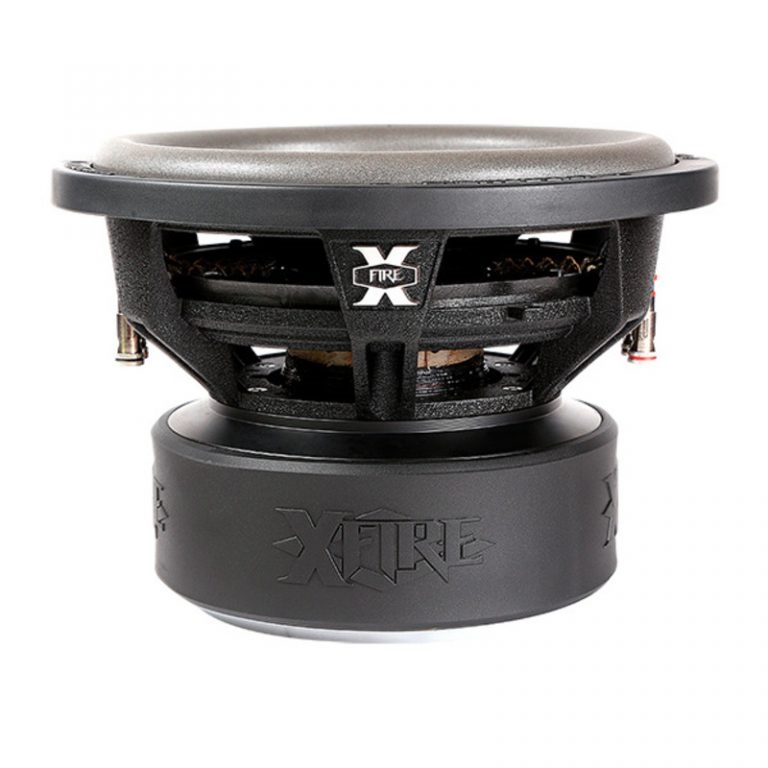

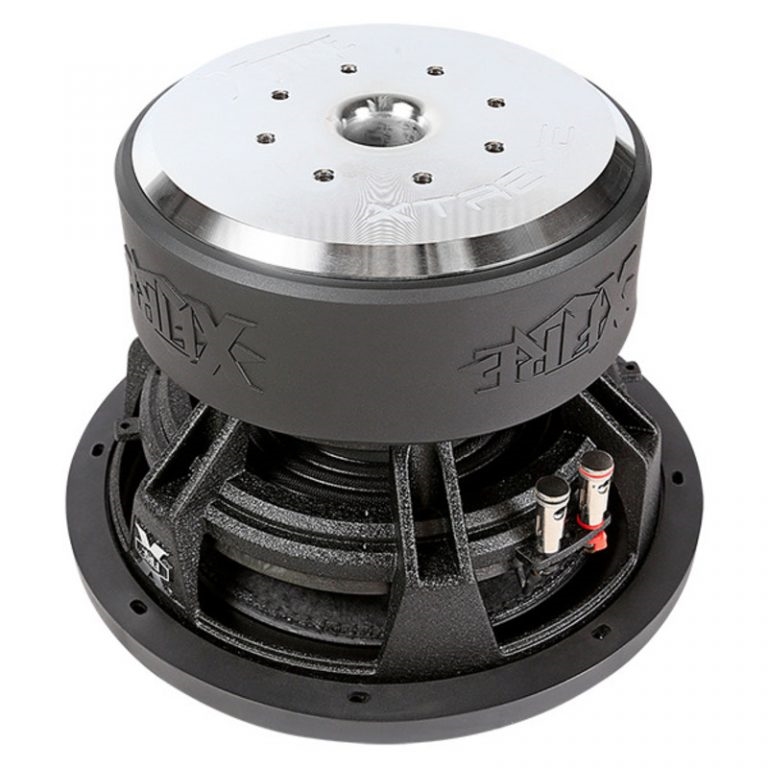

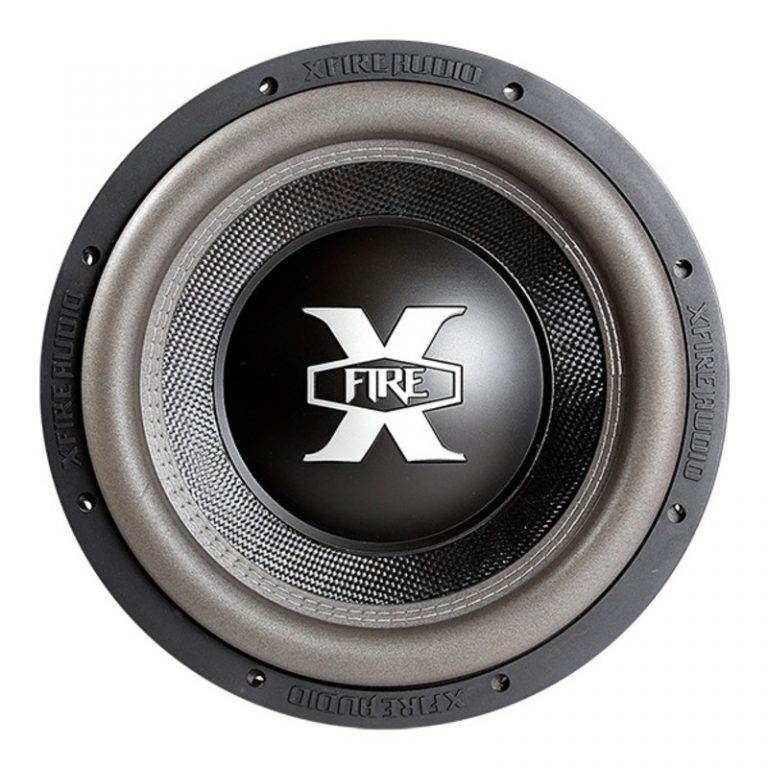

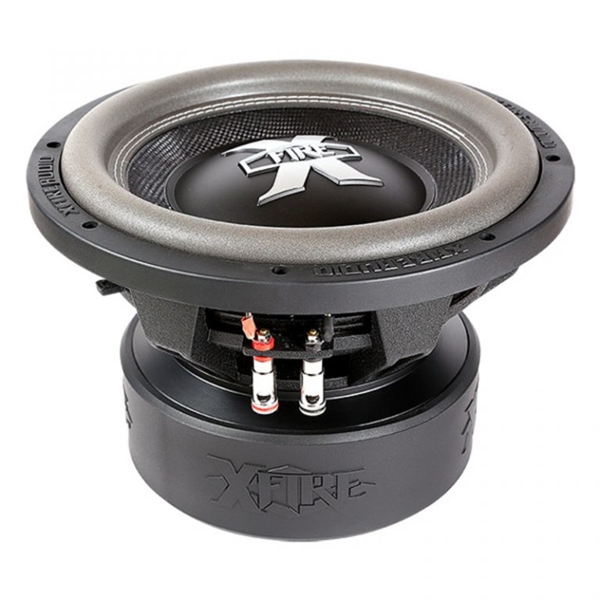

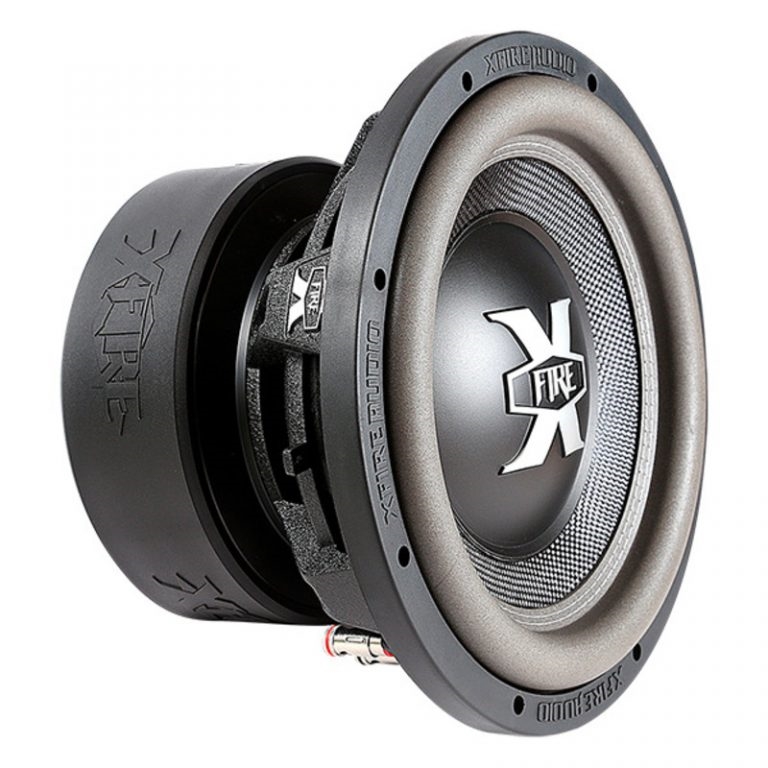

XFIRE XTREME XMF-121 12" dual 1Ω Subwoofer

XMF-121 SUBWOOFER
XMF XTREME series subwoofers are designed for high output systems and have suspensions optimized for extreme excursion in ported enclosures.

In this manual there are two, single subwoofer vented enclosure designs. One is a minimum recommended enclosure option while the other is for optimal design for the best possible sound.

In addition there is an optimum dual XMF XTREME series subwoofer vented enclosure design.

All dimensions given are internal dimensions,XFIRE AUDIO advizes to use minimum 0.75’’(18mm) thick panels for all the sides and 1.5’’(36mm) thick front panel.
Power Handling : 7500W Max
Power Handling : 2500W RMS
Impedance : 2x 1Ω
Sensitivity : 87.4dB/2.83V/1m
Fs : 36.4Hz
Frequency Response : 22 – 250Hz
Excursion : 30mm (1-way)
Cutout Diameter : 11.2″ (284mm)
Mounting Depth : 7.9″ (200mm)
Recommended Ported Enclosure Size : 1.75 – 2.25 cu.ft. (49.5 – 63.7L)
