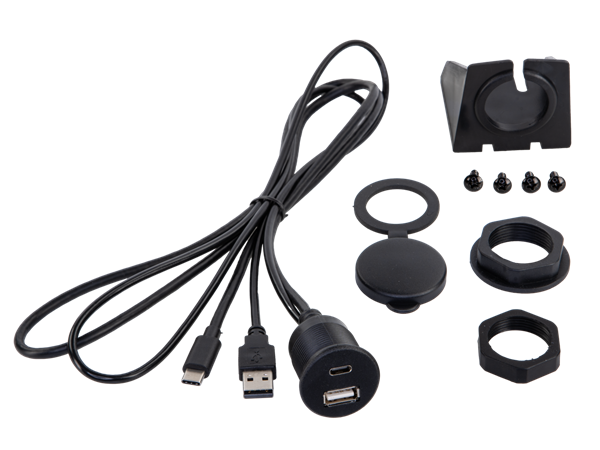

USB/USB-C INDBYGNING/PÅBYGNING

Technical data:

Connections input:
1 x USB-A
1 x USB-C

Connections aftermarket HU:
1 x USB-A / L = 100 cm +/-
1 x USB-C / L = 100 cm +/-

Dimensions:

Built-in housing:
installation depth: 45,5 mm plus cable bend
outer diameter: 32,5 mm
installation diameter: 28,0 mm
drill holeole diameter: Ø 28,0 mm

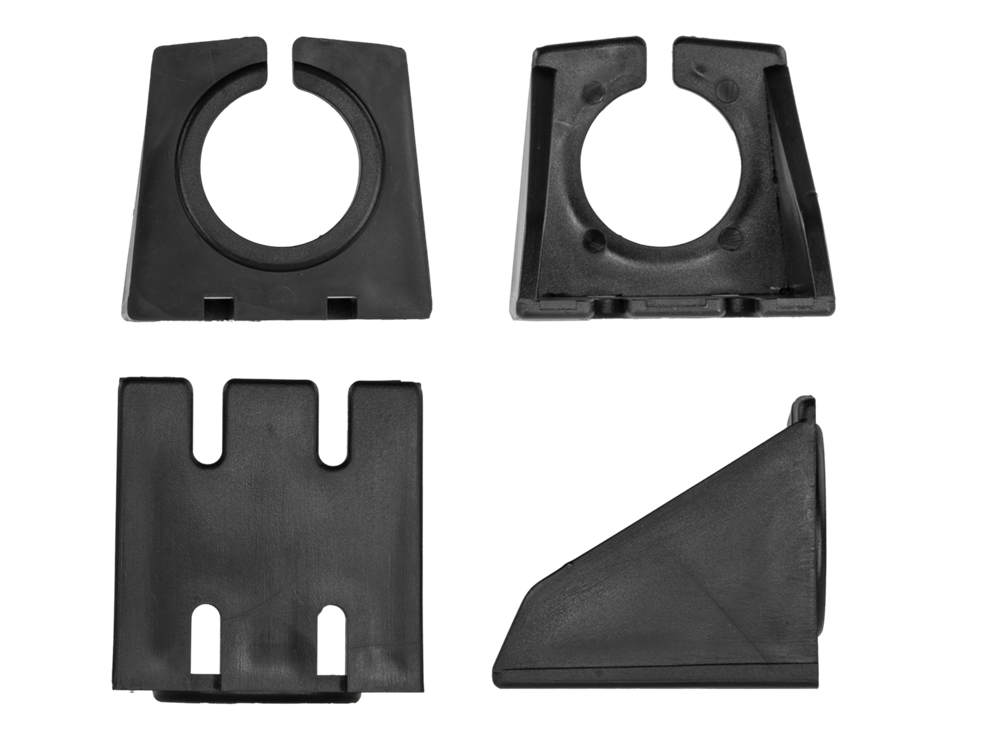

Dash-mount housing:
D = 55,6 mm / W = 53,5 mm / H = 50,0 mm

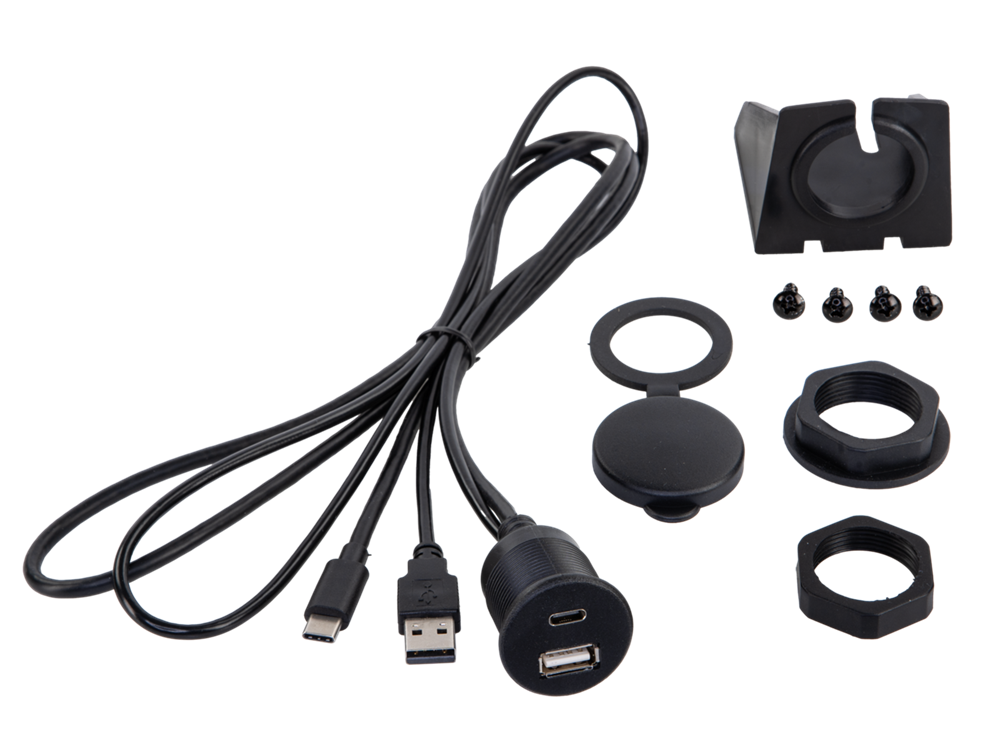

Scope of delivery:
cover
dash-mount housing
mounting nut dash-mount housing
mounting nut installation
fixing screws dash-mount housing
