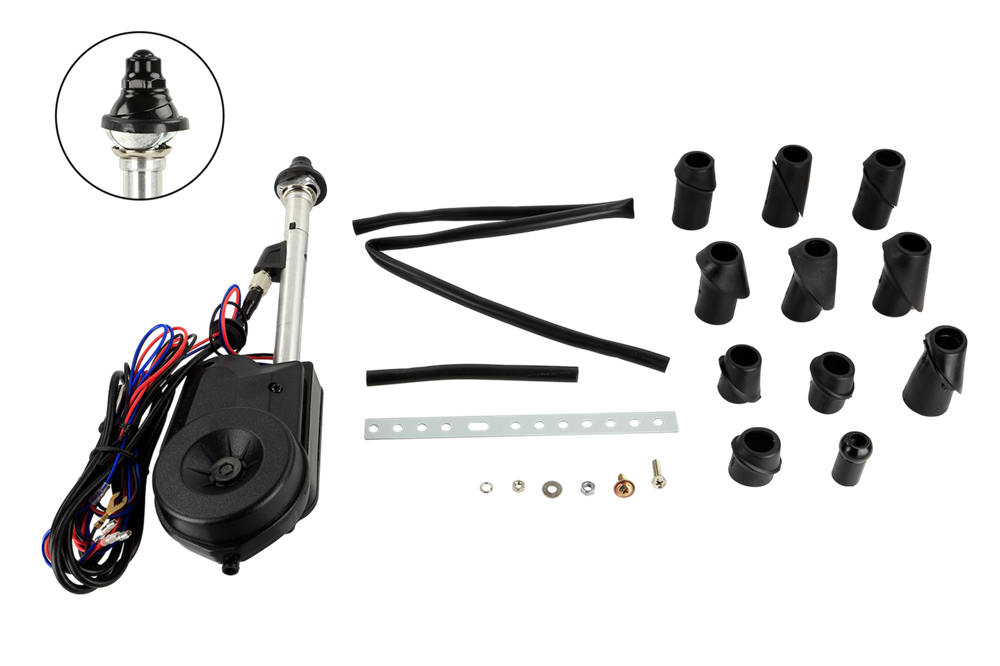

UNIVERSAL AM/FM MOTOR ANTENNE SORT

Telescope antenna /Automatic antenna

acv

Style: BLACK

Note:

Check installation dimension and ratio before installation.

vehicles with an OEM antenna the hole may have to be expanded*
vehicles with antenna preparation at factory installation hole 14,5 mm*
vehicles with mounting bracket**

universal mounting

Connection:
red: +12V current power (clamp 30) fused
black: GND (clamp 31)
blue: +12V antenna remote

Vehicle application:

Audi
Audi 50 (86) 08/1974 - 08/1978*
Audi 80 (B1/80) 06/1972 - 08/1976*
Audi 80 (B1/82) 08/1976 - 08/1978*
Audi 80 (B2/81/85) 09/1978 - 12/1987*
Audi 90 (B2/81/85) 11/1984 - 10/1986*
Audi 90 (B3/89) 05/1987 - 12/1991*
Audi 100 Sedan (C3/44) 10/1982 - 12/1990*
Audi 100 Sedan (C4) 12/1990 - 07/1994*
Audi 200 Sedan (C3) 09/1983 - 01/1988*
Audi A6 Sedan (C4/4A) 06/1994 - 03/1997*

BMW
BMW 3er (E30) 12/1982 - 06/1994*
BMW 3er Sedan 4 Door (E36) 09/1990 - 08/2000*
BMW 5er Sedan (E28) 06/1981 - 12/1987*
BMW 5er Sedan (E34) 01/1988 - 09/1995*
BMW 7er Sedan (E23) 05/1977 - 12/1986*

Landrover
Landrover Defender (LD) 09/1990 - 08/2016*

Mercedes
Merdedes series Strich-Acht (W114/W115) 08/1973 - 02/1976*
Mercedes series 190 (W201) 09/1988 - 06/1993**
Mercedes series 123 Coupé (C123) 06/1977 - 11/1985**
Mercedes series 123 Sedan (W123) 08/1977 - 06/1984*
Mercedes series 124 (124) 01/1985 - 07/1993**
Mercedes S-Klasse Coupé (C126) 126 09/1981 - 12/1991*
Merdeses S-Klasse Sedan (W126) 09/1979 - 06/1991*

Opel
Opel Ascona (C1) 08/1981 - 10/1984*
Opel Ascona (C2) 10/1984 - 09/1996*
Opel Ascona (C3) 09/1986 - 12/1998*
Opel Astra (F) 08/1991 - 03/1998*/**/***
Opel Kadett (D) 04/1982 - 09/1984*
Opel Kadett (E) 09/1984 - 02/1999*
Opel Manta (B) 08/1975 - 09/1988*
Opel Monza (A1) 04/1978 - 11/1982*
Opel Monza (A2) 06/1983 - 12/1986*
Opel Omega Sedan (A) 10/1986 - 03/1994*
Opel Rekord (E1) 08/1977 - 11/1982*
Opel Rekord (E2) 11/1982 - 10/1986*
Opel Senator (A1/A2) 05/1981 - 12/1996
Opel Senator (B) 08/1990 - 05/1993**
Opel Vectra Limousine (A) 10/1988 - 12/1995**

Saab
Saab 9000 (CC/CD/CS) 1988 - 1998*

Seat
Seat Ibiza (021A) 04/1985 - 11/1993*
Seat Toledo (1L) 09/1991 - 02/1996*

Skoda
Skoda Favorit (781) 06/1989 -03/1995*
Skoda Forman (785) 09/1991 - 09/1995*

VW
VW Derby (86/86C) 01/1977 - 01/1985*
VW Golf I (17) 05/1974 - 08/1983*
VW Golf II (19E) 08/1983 - 08/1987*
VW Golf III (1H) 08/1987 - 02/1998**/***
VW Jetta I (16) 11/1979 - 01/1984*
VW Jetta II (16E/19E) 02/1984 - 12/1991*
VW Passat I (B1) 08/1973 - 10/1980*
VW Passat II (B2) 10/1980 - 03/1988*
VW Polo I (86) 03/1976 - 06/1981*
VW Polo II (86C) 07/1981 - 06/1990*
VW Santana (B2) 03/1983 - 12/1994*
VW Scirocco (53) 03/1974 - 02/1981*

***Estate vehicle not compartible
****Opel Kadett (E) GSI 16V not compartible

Reception mode:
AM/FM

Installation:
fender / pillar universal
fender / pillar vehicle specific
fender / pillar vehicle specific with mounting brackets
drill hole: Ø 14,5 mm
inclination 0° - 30°

Dimensions:
antenna mounting length: 302 mm
antenna socket: L 145 mm / H 90 mm / D 58 mm
antenna socket: Ø 35 mm
ball head: Ø 18 mm / M12 / thread pitch 1,5
rod length: 81 cm +/-

Connector:
AM/FM: BP(m) screw / cable: L = 1,5m / 3C-2V / 75Ohm BP(f) > DIN(m)

Frequency range:
AM 520 - 1602 Khz
FM 87,8 - 108 Mhz

Power supply:
Motor: +12V

Power consumption:
0,8A max.
