Varenr.: 340015-2-0-p
På lager hos os

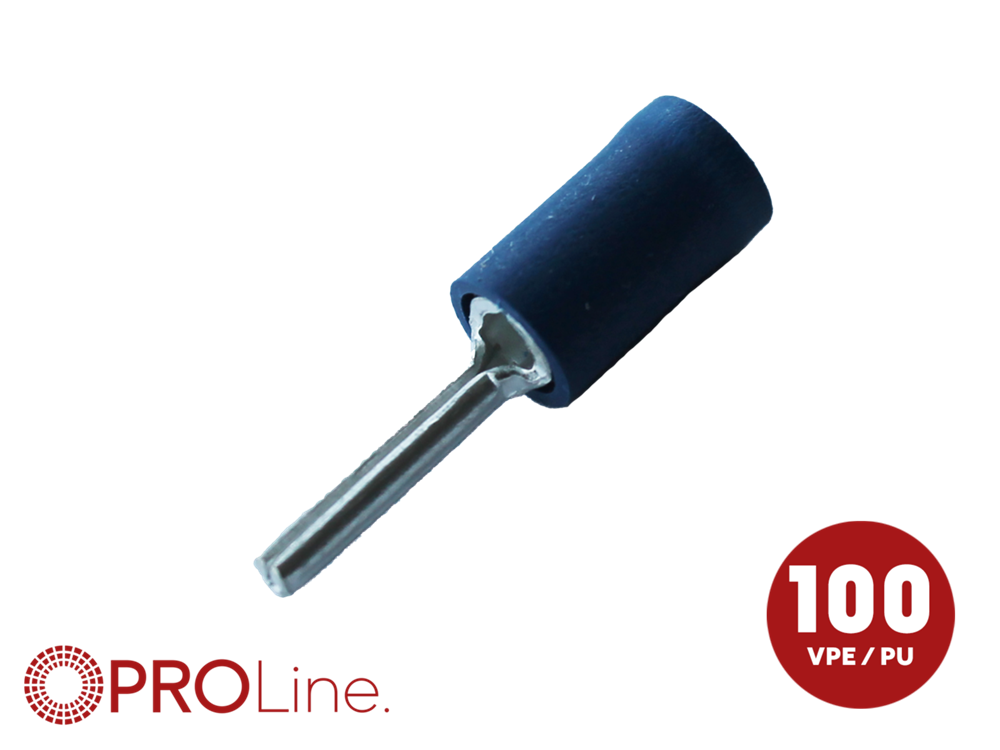

Pin terminal blue
Vinyl PVC pin terminal 1,5 mm² - 2,5 mm² copper electro tin plated
Use case:
cable diameter: 1,5 mm² - 2,5 mm²
cable diameter: 22 - 16 AWG
Technical data:
length: 22,8 mm
length pin: 12,0 mm
diameter pin: 1,9 mm
diameter cable entry: 5,0 mm² max.
diameter strand: 2,3 mm² max.
material: copper electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C max.
electrical current: 600V max.
electrical rating: 27A max.
REACH and RoHS compliant
Content:
100 pieces
