Varenr.: 34125-48
På lager hos os

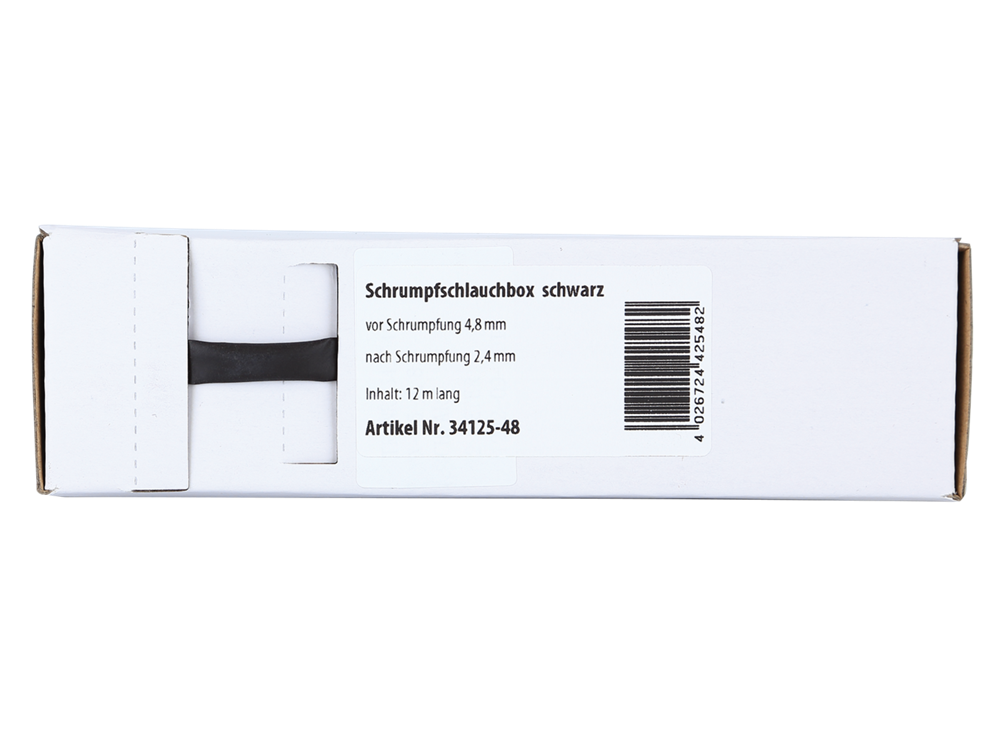

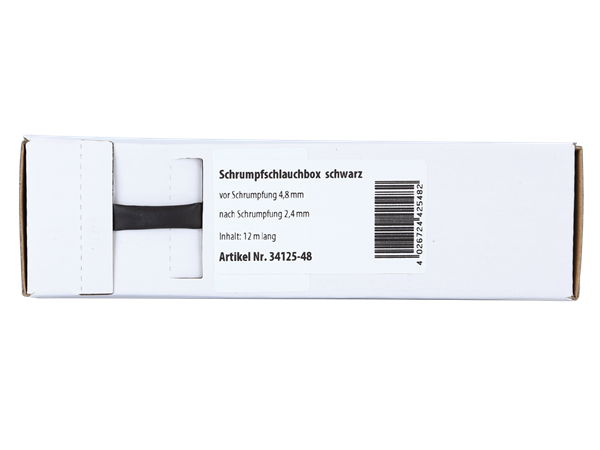

Heat shrink tube
Inside Ø as supplied: 4.80 mm
Inside Ø after recovery: 2.40 mm
Wall thickness after recovery: 0.50 mm
Content: 12 m
Color: black
Product details:
Material: thin wall cross linked polyolefin
Working temperature: -55°C to +125°C
Shrink ratio: 2:1
Standard: UL224 VW-1 125°C 600 V
Approvals: UL, CSA
Tensile Strength: ASTM D 2671 (10,4 MPa)
Elongation: ASTM D 2671 (200%)
Tensile Strength after heat aging: UL 224 158°C x 168 Std. (>= 7,3)
Heat resistance: ul 224 250°C x 4 Std.
Elongation after aging: ul 224 158°C x 168 Std. (>=100%)
Dielectric strength: iec 243 (>= 15kV/mm)
Volume resistivity: iec 93 (>= 1x10/14 Ohm.cm
Copper resistance: ul 224 158°C x 168 Std.
Copper corrosion: ul 224 158°C x 168 Std.
