Varenr.: 340025-2-5-p
På lager hos vores leverandør

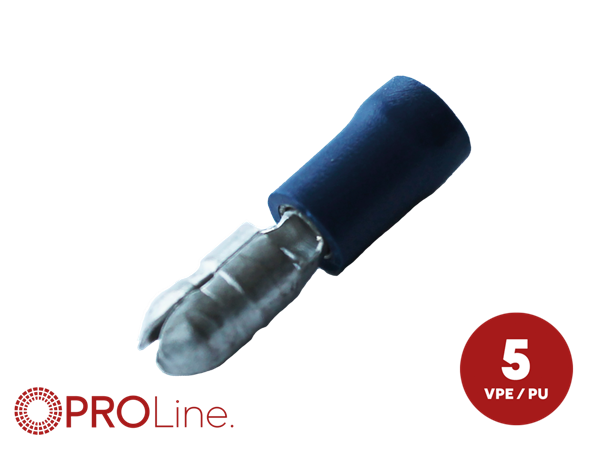

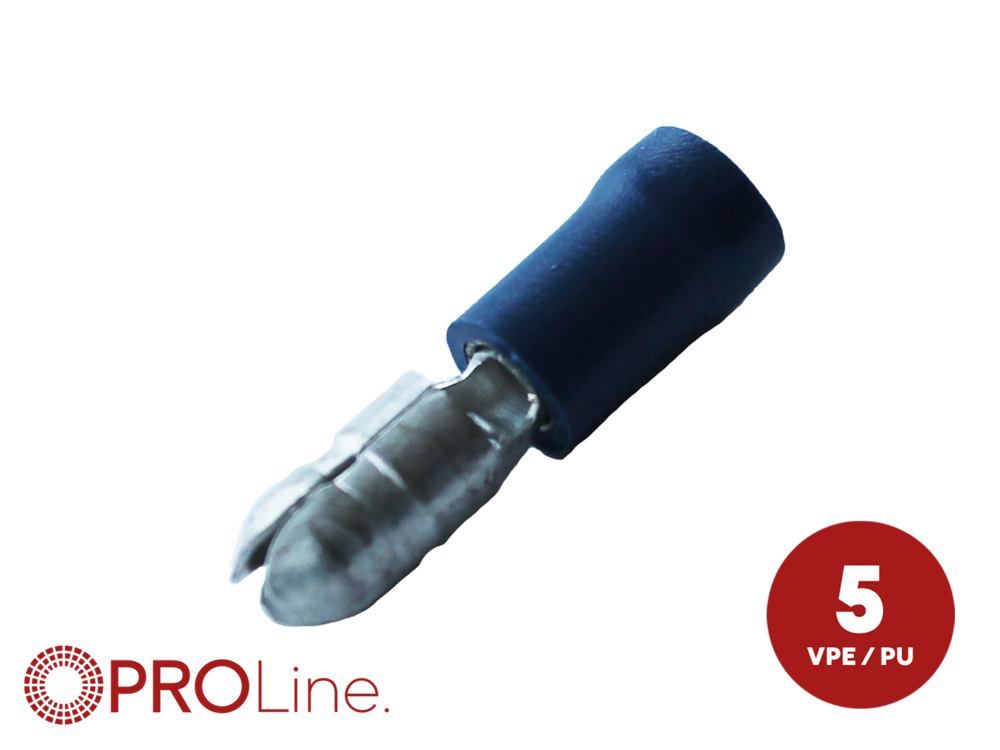

male bullet disconnector(m) 1,5 mm² - 2,5 mm² / 5,0 mm brass electro tin plated
cable diameter: 1,5 mm² - 2,5 mm²
cable diameter: 16 - 14 AWG
Technical data:
length: 22,5 mm
diameter plug: 5,0 mm
diameter cable entry: 4,7 mm² max.
diameter strand: 2,3 mm² max.
material: brass electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C max.
electrical current: 300V max.
electrical rating: 15A max.
REACH and RoHS compliant
UL-listed
Content:
5 pieces
