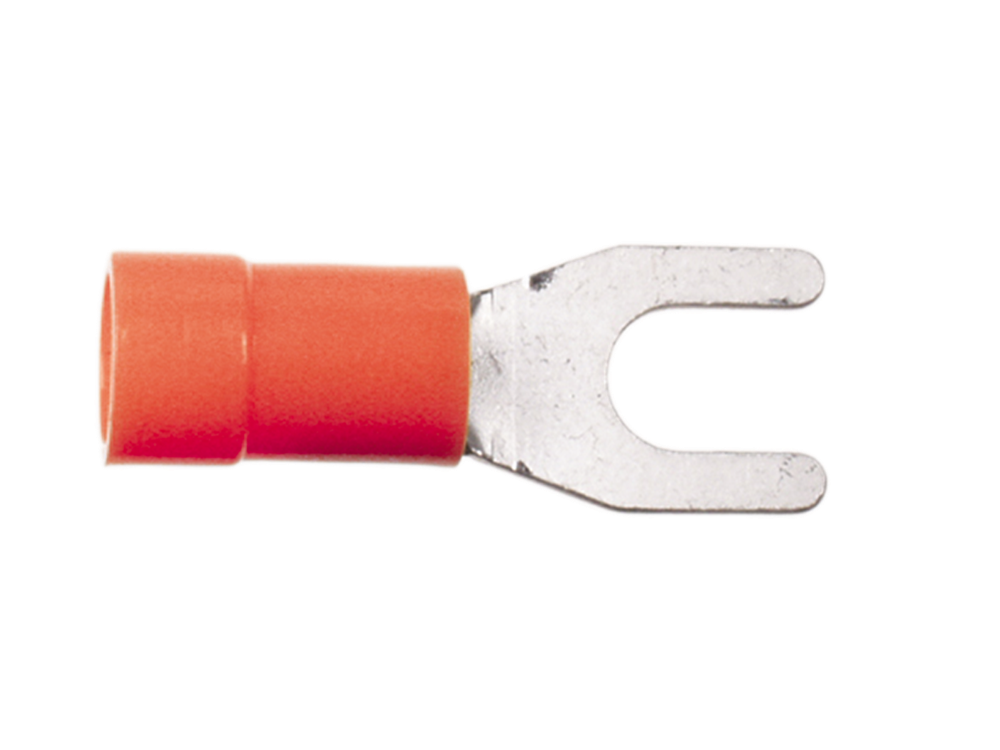

RØD 0,5 - 1,0mm² GAFFELSKO 100 STK.

Spade terminal red

Standard series

vinyl PVC spade terminal 0,5 mm² - 1,5 mm² / 4,4 mm² copper tin plated

Use case:

cable diameter: 0,5 mm² - 1,5 mm²
cable diameter: 22 - 16 AWG

Technical data:

opening: 4,4 mm
wide: 6,4 mm
strand diameter: 1,7 mm² max.
drop length: 5,5 mm

material: copper tin plated
insulation: vinyl PVC
operating temperature: 10 °C - 75 °C max.
electrical current: 600V max.
electrical rating: 19A max.

REACH and RoHS compliant

Content:

100 pieces
