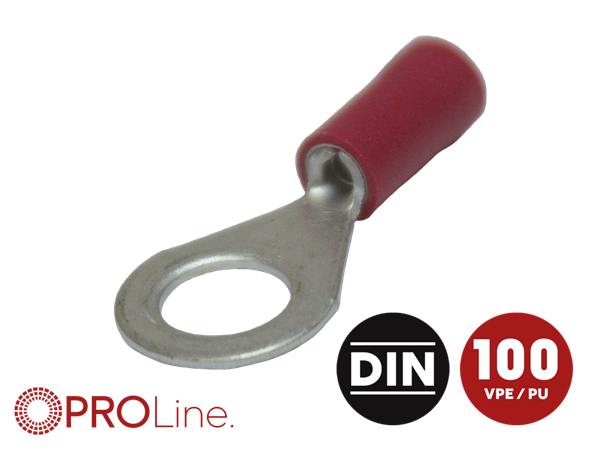

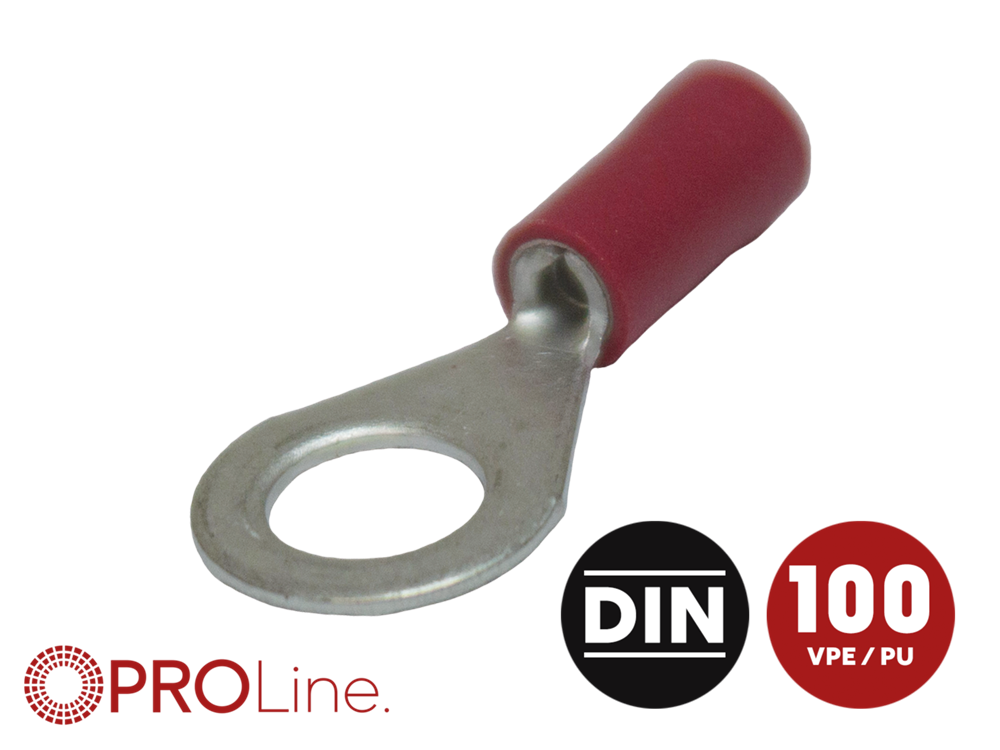

Varenr.: 346550-1-0-p
På lager hos vores leverandør
cable diameter: 0,5 mm² - 1,5 mm²
cable diameter: 22 - 16 AWG
Technical data:
DIN 46234
length: 25,5 mm
length to ring centre: 20,0 mm
ring opening: 6,5 mm
ring wide: 11,0 mm
diameter cable entry: 4,3 mm² max.
diameter strand: 1,7 mm² max.
material: copper electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 600V max.
electrical rating: 19A max.
REACH and RoHS compliant
Content:
100 pieces
