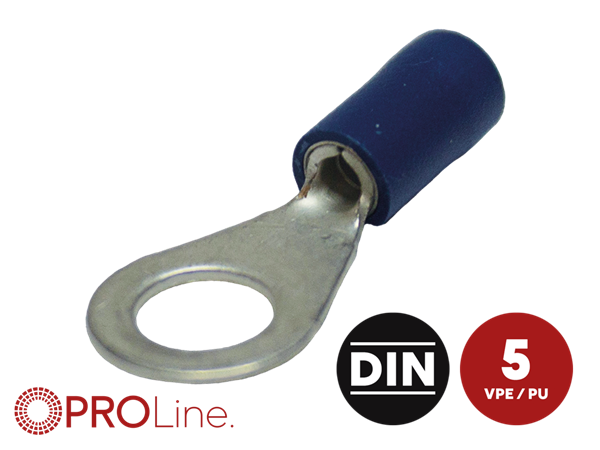

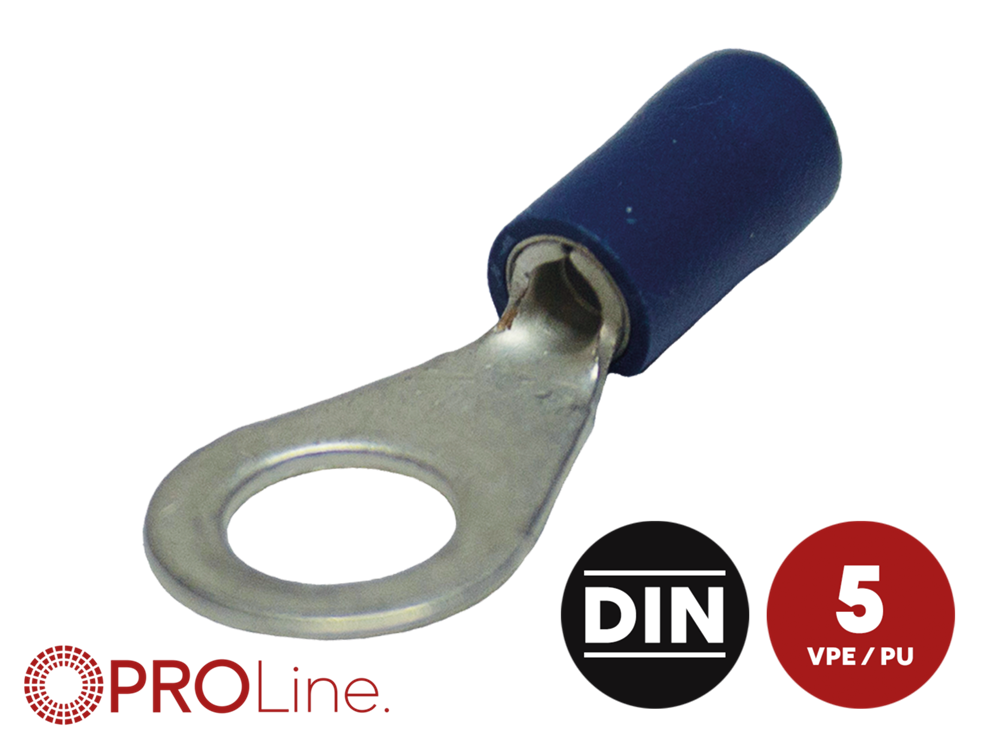

Varenr.: 346550-2-5-p
På lager hos os
cable diameter: 1,5 mm² - 2,5 mm²
cable diameter: 16 - 14 AWG
Technical data:
DIN 46234
length: 26,5 mm
length to ring centre: 21,0 mm
ring opening: 6,5 mm
ring wide: 11,0 mm
diameter cable entry: 5,0 mm² max.
diameter strand: 2,3 mm² max.
material: copper electro tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 600V max.
electrical rating: 27A max.
REACH and RoHS compliant
Content:
5 pieces
