Varenr.: 30.3510-03
På lager hos os

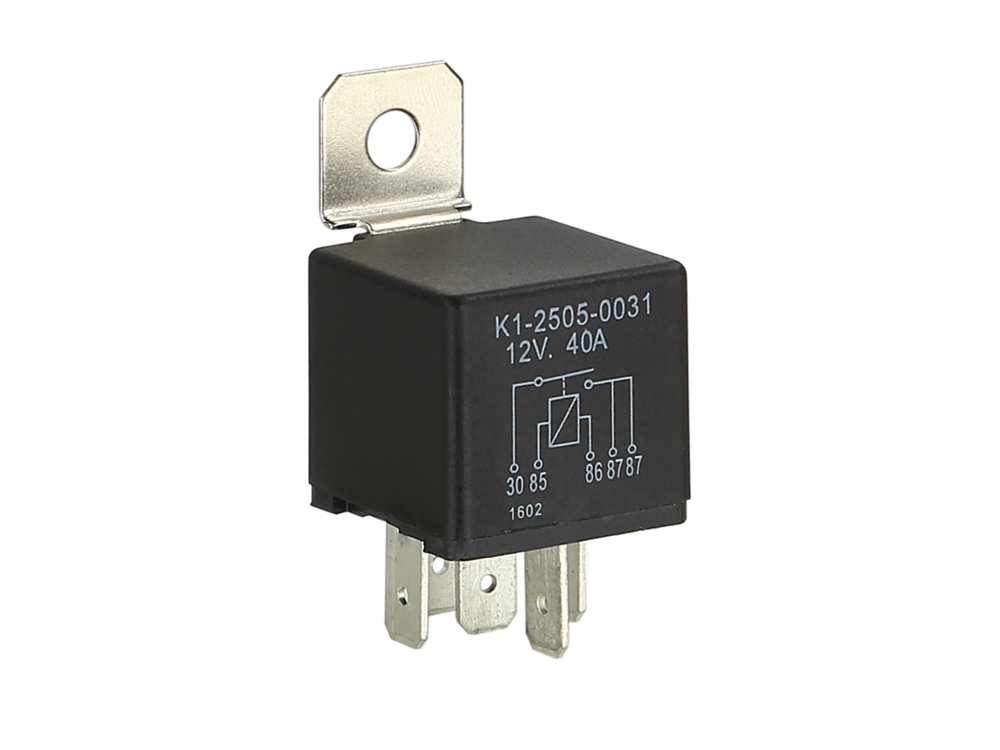

Relais close 12V /40A
mechanical swiching relay
In the control circuit, a thin wire insulated with lacquer is wound in a particularly large number of turns around an iron core as a magnetic switch.
Low currents in the control circuit are sufficient to move a spring-loaded contact and mechanically close the operating circuit.
Short circuits in one circuit do not affect the other circuit
Low-current signals are transferred to those with high current flow
Fast switching capacity possible through continuous checking of the operating current / tacking possible
Note:
connector relais: blade receptacle 6,3mm
Use case:
Switching small control currents to large operating currents
Separation of operating circuit /control circuit
Features:
Motor vehicle relay
coil voltage: 12 V dc
contact arrangement: 1-pin Changer
front panel fitting
Series VF4
switched voltage DC max. 14 V dc
current swiching: max. 40A
