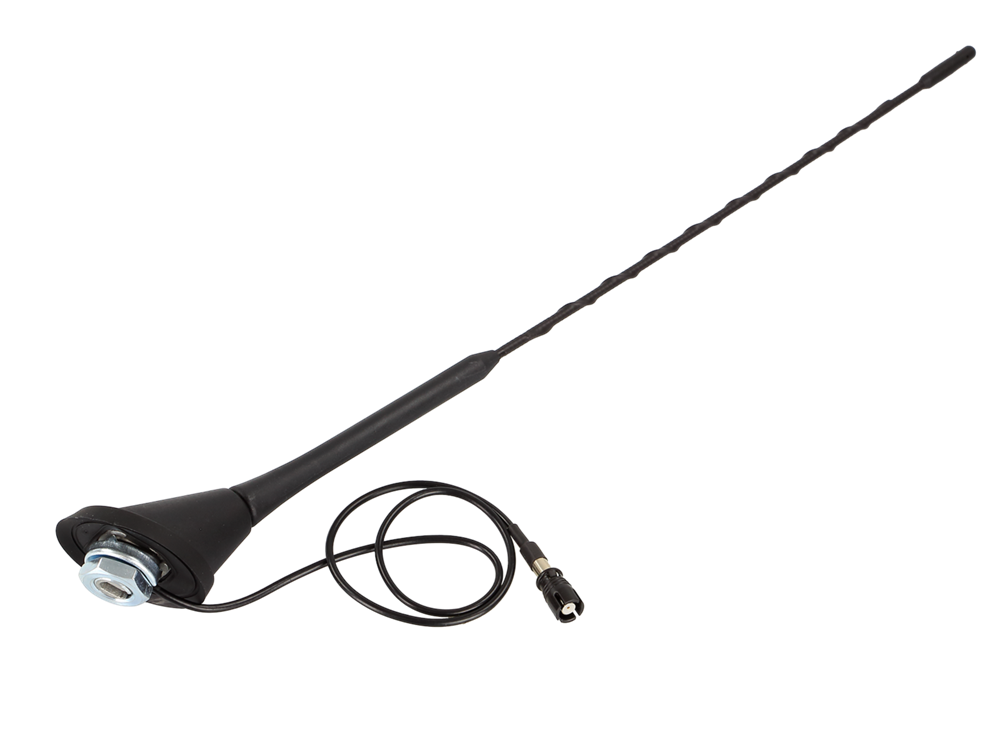

OEM OMBYTNING ANTENNE TIL AUDI,SEAT,SKODA,OPEL OG VW MED PHANTOM POWER

oem antenne til 16V (phantom system)
kabel længde ca 25 cm
hældning 60 grader

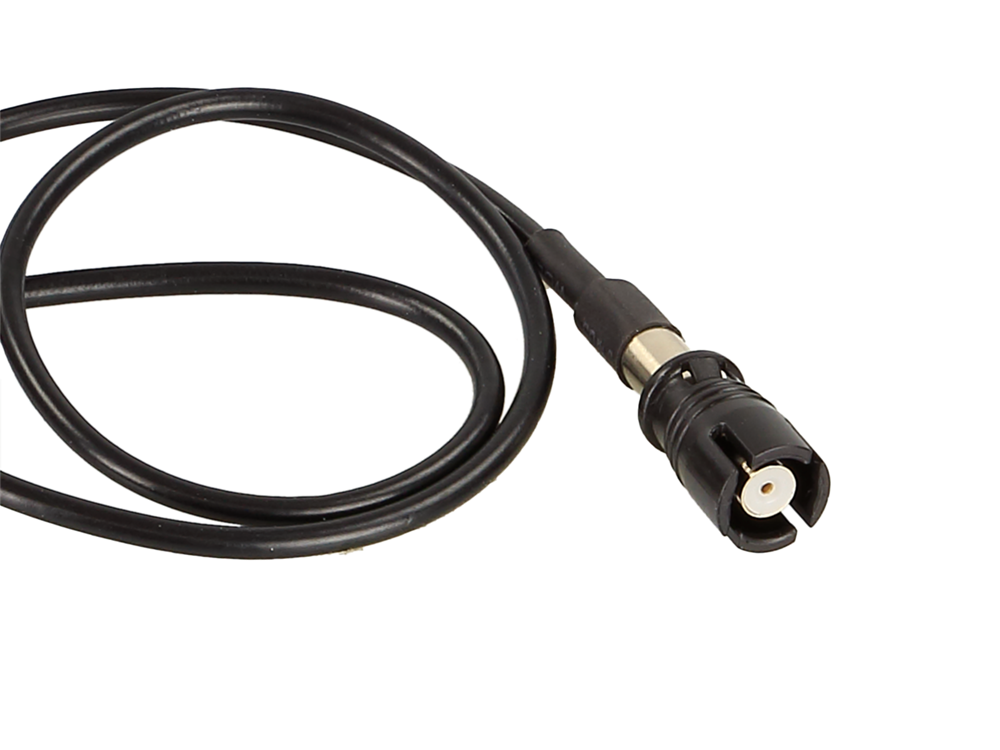

stik raku2 (hc97)

Roof antenna AM/FM

acv OEM Quality

Style 16V

Reception Mode:
AM/FM

Installation:

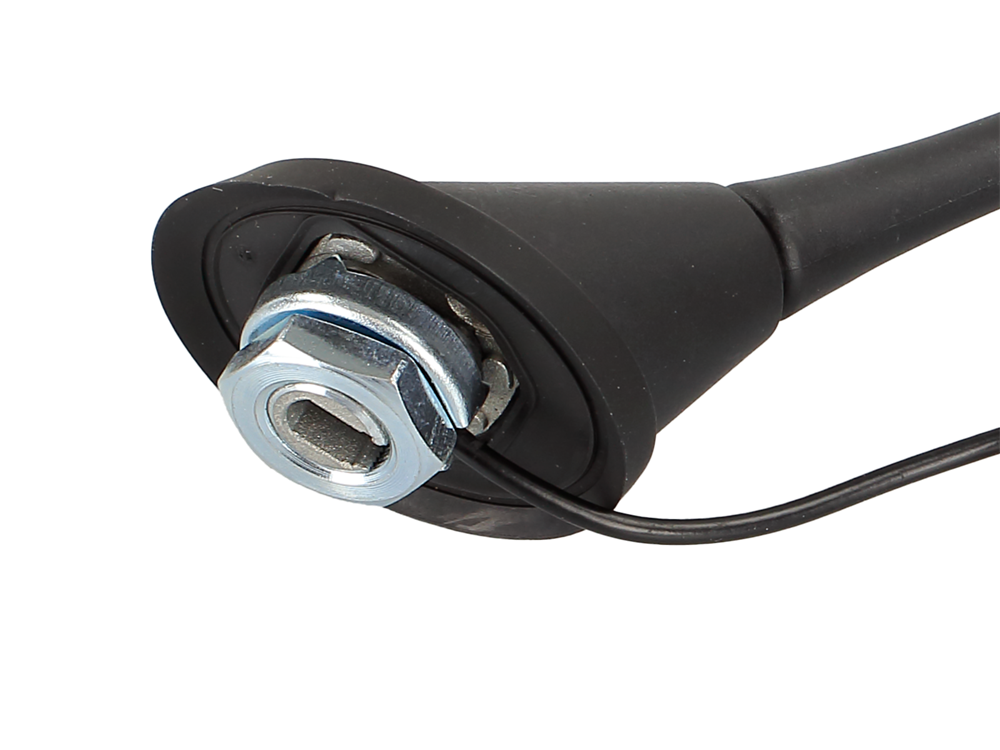

installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
rod length: 405 mm
rod inclination: 60°
rod type: antinoise
thread: M5

Dimensions:
total high: 440 mm
antenna socket: L = 60 mm / B = 43 mm

Connections:
AM/FM: HC97(F) / 180 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz

Power supply:
AM/FM: +12V phantom power

Power consumption:
AM/FM: 60 mA max
