Varenr.: MT120N
På lager hos vores leverandør

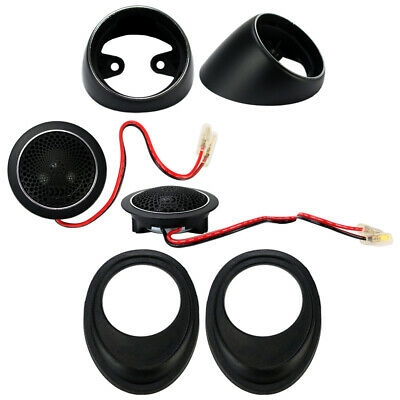

The new generation MT-120 tweeter offers unrivalled high frequency performance in a compact design with incredible high power handling capabilities at very low distortion levels. While its size allows it to be fit in most factory locations, surface and flush mount options with a beautiful lotus grille provide an elegant look fitting for modern vehicles.
SPECIFICATIONS
MT120N
Nominal Impendance (ohm) 8
Power Handling Wrms 80
Max. Trans. Pwr Handling Wrms (10ms) 250
Sensitivity (2.83 V/1M) dB 90
Frequency Response Hz 1800-25000
FS Hz 1200
Voice Coil Diameter mm (inch) 28 (1.125)
Voice Coil Former Aluminium
Voice Coil Wire Copper
DC Resistance ohm 5.2
Magnet System Neodymium
Dome Type Acuflex™ hand coated soft dome
Dome Material Silk
Unit Diameter mm (inch) 43 (1.69)
Mounting Depth mm (inch) 13.20 (0.52)
Mounting Cutout mm (inch) 47 (2.00)
Net Weight Kg (lb) 0.07(0.15)
