MOREL MAXIMO ULTRA 603A MKII 3-VEJS AKTIV

Maximo Ultra 603A MKII
Morel invested the same passion, engineering and philosophy that earned its car audio speakers countless awards in the development of the new MAXIMO ULTRA line 3-way component systems speakers.

Following Morel’s philosophy of high quality, musical systems, it features some of the company’s innovative technologies and new design characteristics. Engineered to be easily installed in factory locations and integrate with factory head units.

The Maximo Ultra 603A is an active system without crossovers.

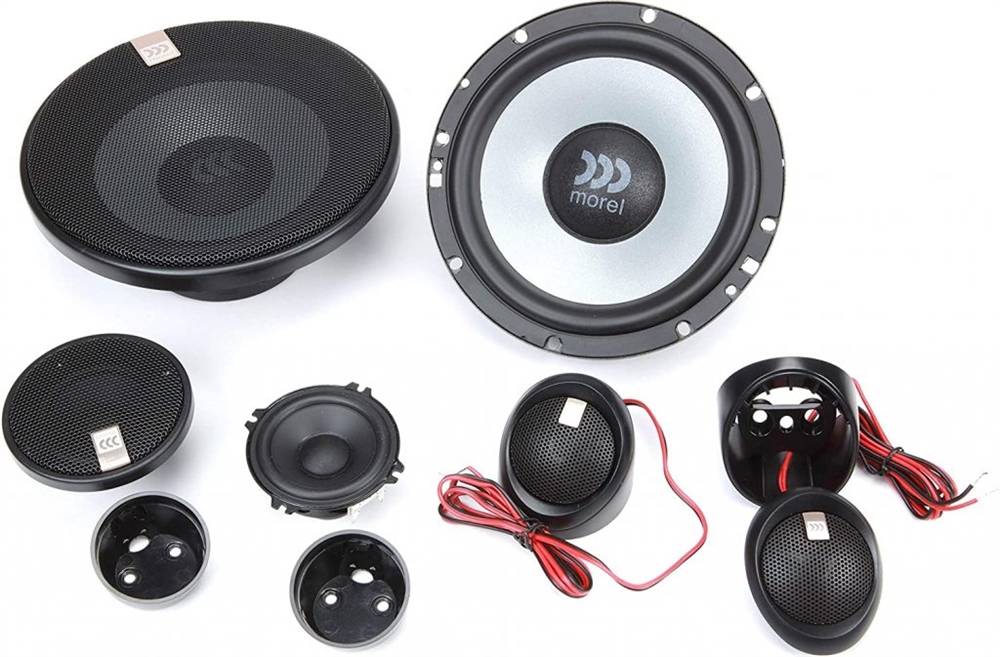

The Maximo Ultra 3-way drivers:

The tweeter is a new 25mm (1″) diameter soft dome tweeter, that employs Morel’s external voice coil technology (EVC™) developed specifically for the Maximo Ultra. The tweeter design sets new standards for power handling and low distortion for this price level while delivering an enjoyable musical sound reproduction. Its four mounting options make installation effortless and trouble-free.

The midrange in the 3-way component system is a new 2.5-inch premium wide-range midrange that employs a powerful double neodymium magnetic system that features a full copper sleeve to ensure smooth frequency response and low distortion. It delivers amazing detail and a lush midrange in a compact size

The woofer features a high-grade ferrite magnet motor that provides increased magnetic energy, with higher power handling and better efficiency than ever before. The new design uses a specially treated paper cone and computer-modeled suspension for a highly linear movement during low midrange frequency reproduction, thus reducing distortion and increasing bass dynamics.


The Maximo Ultra presents you with the best performance in its class.

Specifications
Performance Series Maximo 603A MKII
Configuration 3-way Split system
Driver Size 165mm (W), 63.5mm (M) 69mm (T)
Frequency Resp. 50 Hz - 20,000 Hz
Crossover 3-Way Active
Power Handling 100 W/RMS 180 W/Peak
Sensitivity 90.5 dB
Impedance 4 ohm
Speaker Grills Included
