MOREL 2,5" MELLEMTONE/DISKANT (Broadband speakers)

CCWR254 CAR AUDIO

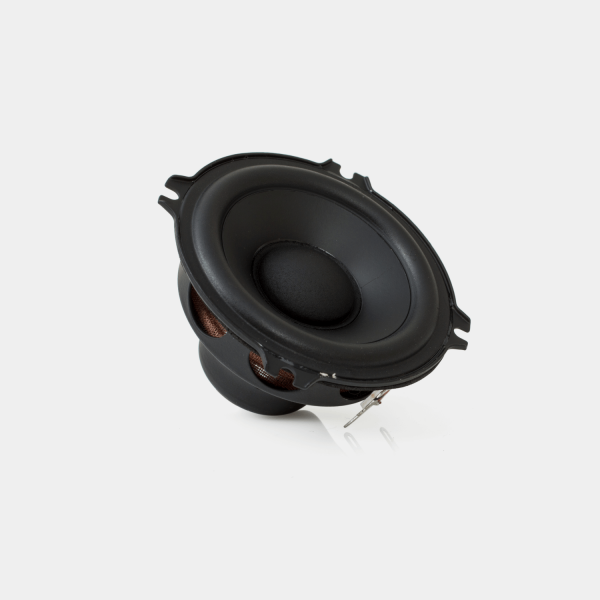

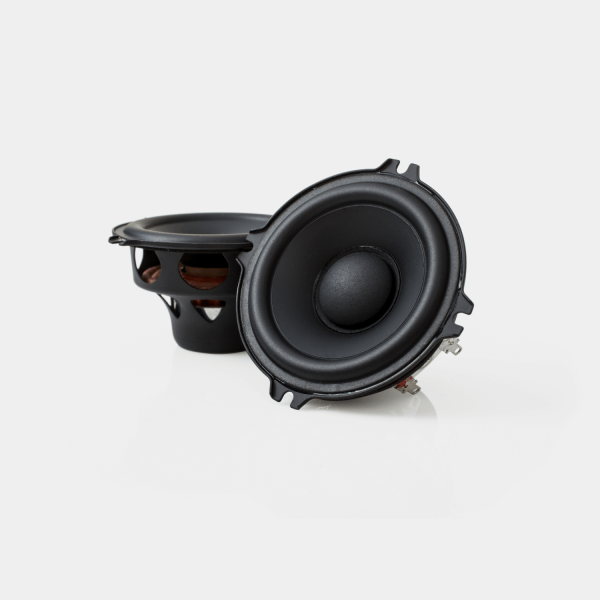

The CCWR 254 was developed as a premium wide range driver with detailed highs and a lush midrange in a compact size.
PHILOSOPHY
Broadband speakers that cover both midrange and high frequency audio spectrums are becoming increasingly popular in new vehicles. As a result, Morel developed the CCWR 254 as a premium wide range driver with detailed highs and a lush midrange in a compact size.
Even with its diminutive 2.5" diameter, the new CCWR 254 employs some of Morel’s best technologies including an extremely powerful dual neodymium EVC magnet motor along with a full copper sleeve. The computer optimized design ensures superb linearity and high magnetic flux enabling the CCWR 254 to span a frequency response of 300Hz-19kHz with ultra- low distortion across its frequency range.
SPECIFICATIONS

NOMINAL IMPEDANCE (Ohm) 4
NOMINAL POWER HANDLING (DIN) 40 wrms
TRANSIENT POWER HANDLING W (10MS) 80 w
SENSITIVITY (2.83V/1M) dB 84.5
USABLE FREQUENCY RANGE (Hz) 300 - 19,000
