Varenr.: 346311-3-0-p
På lager hos vores leverandør

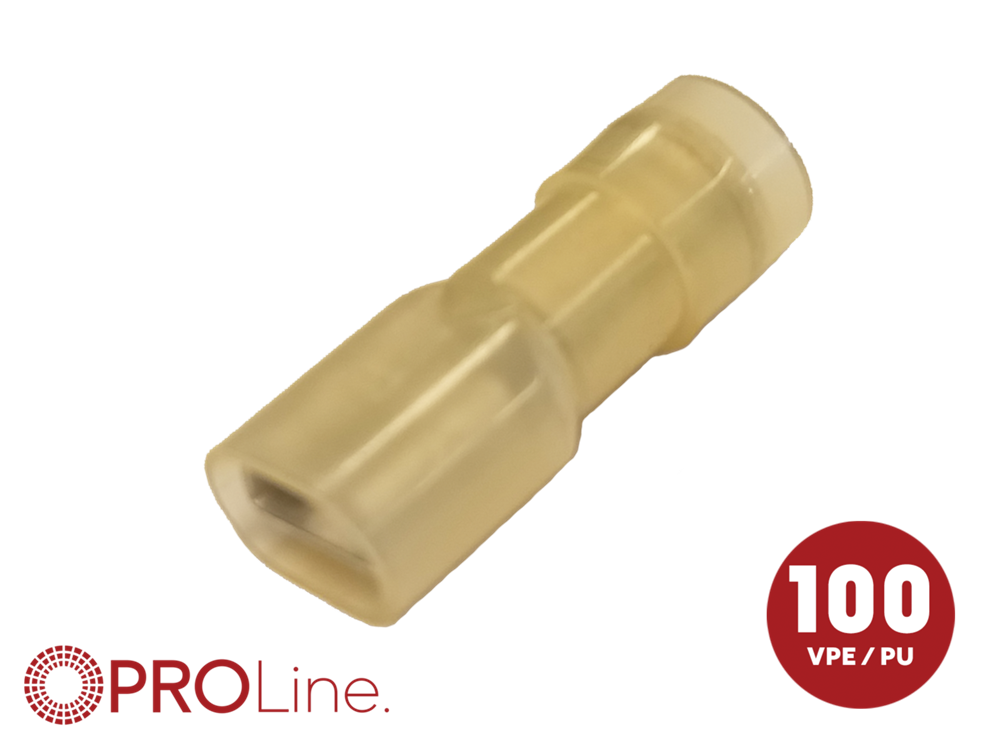

Blade receptacle yellow
Nylon series FI
Nylon (PA 66) Blade receptacle(f) 4,0 mm² - 6,0 mm² / 6,3 mm x 0,8 mm fully insulated brass electro tin plated
UL-listed Blade receptacle with high tensile strength, excellent conductivity and mechanical stability thanks to the use of brass for durable connections protected against corrosion by electrolytic tinning.
Blade receptacles are used to connect wires to flat plugs and are used in vehicle construction, switch cabinet and electrical system construction, cable assembly and mechanical engineering.
Use case:
cable diameter: 4,0 mm² - 6,0 mm²
cable diameter: 12 - 10 AWG
Technical data:
contact: 6,4 mm x 0,8 mm
length: 24,5 mm
contact opening: 6,6 mm x 0,7 mm
diameter cable entry: 6,3 mm² max.
diameter strand: 3,4 mm² max.
sleeve length: 13 mm
plug length: 11,5 mm
material: brass tin plated
insulation: Nylon (PA 66)
operating temperature: -40 °C - 105 °C
electrical current: 300V max.
electrical rating: 24A max.
REACH and RoHS compliant
UL-listed
Halogen free
Content:
100 pieces bulk
