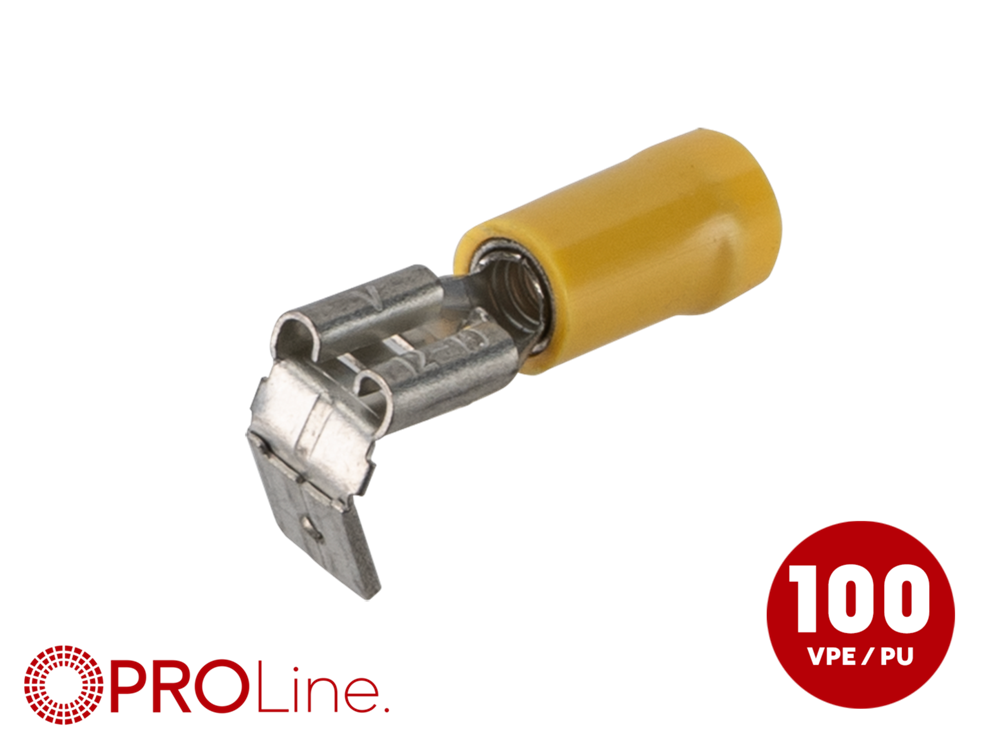

Varenr.: 346333-2-0-p
På lager hos vores leverandør
cable diameter: 4,0 mm² - 6,0 mm²
cable diameter: 22 - 16 AWG
Technical data:
contact(m/f): 6,3 mm x 0,8 mm
length: 24,5 mm
diameter cable entry: 6,2 mm² max.
diameter strand: 3,4 max.
sleeve length: 13,0 mm
plug length(m): 8,2 mm
plug width(m): 6,4 mm
plug length(f): 8,0 mm
plug width(f): 6,7 mm
material: brass tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 300V max.
electrical rating: 24A max.
REACH and RoHS compliant
Content:
100 pieces
