Varenr.: 346304-2-5-p
På lager hos os
cable diameter: 1,5 mm² - 2,5 mm²
cable diameter: 16 - 14 AWG

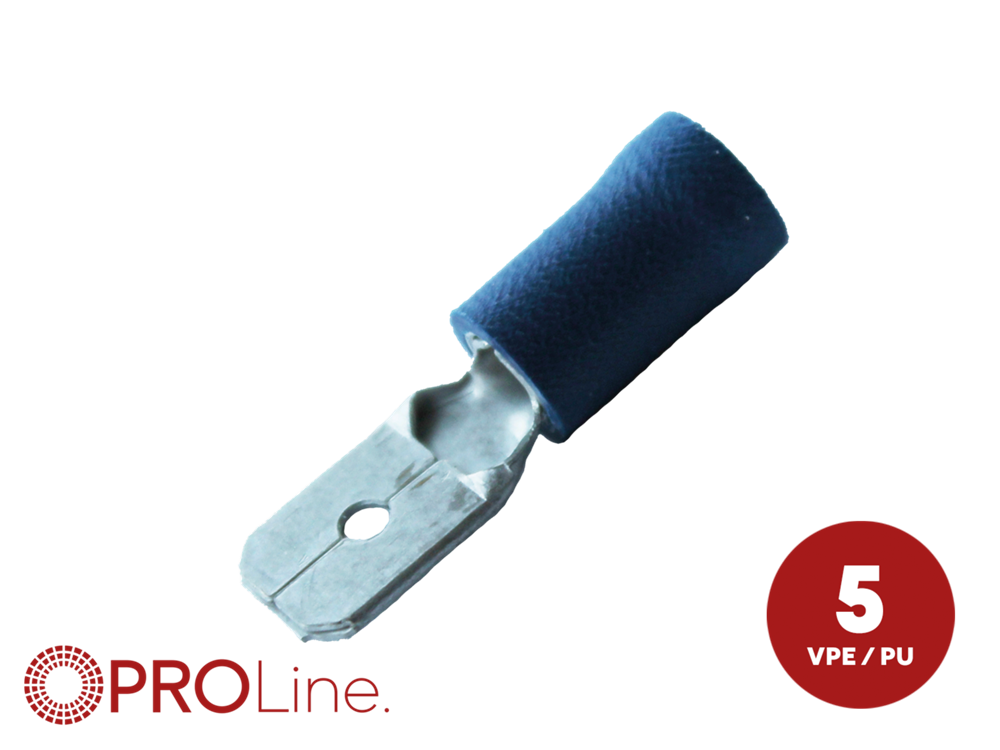

Technical data:
contact: 6,3 mm x 0,8 mm
length: 24,5 mm
contact opening: 7,95 mm x 0,7 mm
diameter cable entry: 4,7 mm² max.
diameter strand: 2,3 max.
sleeve length: 10,0 mm
plug length: 7,6 mm
material: brass tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 300V max.
electrical rating: 15A max.
REACH and RoHS compliant
UL-listed
Content:
5 pieces
