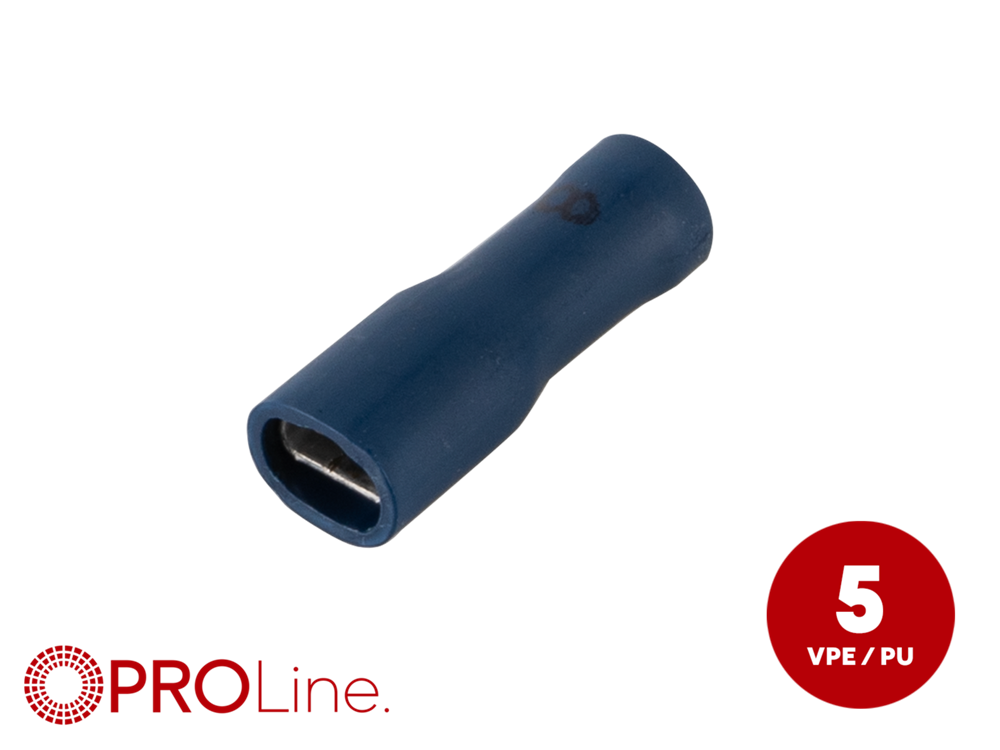

Varenr.: 344824-1-5-p
På lager hos vores leverandør
cable diameter: 1,5 mm² - 2,5 mm²
cable diameter: 16 - 14 AWG
Technical data:
contact: 4,8 mm x 0,8 mm
length: 20,5 mm
contact opening: 5,0 mm x 0,7 mm
diameter cable entry: 4,7 mm² max.
diameter strand: 2,3 mm² max.
sleeve length: 10,5 mm
plug length: 6,4 mm
material: brass tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C
electrical current: 300V max.
electrical rating: 15A max.
REACH and RoHS compliant
Content:
5 pieces
