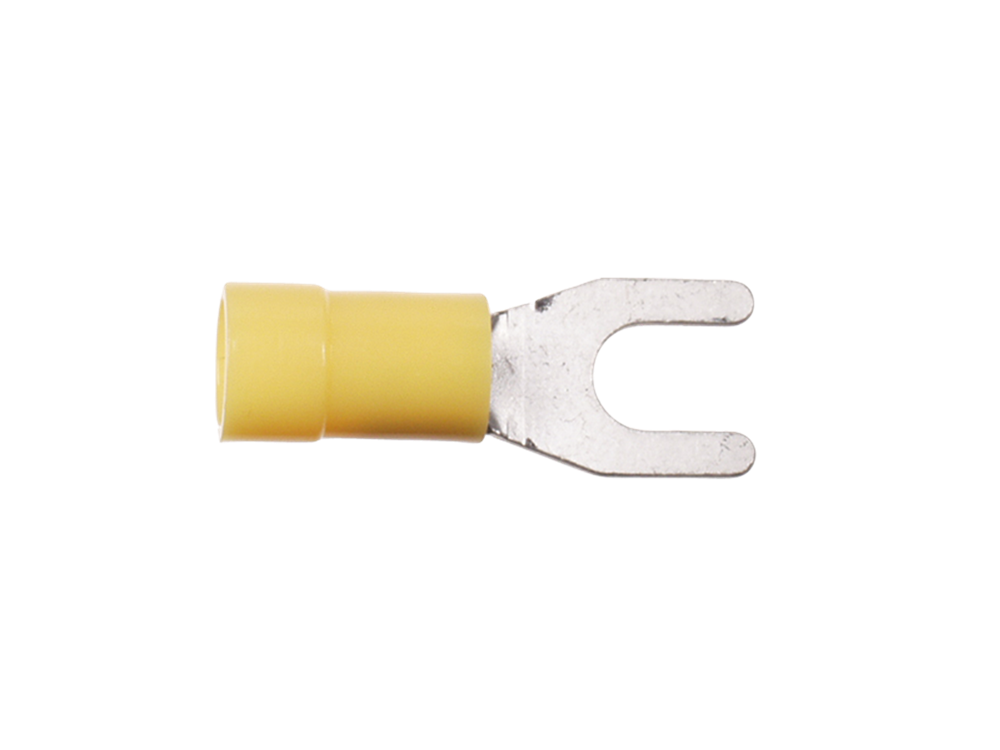

GUL 4,0 - 6,0mm² GAFFELSKO 100 STK.

Spade terminal gelb

Standard series

vinyl PVC spade terminal 4,0 mm² - 6,0 mm² / 4,4 mm² copper tin plated

Use case:

cable diameter: 4,0 mm² - 6,0 mm²
cable diameter: 12 - 10 AWG

Technical data:

opening: 4,4 mm
wide: 9,0 mm
strand diameter: 3,4 mm² max.
drop length: 5,5 mm

material: copper tin plated
insulation: vinyl PVC
operating temperature: -10 °C - 75 °C max.
electrical current: 600V max.
electrical rating: 48A max.

REACH and RoHS compliant

Content:

100 pieces
