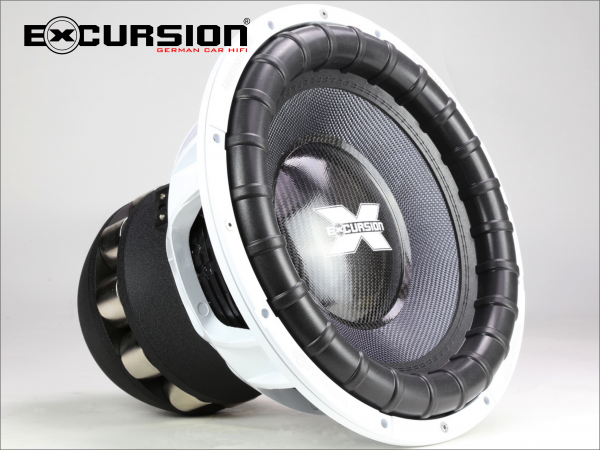

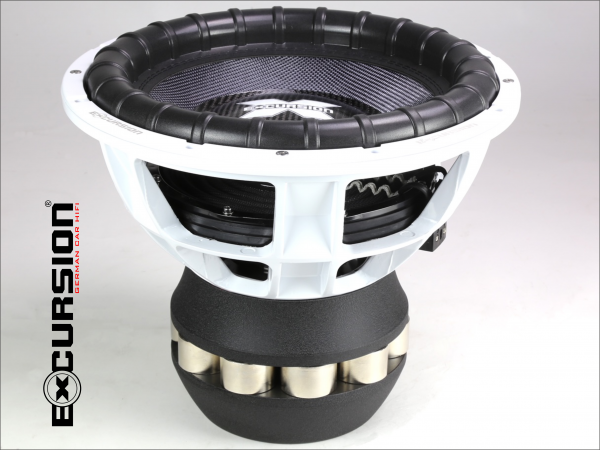

EXCURSION TEAM SUBWOOFER TXN 15 D2 - 7500 RMS / 20000 Watt

15" / 38cm - 2x2Ohm - 34,2kg
7500 RMS / 20000 W
4" CCAR 4L Alu Flat US Coil

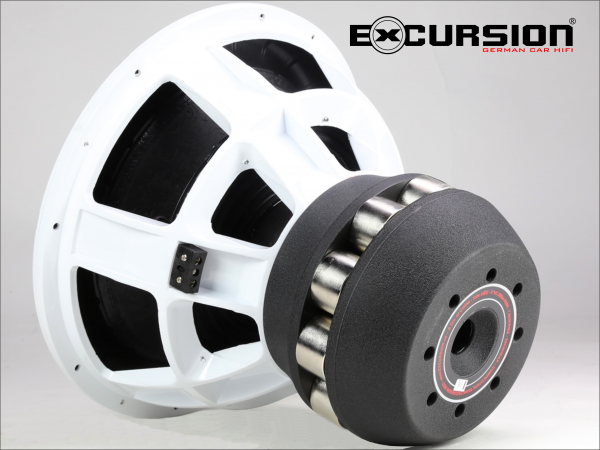

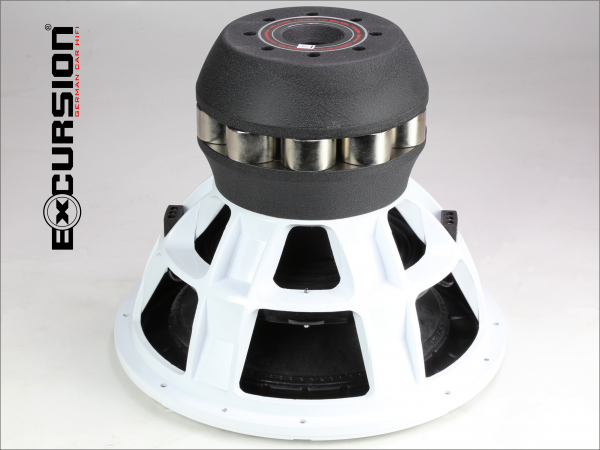

200oz N38SH Neodymium Motor

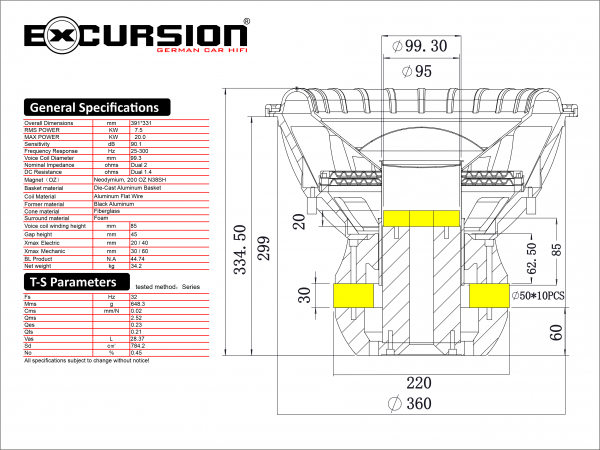

MD=299mm ID=356mm OD=394mm
Dual Composite black linear Spider
Wooven Glasfaser Sandwich Cone
Carbon Dustcap
Reinforced and stiched 70:5 XHDR Surround
8GA Terminal - 10GA Dual Tinseal

VC Roll Range height 85mm
XMAX linear Electr. 20 / 40 mm
XMAX Mechanical 30 / 60 mm
DC Widerstand 2x 1.4Ohm
BL @ Series 44.74
Suspension Compliance Cms 0.02
Mechanical Q Factor Qms 2.52
Electrical Q Factor Qes 0.23
Total Q Factor Qts 0.21
Moving Mass Mms 648.3 g
Eq.Cas Air Load( liters) VAS Liter 28.37
Resonant Frequency Fs 32 Hz
Effective Piston Area SD 829.5

TEAM EXCURSION with our 200oz NEODYMIUM drive is certainly by far the most uneconomical solution to operate a subwoofer - BUT - nevertheless this exaggeration of POWER and ENERGY exerts a fascination which no enthusiastic car hi-fi fan can elude. Everyone would like to have it. Just as like nobody will ignore an open engine compartment of a Lamborghini we answer this totally nonsense question that has haunted us for years ... "Can you do that too?"

Most of the time, with this question, they did not understand that it is not about "being able to do" at EXCURSION. EXCURSION is all about "being able to do better" and also offering it realistically to everybody. It's only all about the "ALL YOU NEED" in the real car audio world, but sure with a significantly increased sportive fun factor. So it took years till we warmed up to a project which "NOBODY (we think) NEED" but same time not wanted be the spoilsport at the round table in the pub ... and hell … if then do it right.

So it's not just about the extravagance of visual desires for some NEODYM in order to accomplish a task and join a club. If so than our TEAM subwoofer starts with the power of the DOUBLE NEODYM HEARTS. Simply to answer future following questions correctly. A DOUBLE HEART drive with a massive internal 4 "NEODYME CORE and another 10pc heavy external 2" NEODYME CORES is at least difficult to find right words in English. This quantity on NEODYM, which has only doubled in price in the relatively short period of production up to the first delivery on the raw material market, ensures the remaining small number of pieces in the TEAM and explain a selective sales decision.
The rest of the luxury from the 4 "US coil to the braided fiberglass cone fades almost completely in the NEODYM field as not worth for mentioning anymore ... but of course there.

So simply let yourself be inspired. Recognize it as the technical masterpiece and status symbol of a very special kind as it is and let us all enjoy it a lot.


Since 2014 EXCURSION offer a praxis born range of Loudspeaker, Subwoofer and Amplifiers based on 30years of experience and engineering. Design, Innovation and Improvements are sourced from all those Challenges of the Car Audio Competition Associations all over the world. This selection of leading and winning high technology route direct into our product lines in order to offer a wide range of consumers Know How and Value which they could usually not access. With german leadership in the global production our authorizied EXCURSION factory partners leave no doubt to meet standards we as german brand are expected for.

Next to an unbeatable Price Performance the praxis form follow function philosophy mirror the prior target motivation of EXCURSION. Everything of past and presence is taken into doubt first, in order to get rethought with all its Details again for a further improve in result. Those results like compact mini sized high technology SMD or CHIP built car audio amplifiers who can meet military standards in caftmansship or new age Plug & Play concepts going through all steps in the line of amplifier till speaker, keeping always flexbile ENERGETIC upgrade improvements or optional upgrade with professional multichannel DSP or BlueTooth connection for a lossless High End streaming via your personal Smart Phone.

With selection of the highest technology global factory partners we at EXCURSION follow and guarantee a tradition of value and exellence for our products. This without mark ups to our car audio customer for horrible marketing and lobby pampering expenses or any half naked women in order to attract more than the value or performance those products mostly can have. We believe or challenge start after you have closed your eyes, after installation & purchase and be asured we love to get compared .... and even more if you comment and let us know about your judging.

EXCURSION …is all you need
