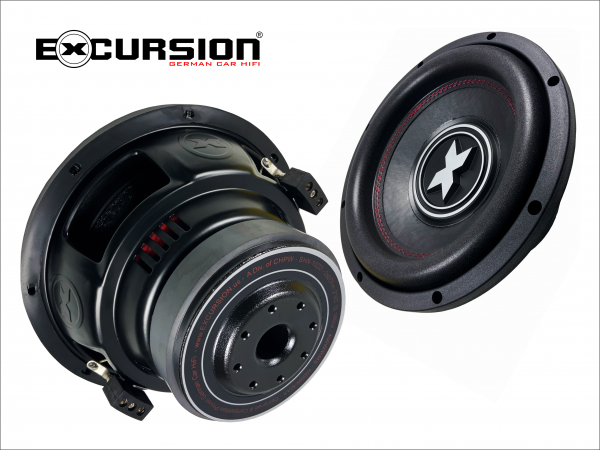

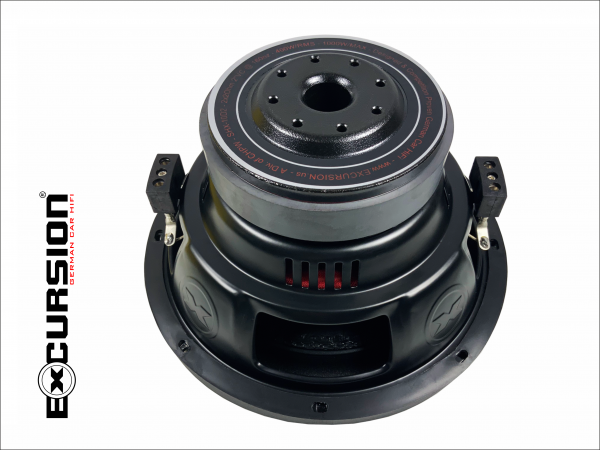

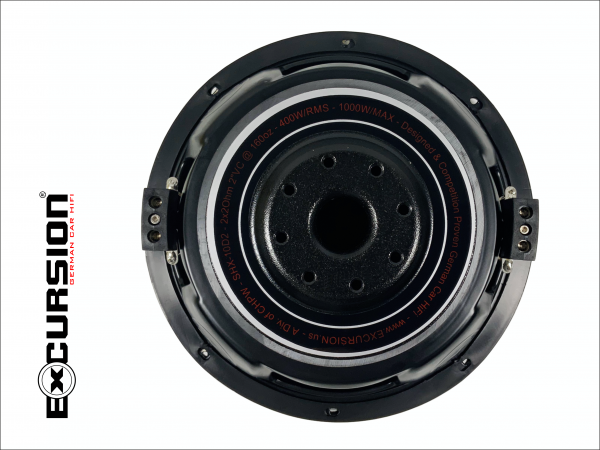

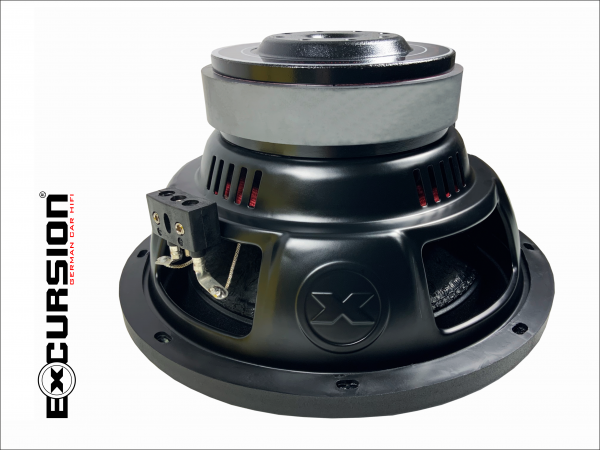

EXCURSION STREET HIFI POWER RED LINE SHX 10 D4. 10" 2 x 4 ohm

10 Inch /25cm - 2x4Ohm - 400 RMS / 1000 W
2" Inch BASV - 90dB @ 2.8V - 160oz Motor
MD=126mm ID=232mm OD=262mm W=4,25kg

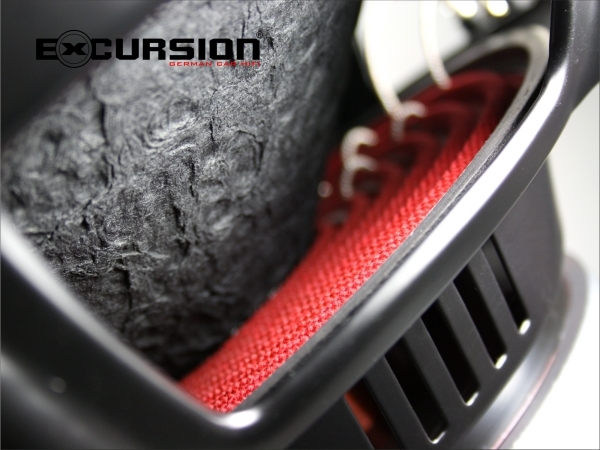

Dual Composite red linear Spider and Cone
Red stiched HDR Surrounds - 3D Dustcap

VC Roll Range Height 28 mm
XMAX linear 10 / 20 mm
DC Widerstand 2x 3.2Ohm
BL @ Parallel 7.52
Suspension Compliance Cms 0.25
Mechanical Q Factor Qms 6,02
Electrical Q Factor Qes 0.55
Total Q Factor Qts 0.5
Moving Mass Mms 95.7 g
Eq.Cas Air Load( liters) VAS Liter 38.8
Resonant Frequency Fs Hz 32
Effective Piston Area SD 330

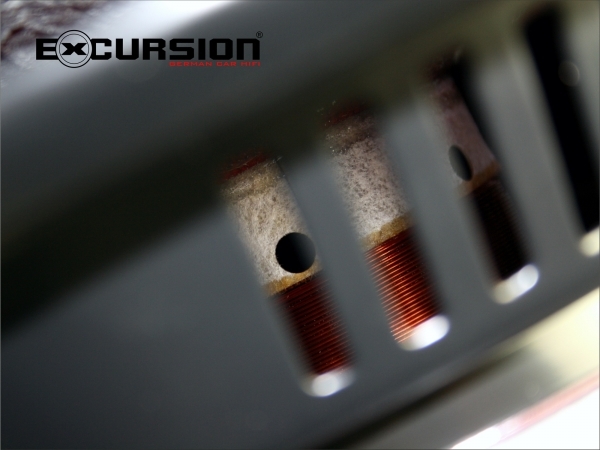

New SHX.v2 Excursion Subwoofer Bunnies feature multilayered pressed paper cone with glasfiber reinformcement for natural bass reproduction and now step up with our overall innovative EXCURSION T steel Basket in their latest Version 2. Improved High Roll Foam surround promise continous unlimited movements. Furthermore upgraded with our upper series military Standard 8GA Screw Terminal we improve comfort and quality of installation. Linear precise spider design with reliable wooven tinseal are standards we are known for. Offered in Dual 4Ohm as well professional Dual 2 Ohm Impdedances from .v2 the final choices from 8/4/2/1Ohm hook up Impedance per Subwoofer is up to your system demands. High temperature resistant and top vented 1.5 Inch , 2 Inch or 2.5 Inch BASV on aluminium voice coil formers are proven morel than decade as unbreakable. Extra bumped, pole and now even gap vented backpate support the internal motor cooling and circle air flow. Individual designed Motor structures per size goes up to 230Oz for 15 Inch and guarantee no compromize in performance. Stylish finished with our 3D Excursion Dustcap our SHX.v2 Series continue the legendary Value for preferable very powerful ported enclosures and should be seen as an ENTRY line with a good portion on humor, at least this is what our competitior will need.
