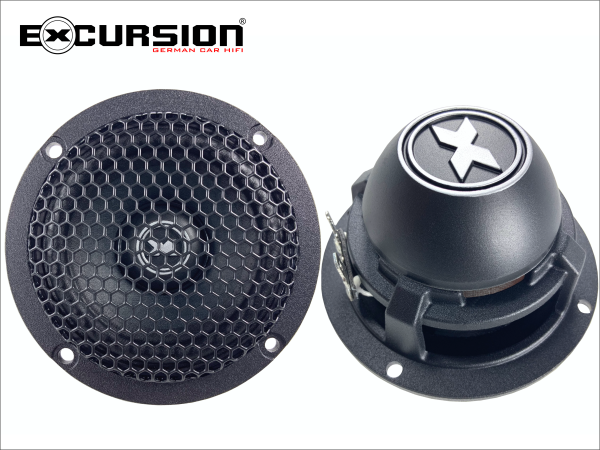

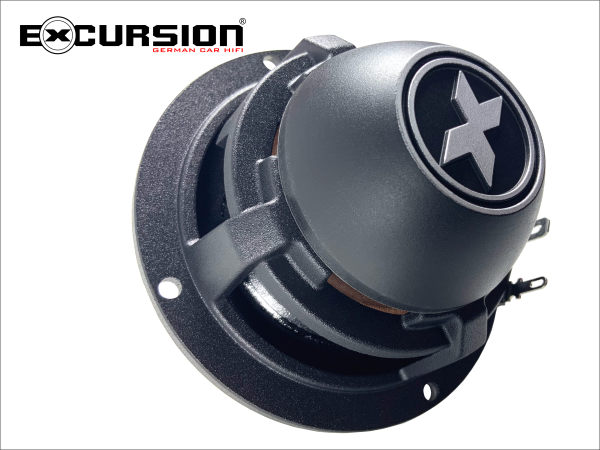

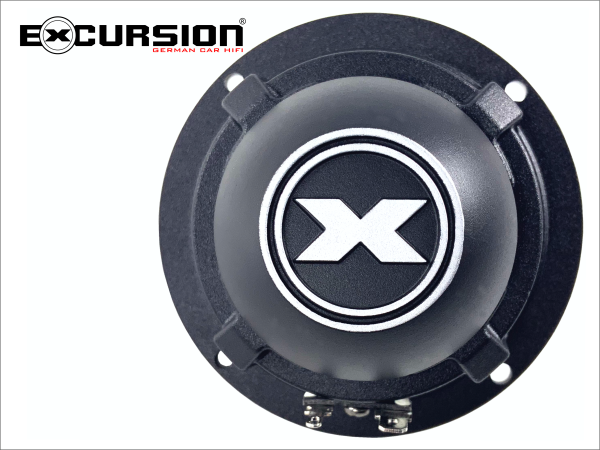

EXCURSION PX 3M 80MM FULL RANGE

EXCURSION PERFORMANCE SERIES - 3OHM
RDC 3,4Ohm @ FS 175Hz
60 RMS / 150 Watt @ 87dB 1W/m
150 - 20.000 Hz Frequency Response
41mm Mounting Depth - 57mm Total Height incl. Grill
76mm Install Cut Out Dia - 92 mm Overall Diameter

* 1"/25.5mm CCAW Voice Coil on top vented Kapton Former
* exklusiv EXCURSION PX N38 Neodymium Motor Design.

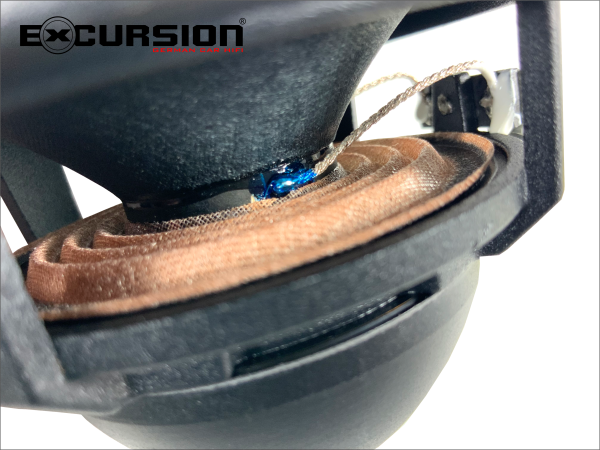

* handmade and selected NOMEX Spider
* handmade low resistant CLOTH surrounds
* Wool Glasfibre Composite Cone with 3D Dustcap
* Fully open massiv diecast Frame with Hexagon Top Grill
* Optional available aluminium Decor for the Car Audio Competition

Fs: 175Hz
SD: 30.1 sqCM
Vas: 0.44 Ltr
Cms: 340 µM/N
Mms: 2.45 g
Bl™: 2.79
Qms: 2.88
Qes: 1.16
Qts: 0.82
