Varenr.: EM-FTF2
På lager hos os
Download manual

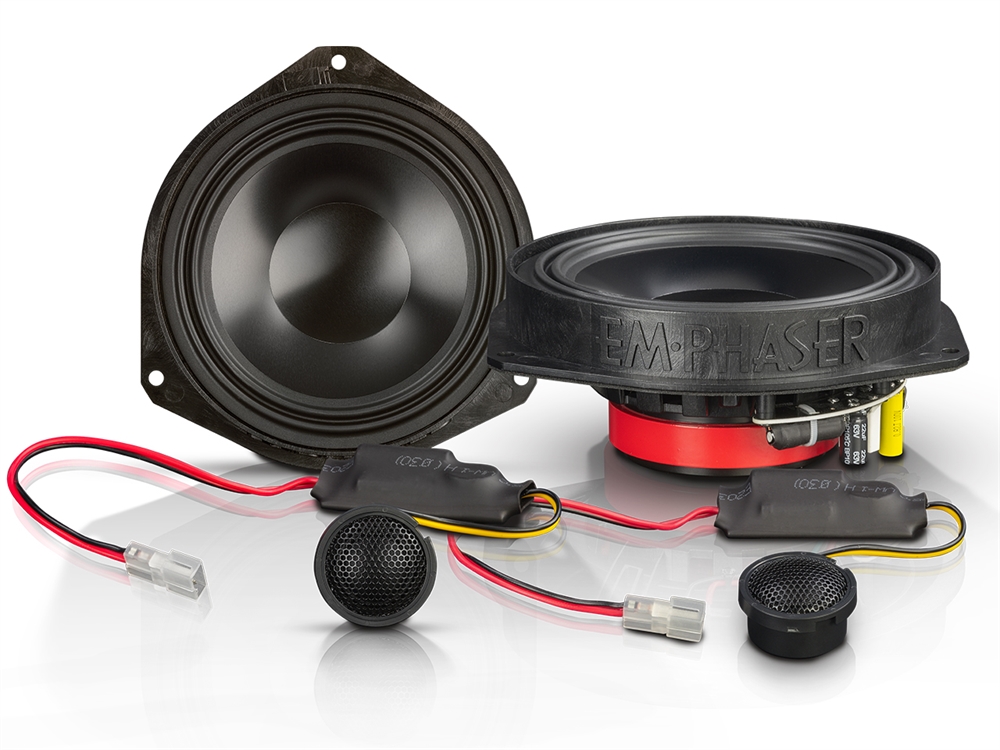

Plug & Play 2-way omponent system for Fiat Ducato III
Car-specific Plug & Play terminals
12 dB/12 dB/oct. crossover @ 3,400 Hz with high quality components

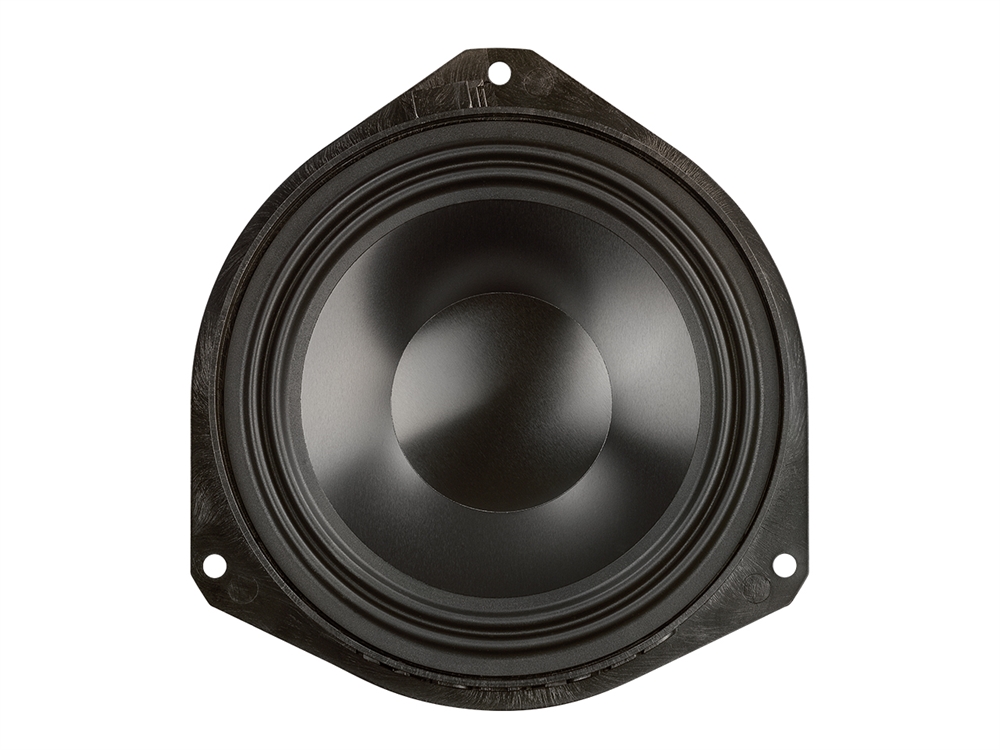

Aluminum woofer mebrane for best sound performance
Faraday copper cap for a stable magnetic field
25 mm voice-coi
20 mm tweeter with fabric dome and coupled volume
Evolution in the EMPHASER loudspeaker range: The EM-FTF2 is a component system for the Fiat Ducato III, Peugeot Boxer II or Citroën Jumper II, which is in no way inferior to its popular predecessor EM-FTF1 and has undergone numerous improvements in detail.

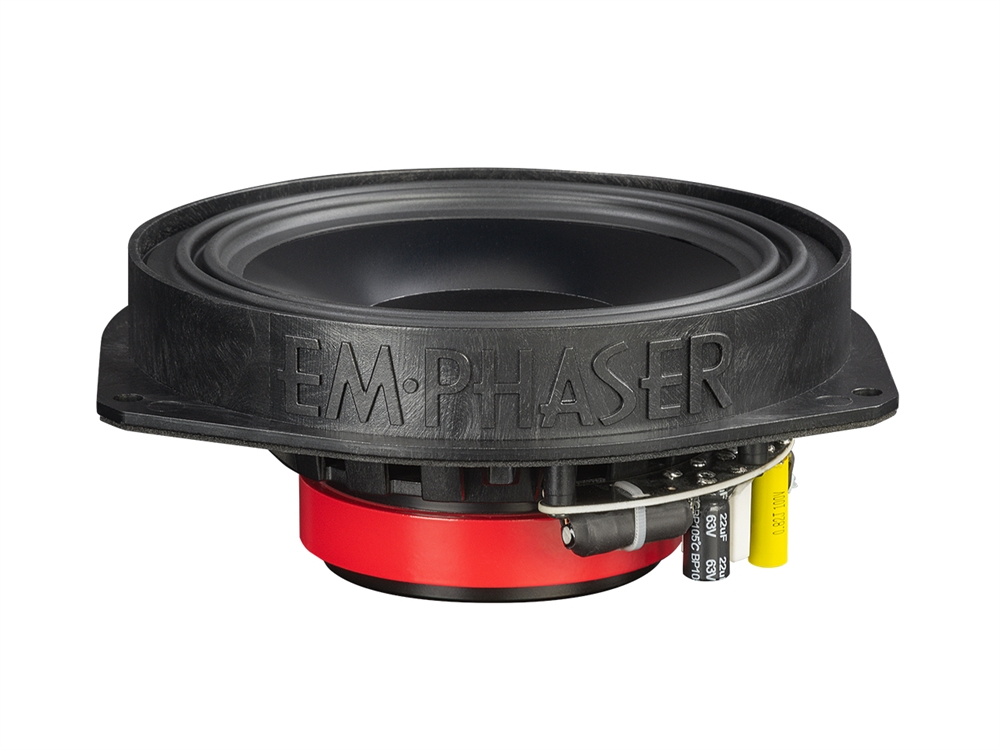

The new EM-FTF2 benefits from the technologies of the successful EMPHASER Monolith component systems: Cambridge surround for high linear excursion of the membrane, Faraday copper cap for a stable magnetic field and the aluminum membrane with its natural sound.

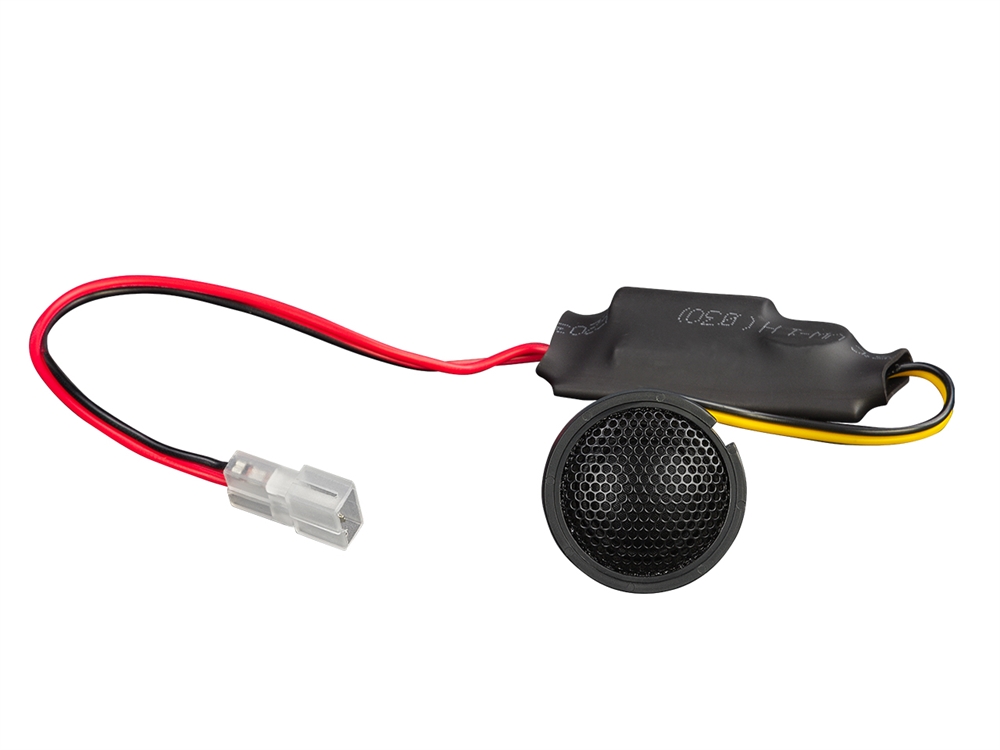

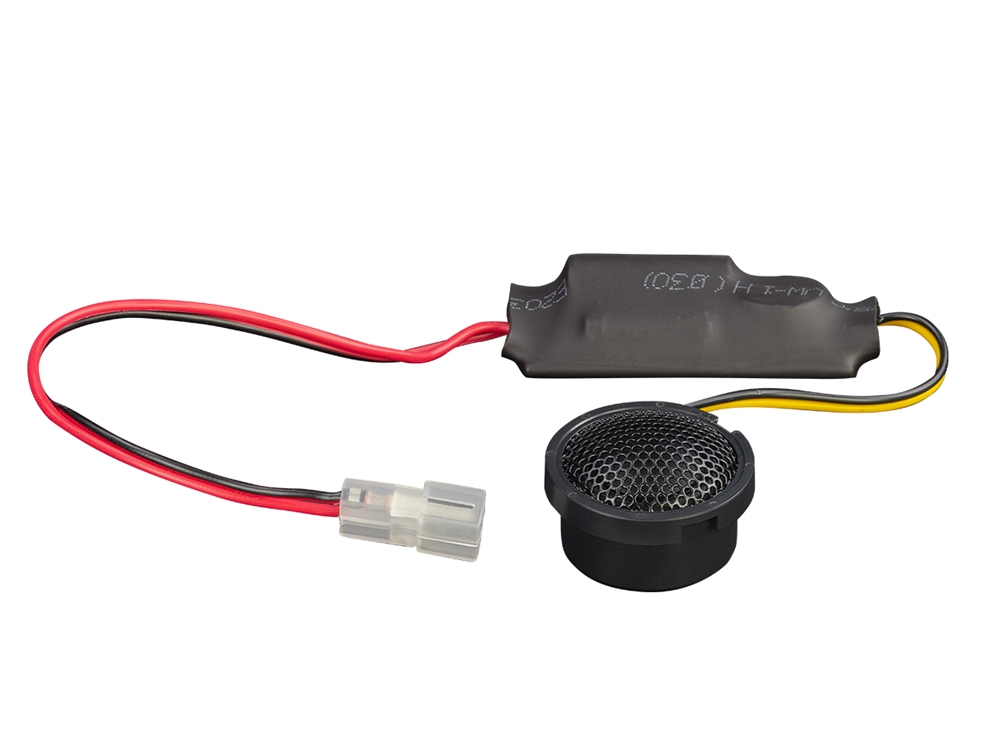

The new tweeter has a 20 mm fabric dome and an additional coupling volume for a low resonance frequency and thus an extended frequency response. It impresses with its brilliance and spatial reproduction and is simply clipped into the original brackets.
The tuning of the system is based on the EMPHASER reference curve for plug & play systems. The 12 dB/12 dB/oct. crossover with LCR circuit for the woofer ensures an extremely harmonious frequency response right into the bass range; a separate subwoofer is no longer necessary for audiophile hi-fi music enjoyment.

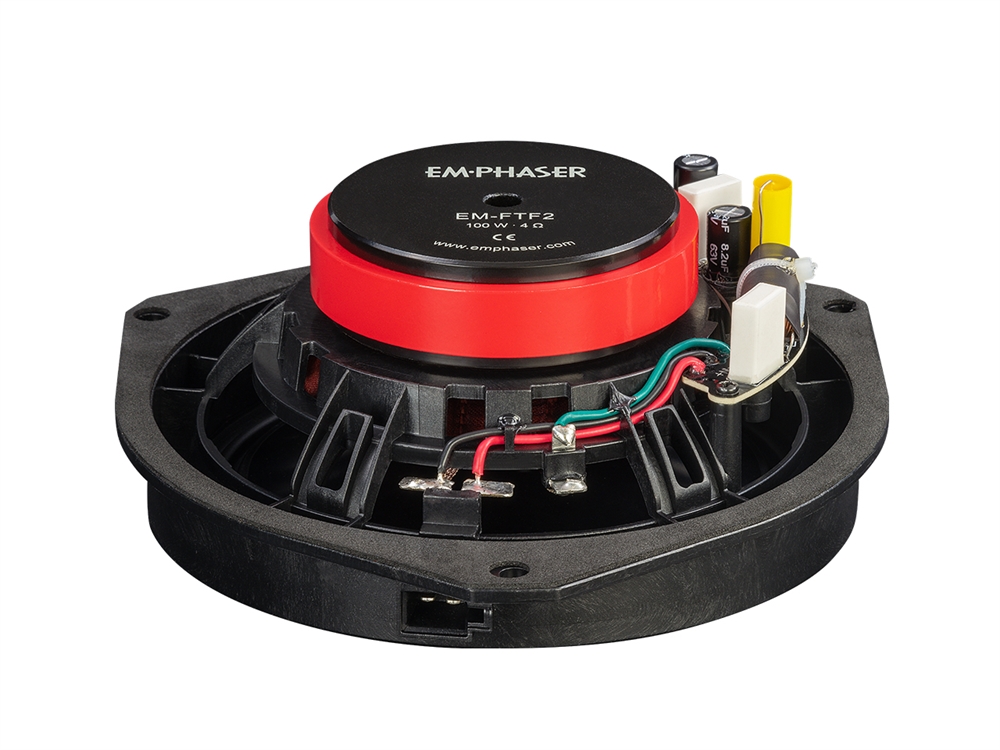

The crossovers are mounted directly at the woofer or as a cable crossover at the tweeter, so that an easy installation is possible.

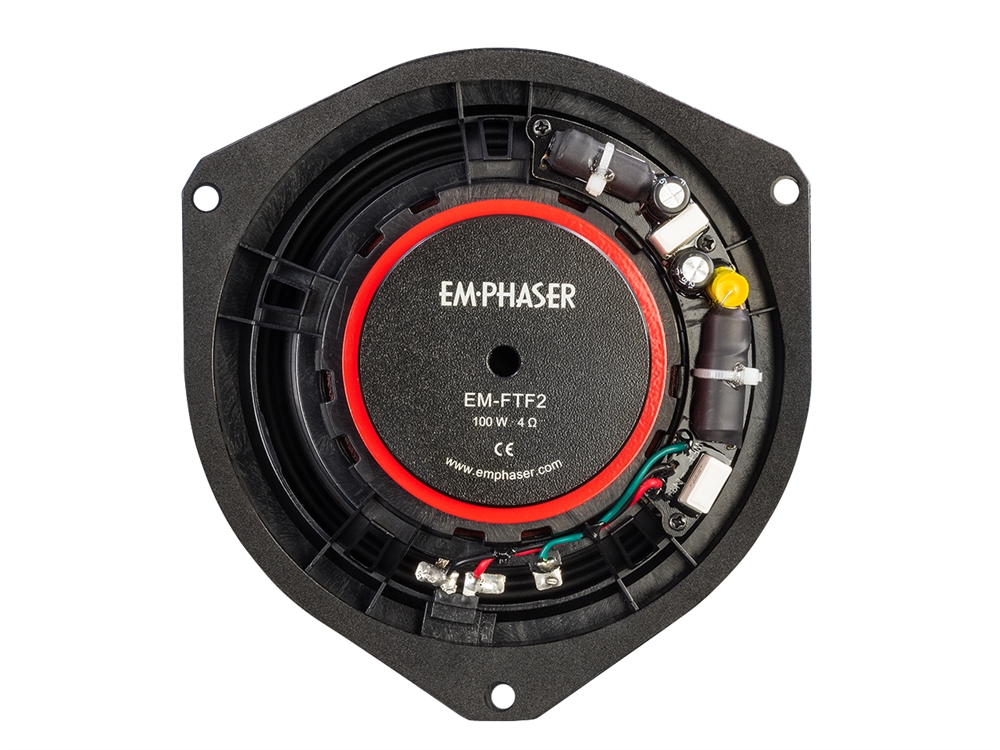

Thanks to the large magnet motor and the low overall weight of the moving mass, the compo achieves a high degree of efficiency.
Thus, a good performance is pre-programmed – even if the EM-FTF2 is merely operated on a “normal“ radio.
The EM-FTF2 can easily be exchanged for the original factory system. The components fit perfectly into the respective mounting holes. Connection is plug and play using the original terminals.
2-way 6.5" component speaker
Frequency response: 50 Hz – 22 kHz
Nominal impedance: 4 ohms
Sensitivity 1W/1m: 90 dB
Continuous power handling: 50 W RMS
Model Model Year
FIAT Ducato III as of 2006
CITROËN Jumper II as of 2006
PEUGEOT Boxer II as of 2006
RAM ProMaster as of 2013
