EM-VWF3

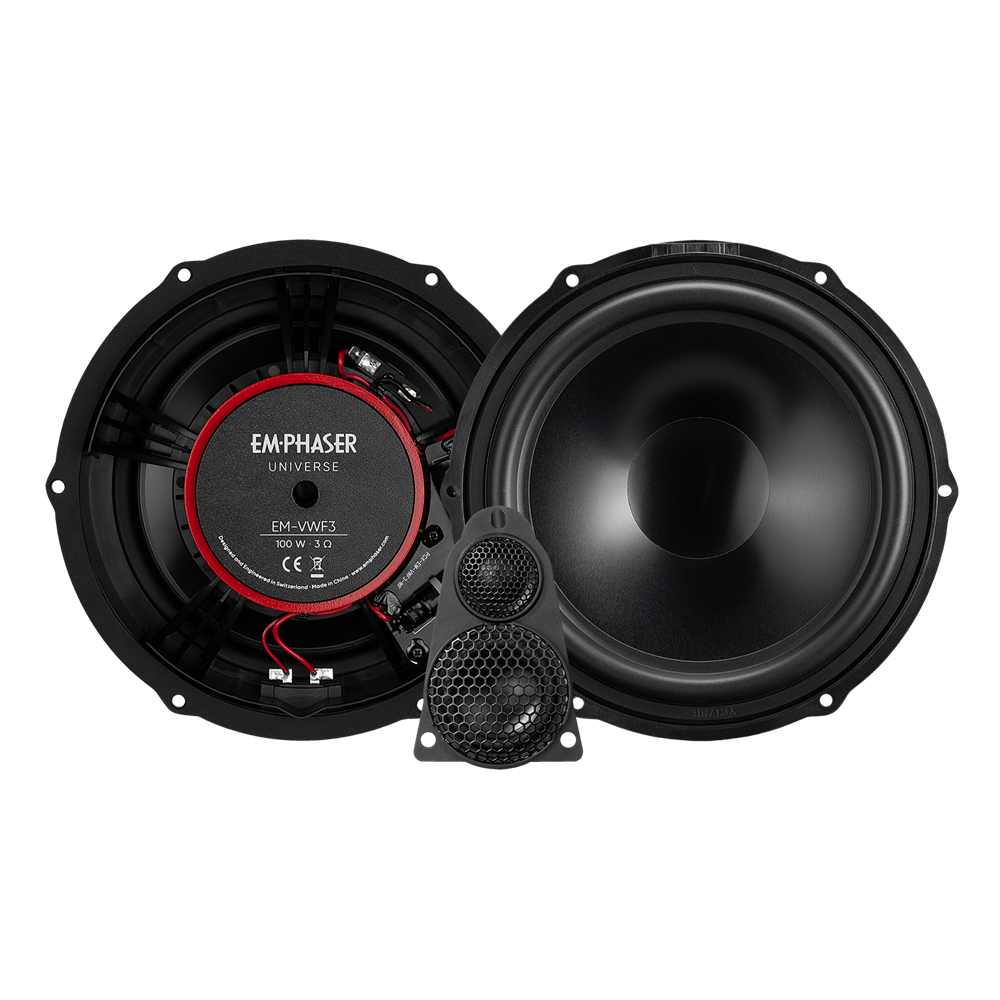

EMPHASER Universe 20 cm 3-way compo speaker set for VW T5
EMPHASER EM-VWF3 - 3-way loudspeaker system for VW T5
Retrofitted in just a few minutes, this high-end component system transforms your T5 into a rolling concert hall.
The EM-VWF3 3-way loudspeaker system consists of precisely matched components and delivers a fantastic sound image with a room-filling bass and detailed sound. When tuning the 3-way system, EMPHASER focused on perfect phasing of the individual components in relation to each other. This is the only way to achieve a truly transparent sound image with the desired spatial depth. The data required for this was determined in the vehicle using precise measuring equipment and processed in complex simulation software.
Main Features:
20 cm 3-way compo system
Suitable for Volkswagen T5 California and platform-related models
Vehicle specific connections
Optimized frequency response for true Hi-Fi sound
woofer with aluminum cone for detailed sound performance
Powerful magnet, Faraday copper ring for stable magnetic field
High-quality woofer crossover with 12 dB
25 mm voice coil on temperature resistant aluminum carrier
40 mm midrange driver with aluminum cone
20 mm tweeter with fabric dome and without ferrofluid cooling for maximum brilliance and widest dynamic range
12 dB /12 dB filter @ 600 / 5700 Hz, cable crossover for the midrange/tweeter
Vehicle-specific plug & play connections

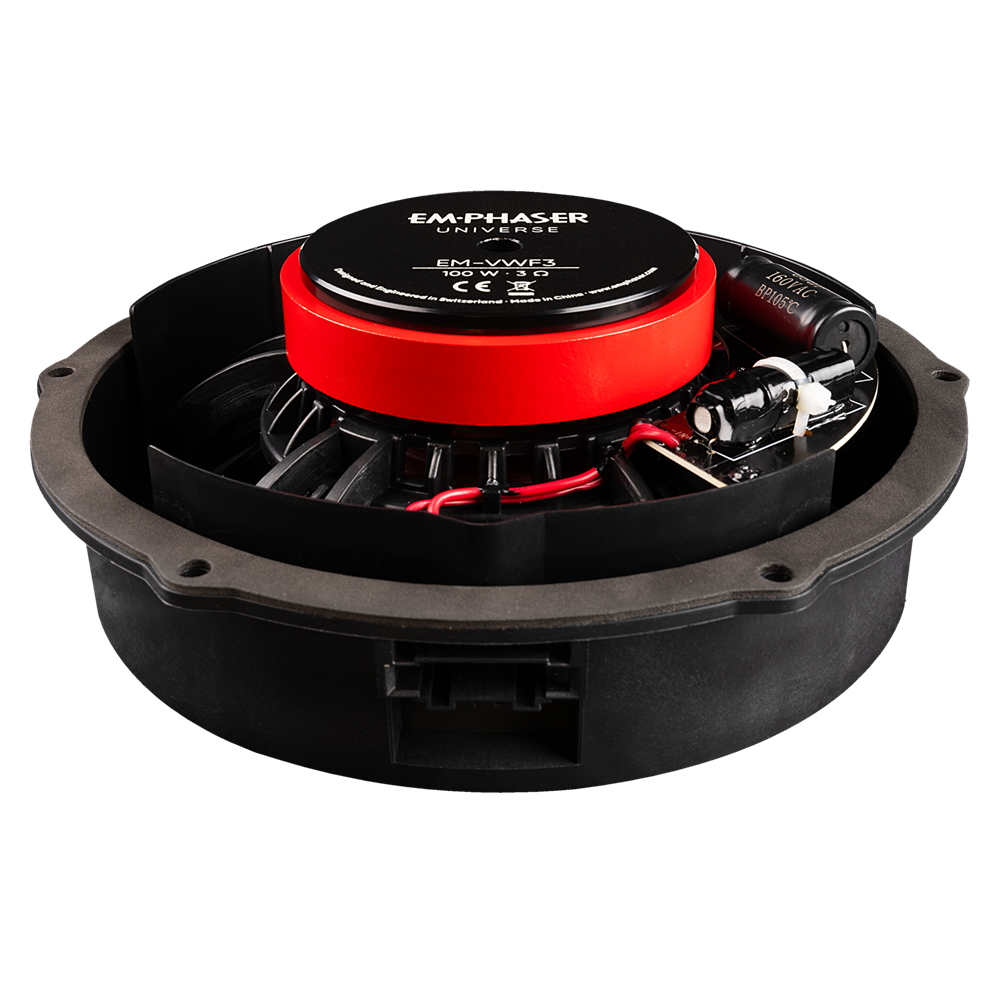

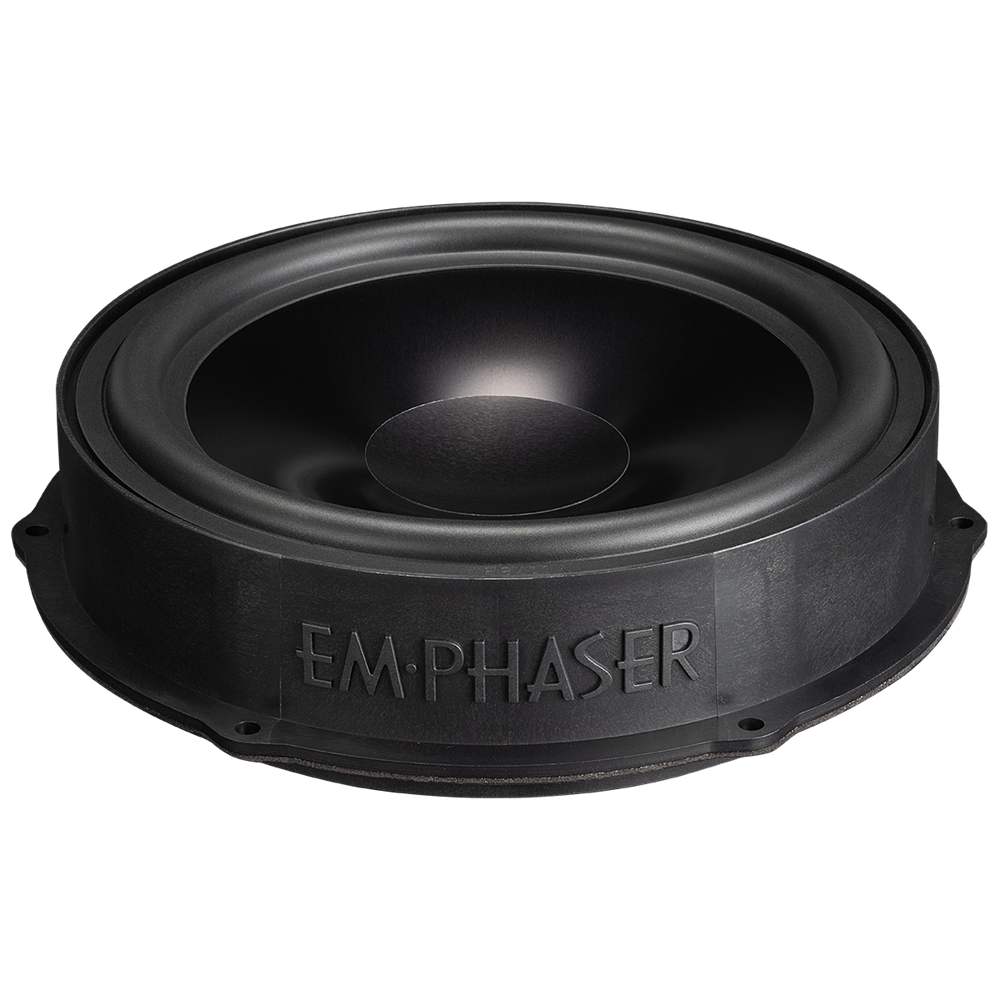

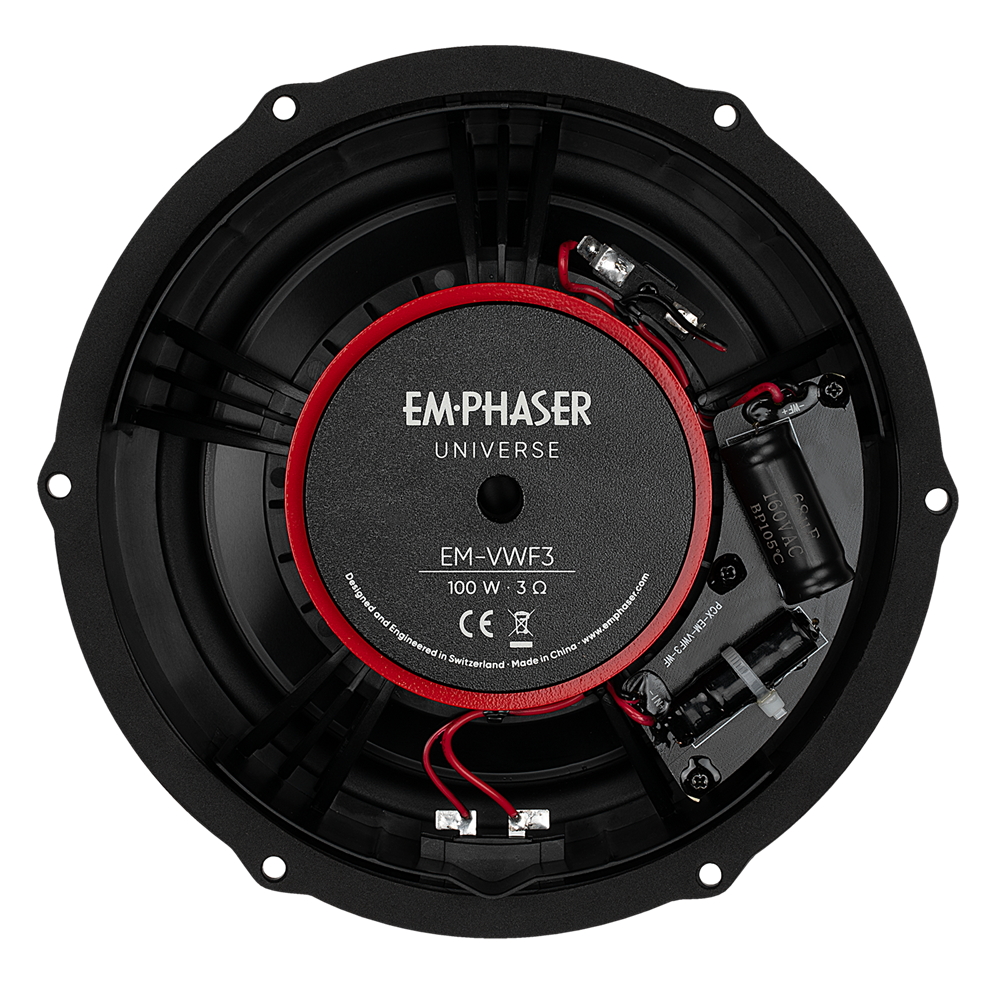

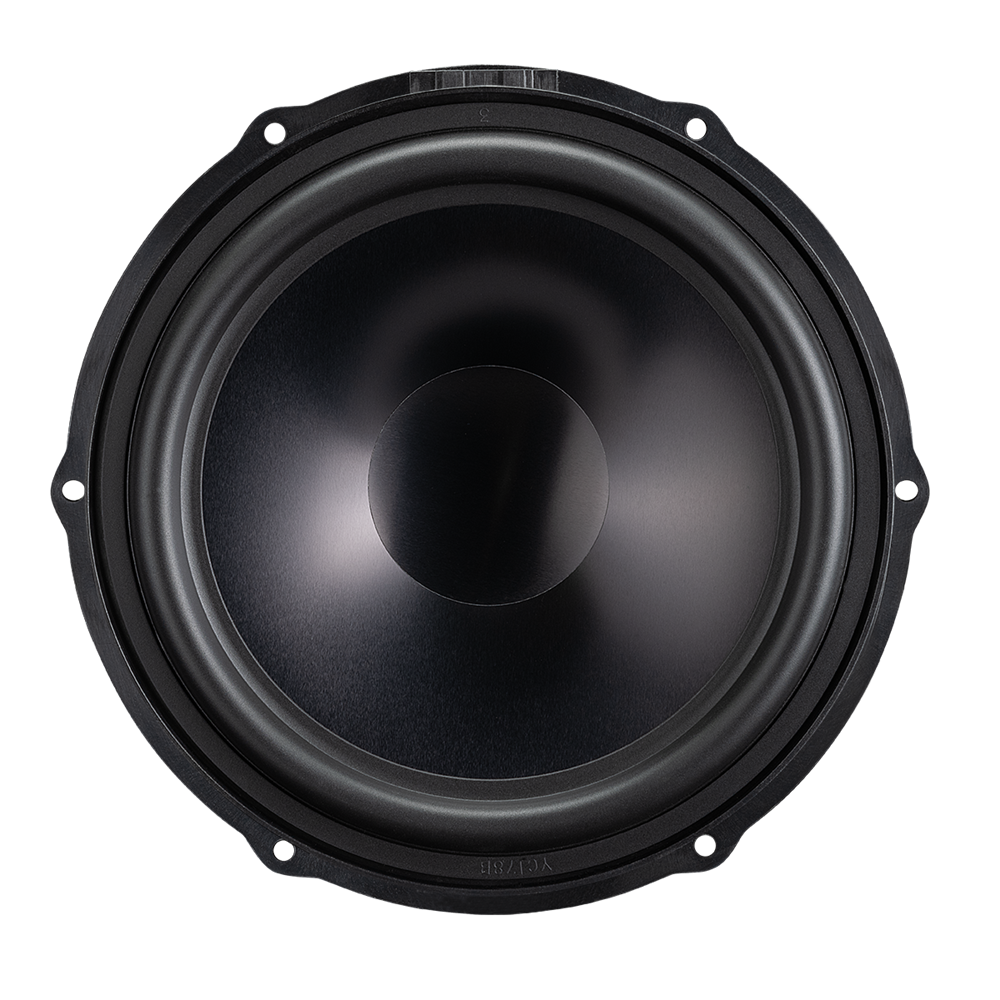

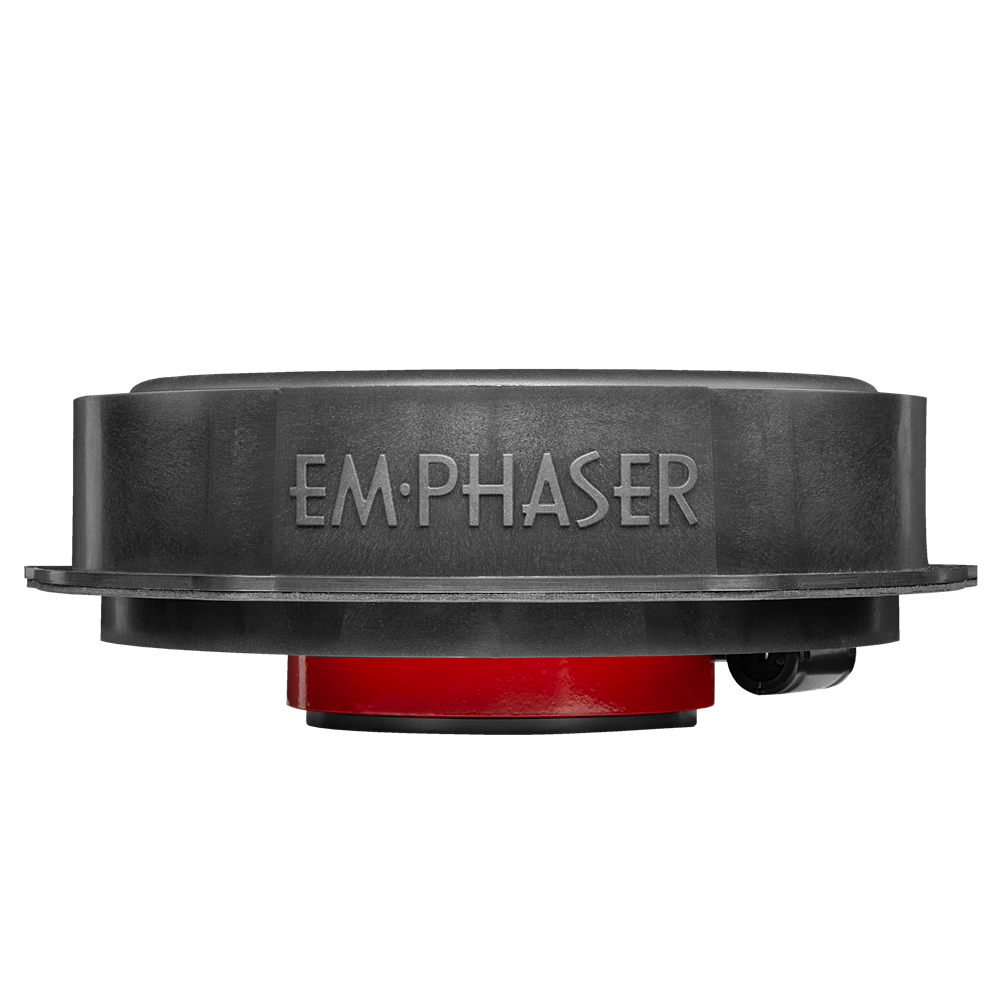

The woofer
Thanks to the aluminum cone, the woofer plays with extreme detail. Its light weight, rigidity, low distortion and high sensitivity contribute to the precise and accurate reproduction of music. The bass reproduction of the 20 cm woofer is particularly impressive. The crossover attached to the speaker basket not only simplifies installation, but also ensures that the sound is optimally tuned to the vehicle interior and that no valuable detail of the music is lost. The connection is made via the vehicle's original plug. The rivets included in the scope of delivery consist of a steel pin with an aluminum head for secure and effortless installation.

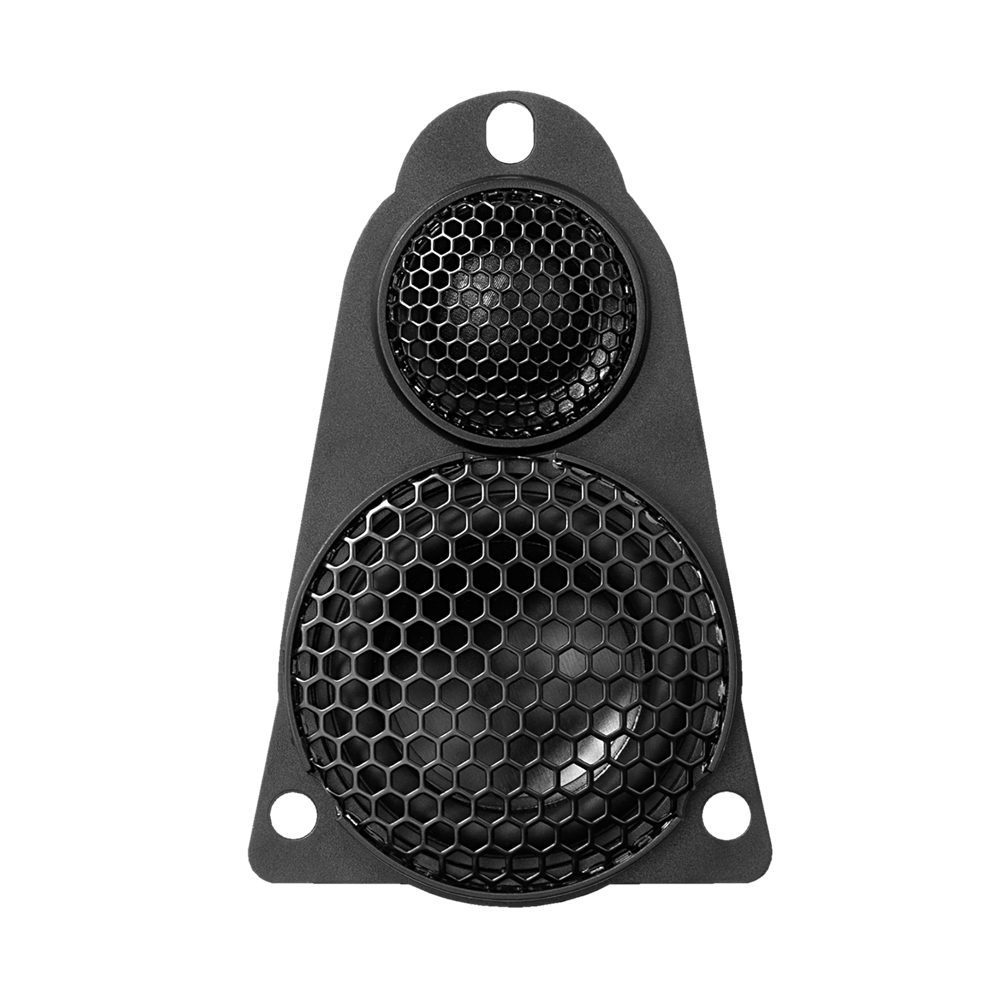

The midrange/tweeter unit

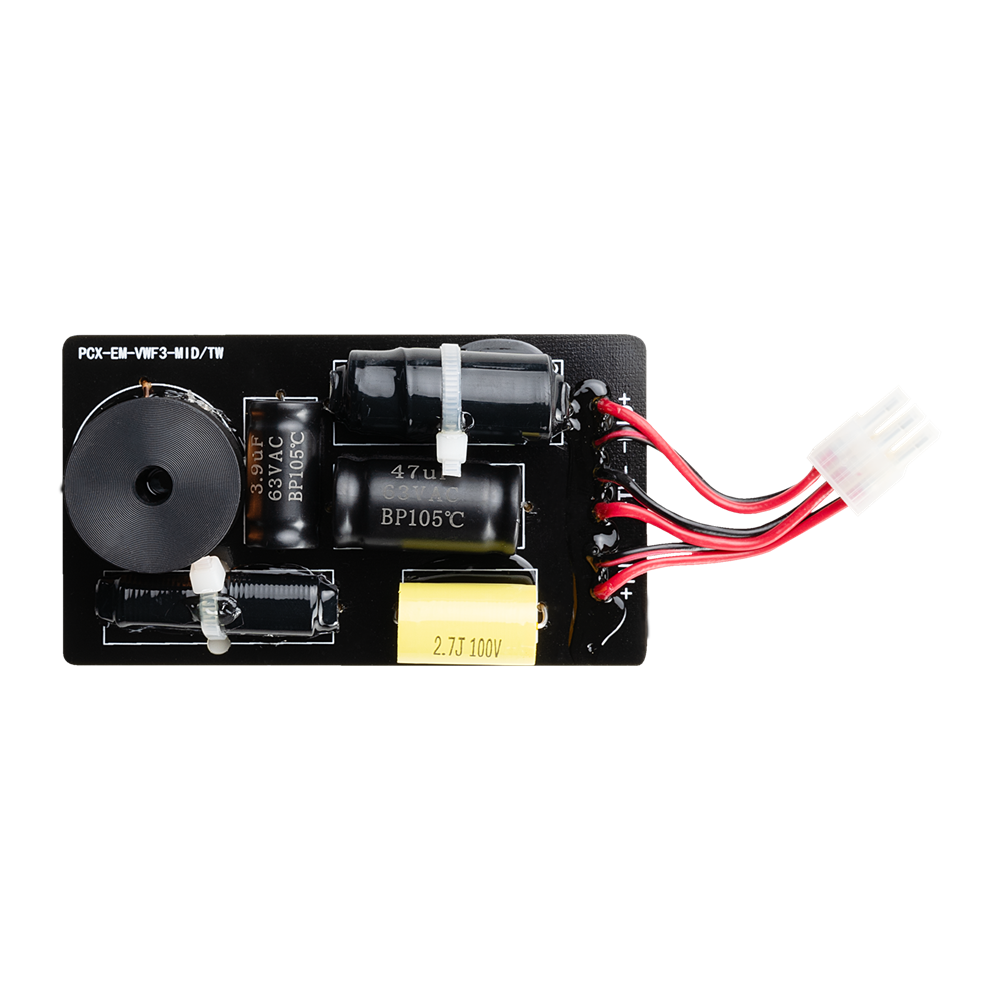

The aluminum cone of the midrange driver and the fabric dome of the tweeter offer a variety of advantages, including low distortion, even dispersion and a natural, warm sound character. These characteristics help you to experience the music in all its clarity and brilliance. We have paid particular attention to maximum ease of installation in the T5 dashboard: The crossover, connection cable and midrange/tweeter unit are separated from each other on both sides by contact-proof Molex connectors. The connection is made via the vehicle's original plug.
Our environmental contribution
The packaging consists entirely of cardboard. The accessories are packed in paper bags. This is not only sustainable, but also makes recycling easier.
Technical specifications:
3-way 20 cm component system
Frequency response: 50 Hz - 22 kHz
Nominal impedance: 3 Ohm
Sensitivity 1W/1m: 90 dB
Rated power: 100 W RMS
Scope of delivery:
2 mid/high unit
2 pieces crossover
2 woofers
