Varenr.: EM-VWF4
På lager hos os
Download manual
EM-VWF4

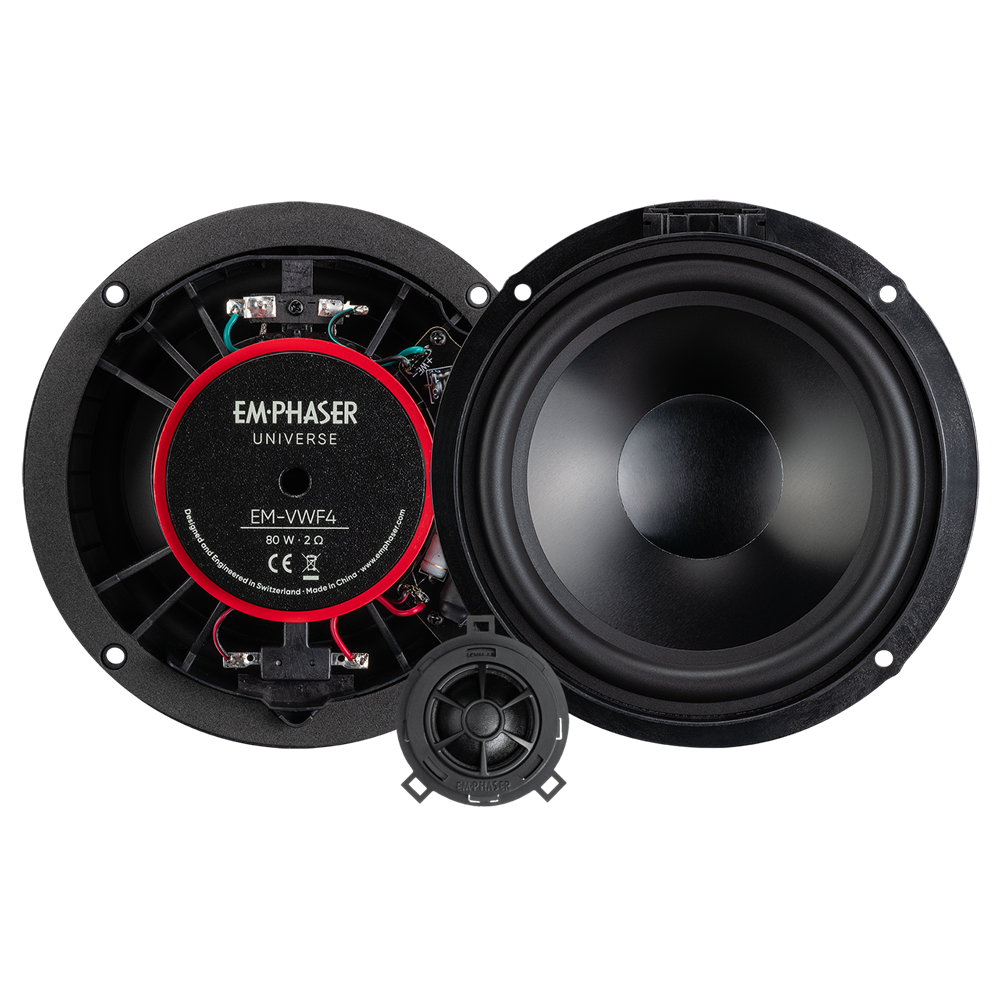

EMPHASER Universe 15 cm 2-way compo speaker set for VW T6.1
EMPHASER EM-VWF4 - the perfect sound system for the T6.1
The EM-VWF4 2-way speaker system for VW T6.1 consists of precisely fitting components and provides you with a fantastic sound image. Music enjoyment with room-filling bass and detailed sound - perfectly tuned for your next camper adventure trip.
Main features
15.5 cm 2-way component system
Suitable for Volkswagen T6.1 California and platform-related T6.1 models
vehicle specific connections
Optimized frequency response for true Hi-Fi sound
woofer with aluminum cone for detailed sound performance
durable Connex center spider and rubber surround
Powerful magnet, Faraday copper ring for stable magnetic field
25 mm voice coil on temperature-resistant polyimide voice coil former
25 mm tweeter with fabric dome and without ferrofluid cooling for highest brilliance and largest dynamic range
High-quality crossover mounted on the back of the basket
Crossover with 12 dB/6 dB filtering at 4'000 Hz

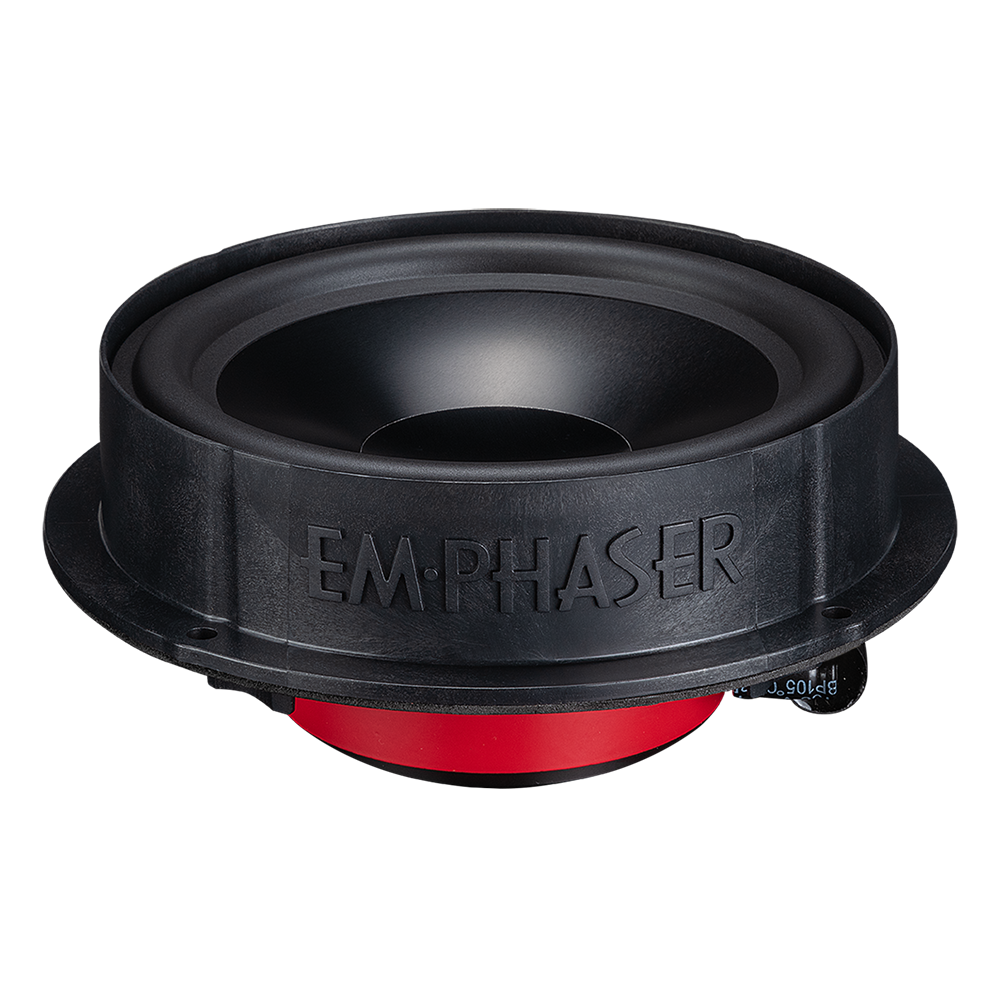

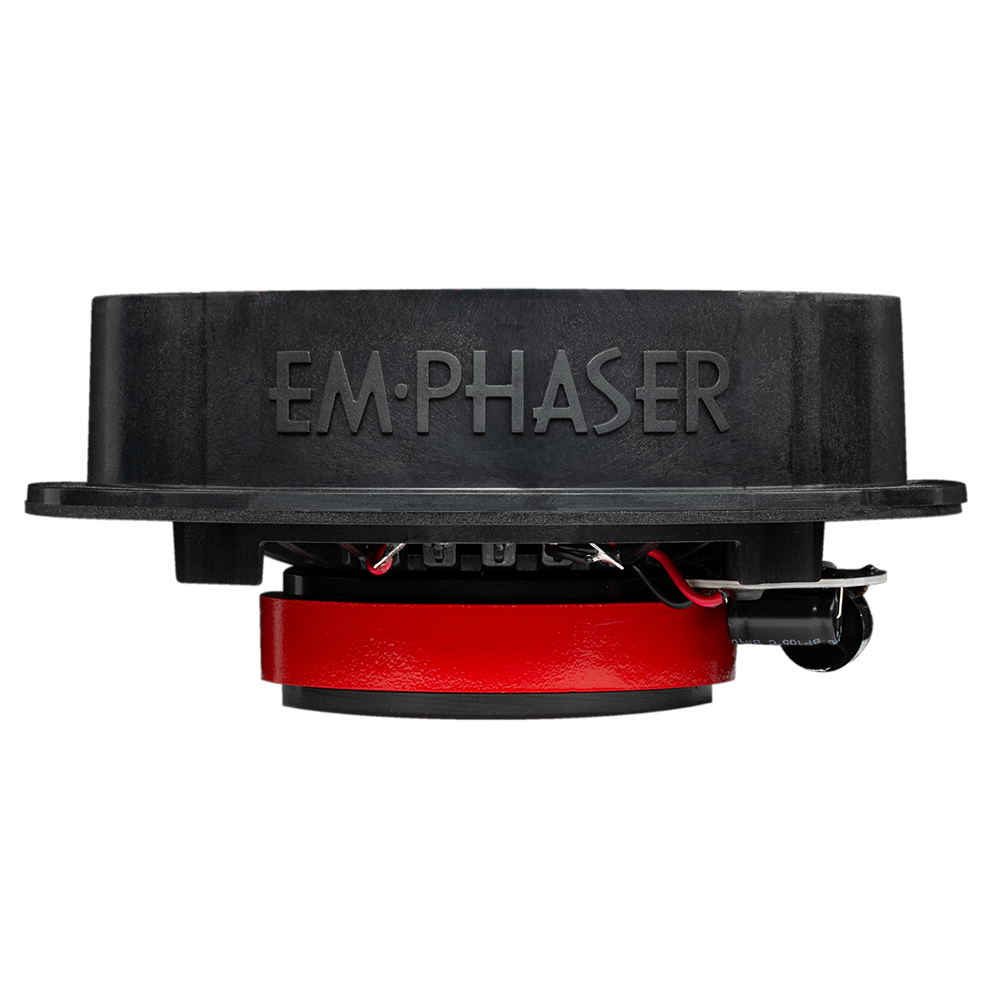

The bass-midrange driver

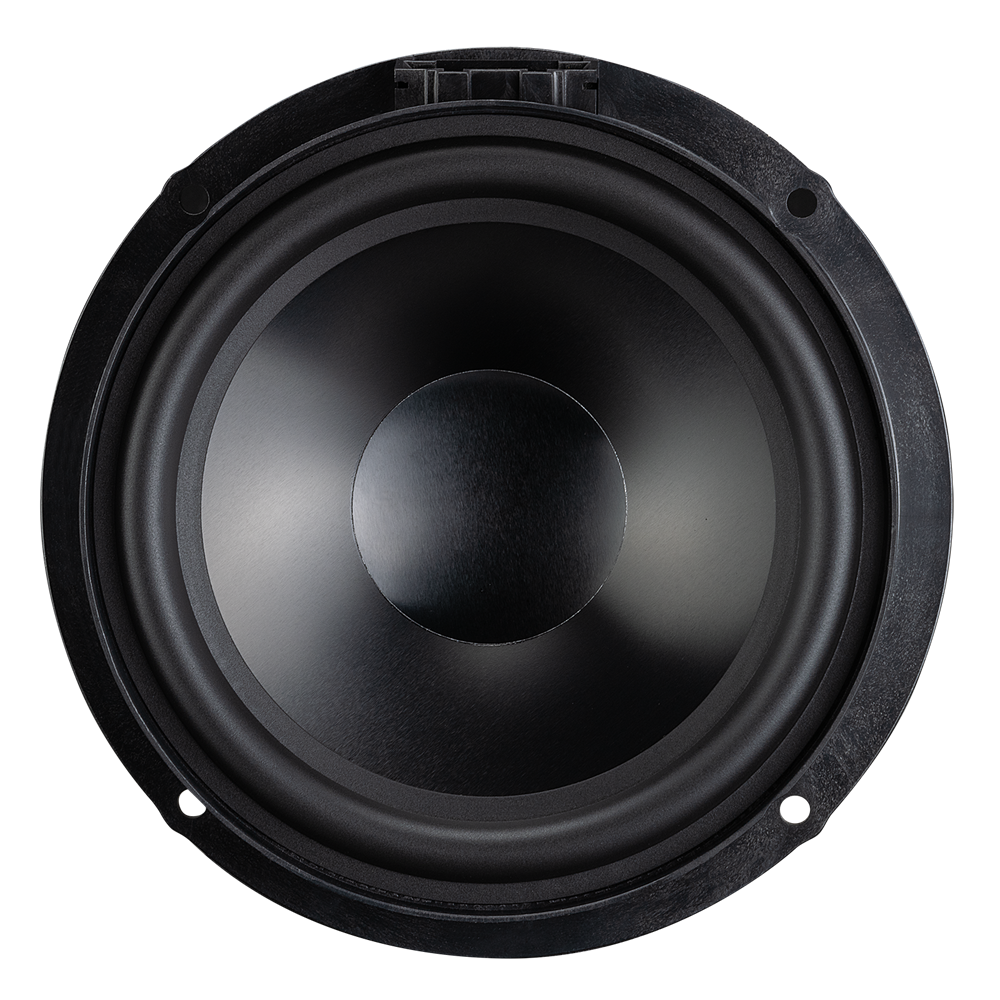

Thanks to our aluminum cone, the bass-midrange driver is extremely detailed. Its light weight, rigidity, low distortion and high sensitivity contribute to the precise and accurate reproduction of music or podcasts. The use of our aluminum cones ensures an impressive listening experience with high sound quality and detail.

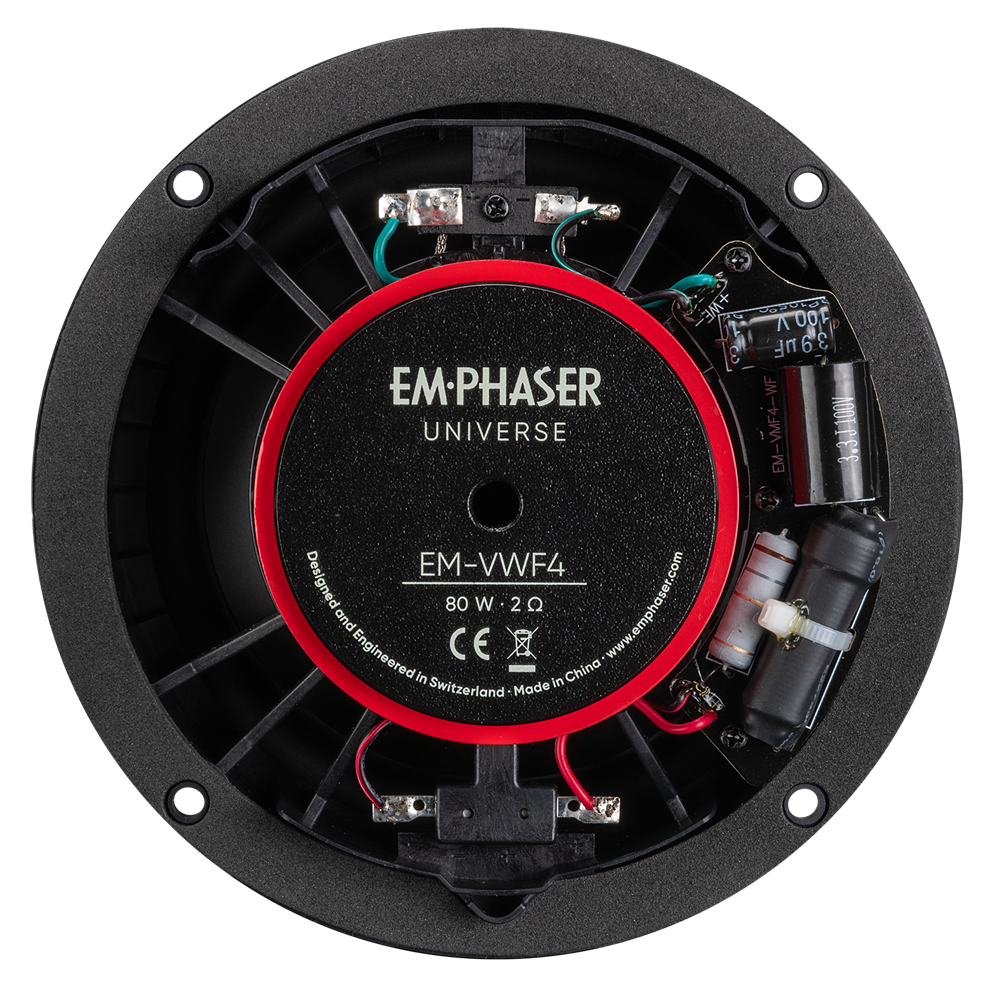

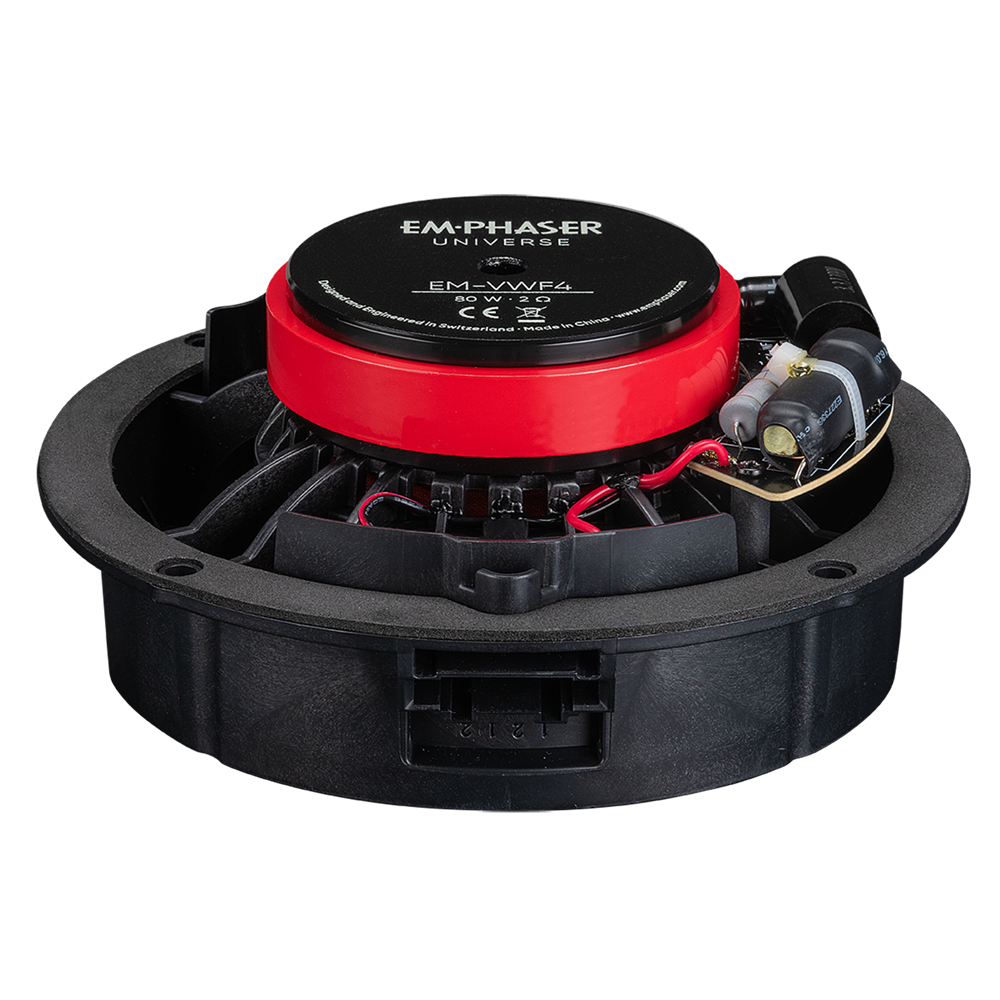

The crossover attached to the speaker basket not only simplifies installation, but also ensures that the sound is optimally tuned to the vehicle interior and that no valuable detail of the music is lost. The connection is made via the vehicle's original plug.

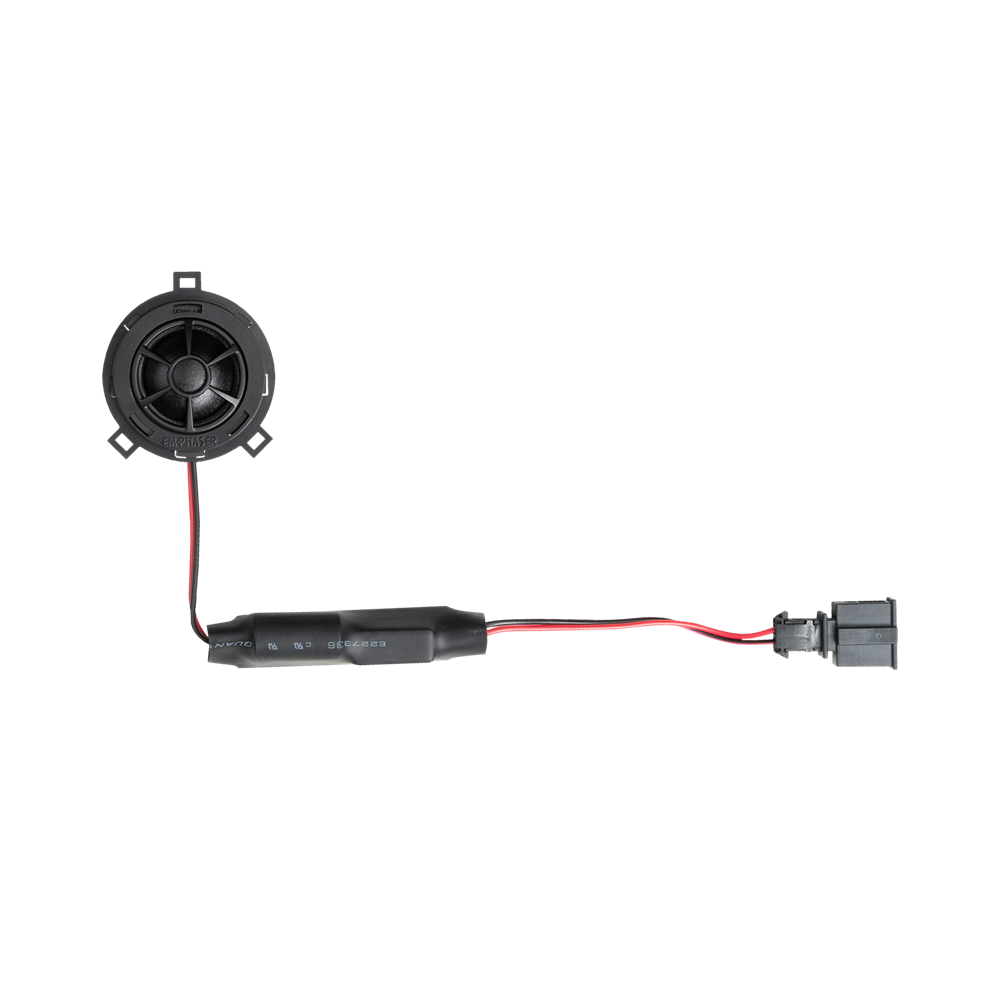

The tweeter
The fabric dome tweeter offers a number of advantages, including low distortion, even dispersion and a natural, pleasant sound character. Thanks to these properties, you can experience the music in all its clarity and brilliance.
As with the woofer, the crossover integrated in the cable ensures optimum sound and easy installation. The connection is also made via the vehicle's original plug.
Technical specifications:
2-way 15.5 cm component system
Frequency response: 70 Hz - 22 kHz
Nominal impedance: 2 Ohm
Sensitivity 1W/1m: 90 dB
Rated load capacity: 80 W RMS
Scope of delivery:
2 pieces tweeters
2 bass-midrange speakers
8 pieces rivets
