Varenr.: dab-bs1
På lager hos vores leverandør
Komplet antenne kit der leveres med alle kabler så man kan bygge den almindelige fm antenne om til at også at kunne tage Dab signaler.
DAB-BS1

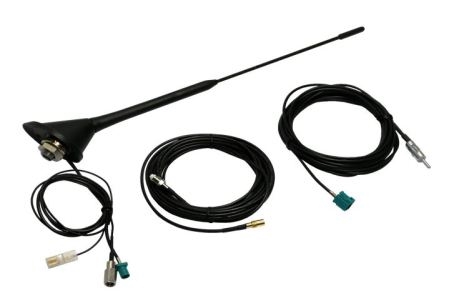

DAB AM/FM Bee Sting Antenna
OEM style roof mounted Bee Sting antenna that can be mounted in the original factory location. 5 metre RG174 extension cables included
Antenna Connectors
- AM/FM - Universal Water Blue (Code Z) Fakra connector (Male)
- DAB - FME connector (Male)
Extension Cable Connectors
- AM/FM – Universal Water Blue (Code Z) Fakra connector (Female) to DIN (male)
- DAB – FME (Female) to SMB (Male)
Specifications
- AM Frequency Range 520KHz~1710kHz
- FM Frequency Range 87.5~108MHz
- DAB Band III Frequency Range 150~240MHz
- AM Gain 12±3dB
- FM Gain 5±3dB
- DAB Band III Gain 20±3dB
- Operating Voltage 10.5v-16v
