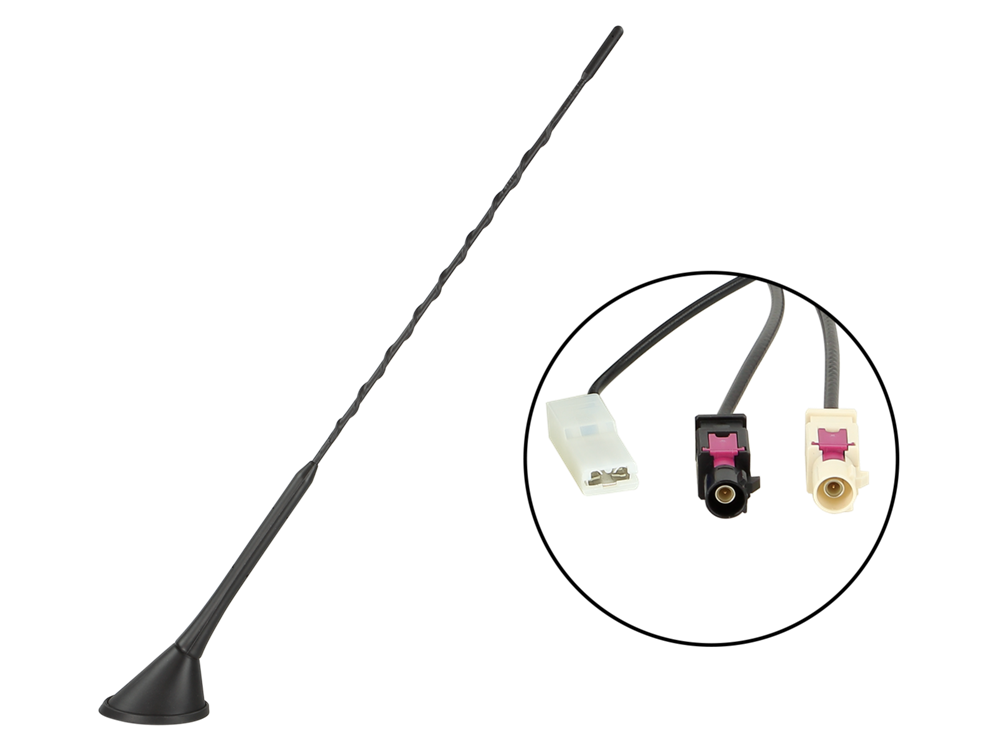

CALEARO COMBI DAB/FM AKTIV 60°

Roof antenna AM/FM DAB/DAB+

Style 16V
Reception Mode:
AM/FM
DAB/DAB+

Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
rod length: 410 mm
rod inclination: 60°
rod type: antinoise
thread: M6

Dimensions:
total high: 450 mm
antenna socket: L = 60 mm / B = 43 mm

Connections:
AM/FM: Fakra B(m) white RG174 / 180 mm
DAB/DAB+: Fakra A(m) black RG174/ 200 mm
power supply external: blade terminal 6,3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB/DAB+: 174 MHz - 240 MHz

Benefit (dB):
DAB/DAB+ III Band 18dB

Power supply:
AM/FM: +12V external
DAB/DAB+: 12V external

Power consumption:
AM/FM: 75 mA max
DAB/DAB+: 75 mA max

Impedance:
AM/FM: 50 Ohm
DAB/DAB+: 50 Ohm

VSWR:
AM: <5:1
FM: <7,5:1
DAB/DAB+: <3:1
