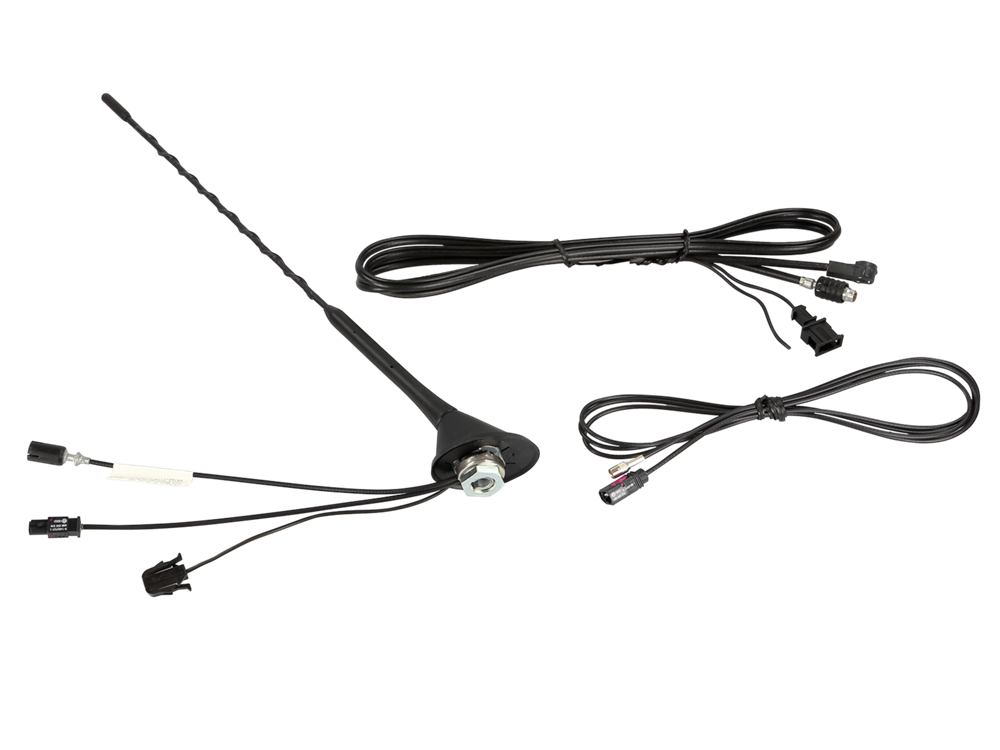

CALEARO COMBI DAB/FM aktiv 60° MED ISO(M)/SMB(F) STIK (2M KABLER)

Roof antenna AM/FM / DAB/DAB+

Style 16V

AM/FM 12V external power
DAB/DAB+ 12V

Installation point: rear roof
Drill hole: Ø 19mm / 15mm x 15 mm r 2 mm
Rod length: 41cm / 60°

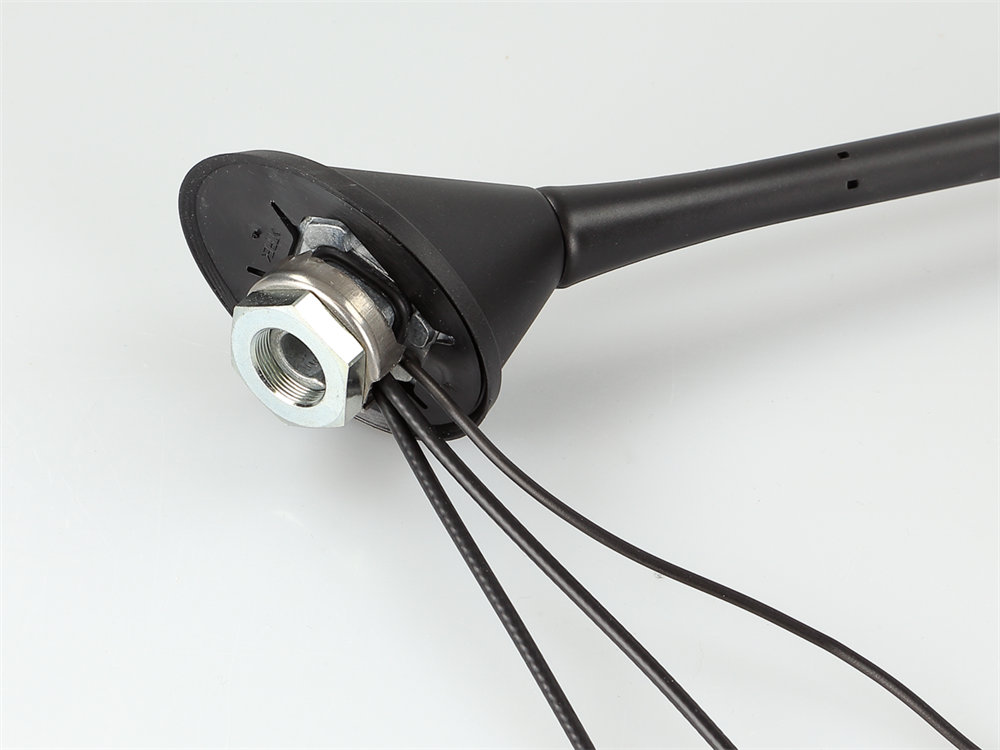

Antenna socket: L 6 cm / W 4,3 cm

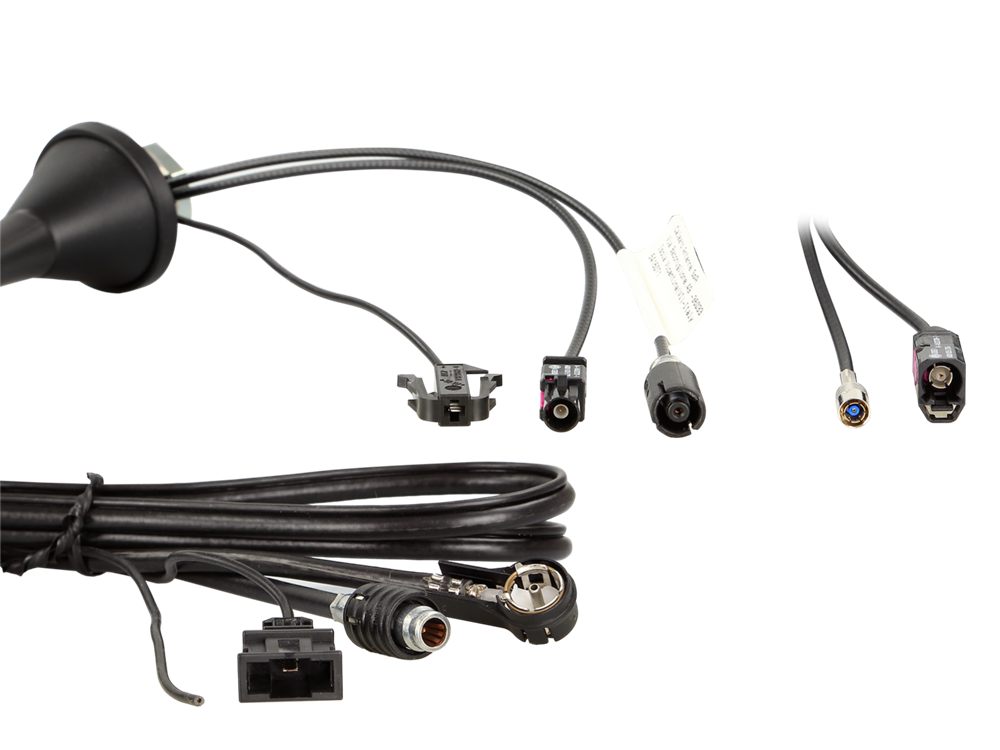

DAB connector: Fakra(m) / cable: 2 m fakra(f) > SMB(f)
AM/FM connector: HC97(f) (Raku2) / cable: L - 2 m HC97 (m) > ISO(m)

Frequency range:
AM 0,15 - 1,71 Mhz
FM 87,5 - 108 Mhz
DAB/DAB+ iii Band 174 - 240 MHz

benefit (dB):
DAB/DAB+ iiiBand 18dB

power consumption:
50 mA max

optional item no. (AM/FM / DAB+ cable)
15-7581119 (DIN) 5,6 m
15-7581139 (FAKRA) 5,6 m
15-7581141 (SMB) 5 m

Replacement stick without foot: 15-7551040
