AXTON SPECIFIC ATS-FT160C – Impressive HI-FI for FIAT Ducato

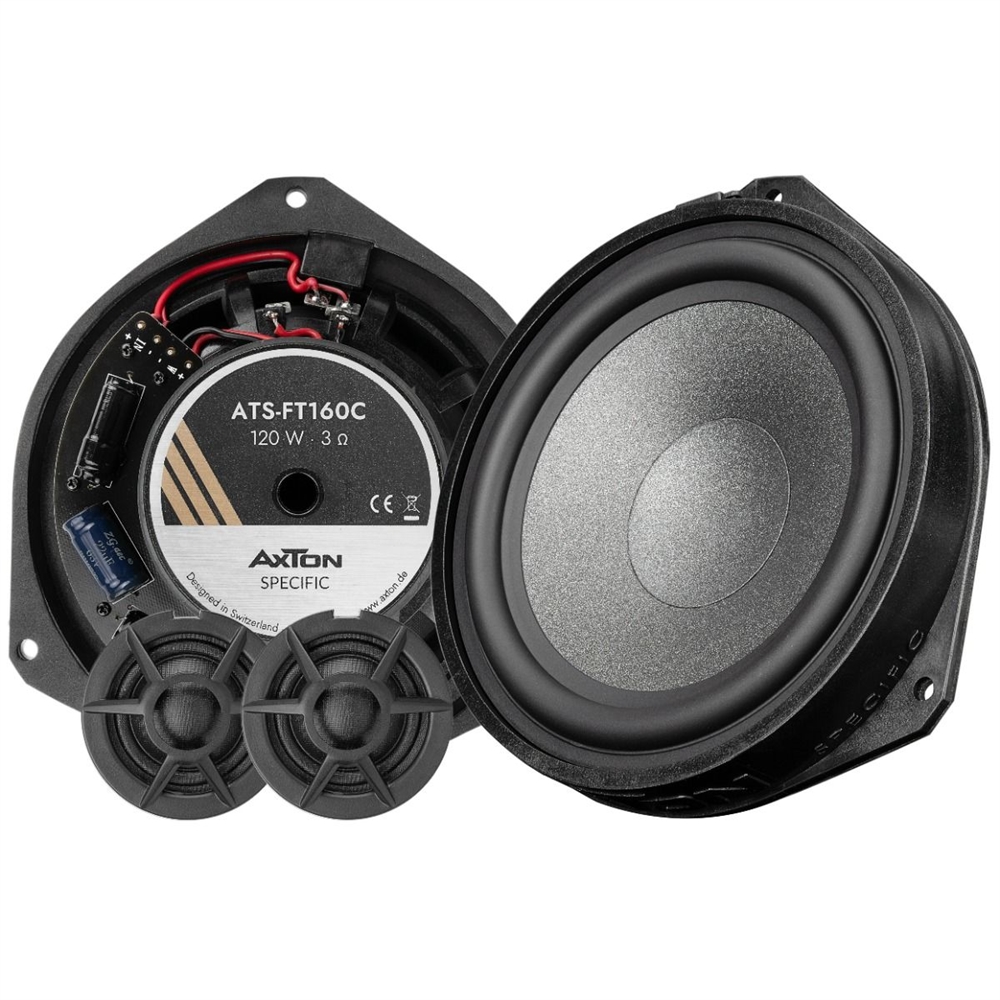

The ATS-FT160C is a custom-fit 2-way Plug & Play component system from the SPECIFIC series, designed for the popular Fiat Ducato and similar models. SPECIFIC doesn’t just mean a perfect fit and matching connectors, but also a vehicle-optimized acoustics. Replacing the original factory system with the ATS-FT160C is incredibly simple. The components fit perfectly into the respective speaker mounts and are easily connected to the original plugs.



The Woofer

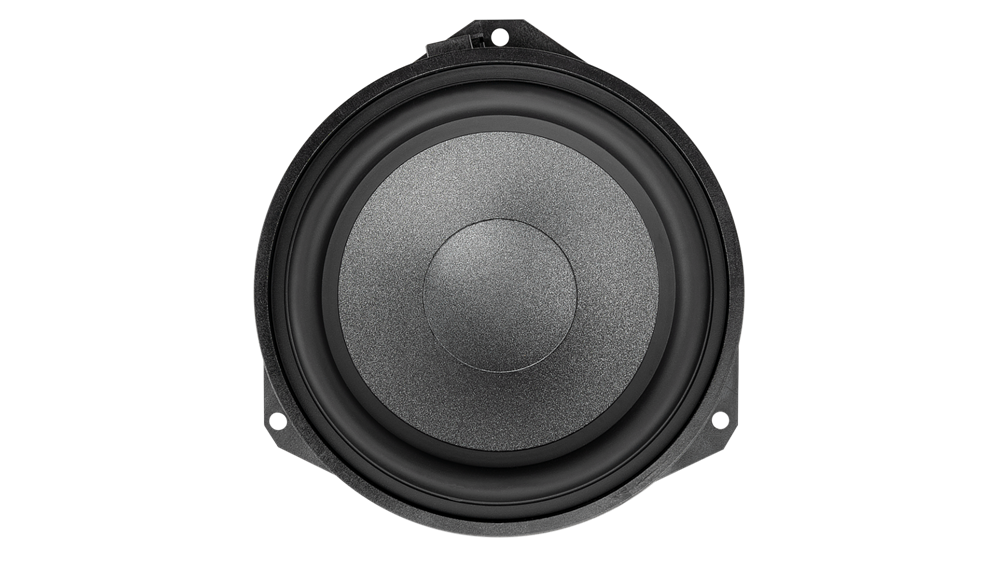

The 16.5 cm woofer is equipped with AXTON’s proven CRYSTAX membrane. The naturally warm-sounding paper diaphragm gains increased stiffness through the additional coating of quartz crystals, resulting in more impulsive bass reproduction and faster response. The woofer thus sounds very harmonious while still being precise; it clearly highlights instruments and voices, which is particularly valuable for lively music or audiobooks.



For Tech Enthusiasts
The intensive development work on the ATS-FT160C woofer is also impressive on paper. Klippel measurements show an extraordinarily high level of symmetry in the motor force (Bl) and suspension stiffness (Kms). Even at high excursions, the same forces act on the suspension both when the membrane moves inward and outward, which is a key element for natural and distortion-free music reproduction.
For optimal use in the vehicle door, the woofer was tuned to a low Fs of 54 Hz and a Qts of 0.65. This results in high output stability and powerful bass while giving the midrange a particularly harmonious and relaxed sound.



The Tweeter

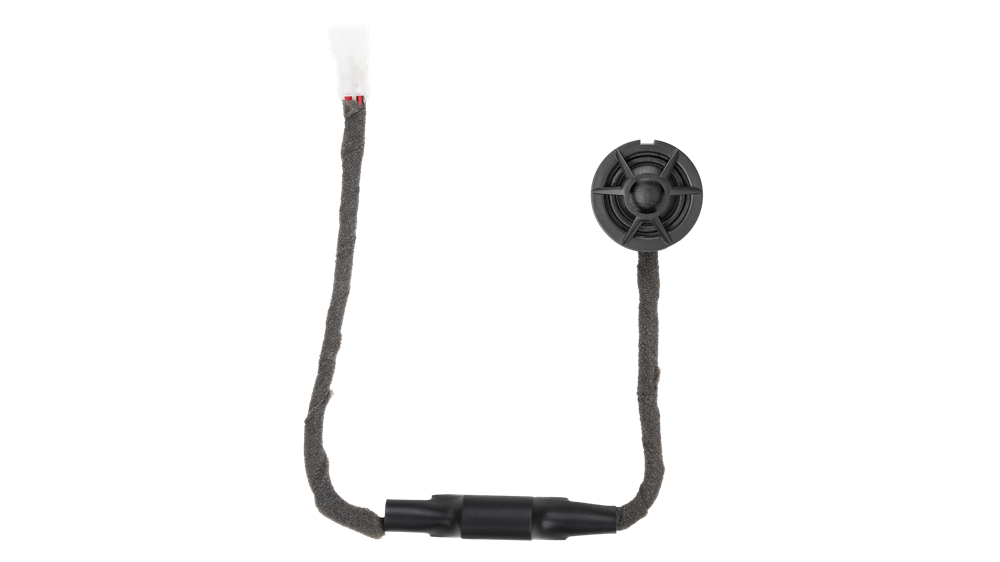

The tweeter features a 20 mm fabric dome and impresses with its brilliance and spatial reproduction. The soft suspension in a delicate fabric surround allows the dome to provide fine detailing of music up to over 22 kHz. Thanks to its vehicle-specific design, it fits perfectly into the original mount, where it is easily clipped in. For added safety, the connection cables are wrapped in foam tape, and the connector fits perfectly into the original socket.



The Crossover
The crossover is crucial for a proper acoustic connection between two components. A good crossover ensures a stable and balanced sound image.

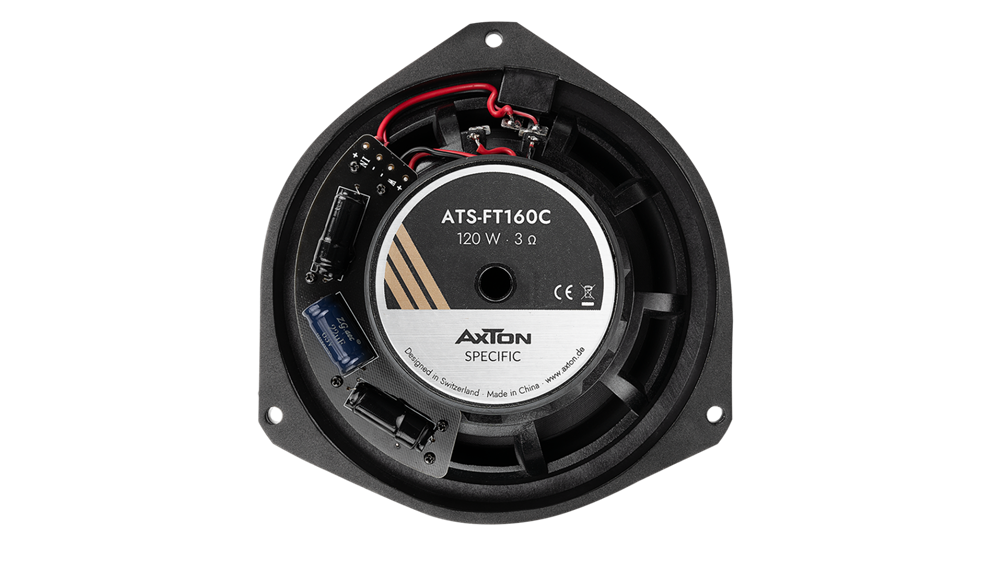

The woofer's crossover requires only a 6 dB filter and is complemented by an LCR circuit to adapt the woofer to the acoustic characteristics of the Ducato vehicle. The components sit on a stable, double-sided printed circuit board, which is securely screwed to the speaker basket.
The tweeter is coupled with a high-quality MKP capacitor. It is also mounted on a printed circuit board to ensure high durability of the tweeter assembly.



DSP Settings for the Ultimate Hi-Fi Experience
The ATS-FT160C is the first system from the AXTON SPECIFIC series with a preset available in the AXTON DSP amplifier apps A544DSP and A594DSP for use in the Fiat Ducato. This sound profile utilizes time alignment and multiple equalizer bands to perfect the sound in the Fiat Ducato. The presets are available for free in the A544DSP or A594DSP app.

You want more information about the sound package? Please read our blog in your leisure.

Highlights
Woofer
16,5 cm / 6,5" woofer
OE-fitting composite basket
OE-fitting connectors
6 dB/Oct. on-board crossover with LCR circuit
AXTON CRYSTAX membrane
Strontium-ferrite magnet
NOMEX spider
25 mm voice-coil
rubber surround
Tweeter
20 mm fabric dome with fabric surround
Ferrofluid cooled voice-coil
OE-fitting connectors
6 dB/oct. in-line tweeter cable crossover
Spezifikationen
Impedance: 3 ohms
Rated power handling: 80 W RMS
Frequency response: 55 Hz - 22 kHz
Sensitivity 1W/1m: 90 dB


COMPATIBILITY
Citroen Jumper II as of 2006

Fiat Ducato III as of 2006

Peugeot Boxer II as of 2006

Ram Pro Master as of 2013

Opel/Vauxhall Movano as of 2021

Front doors only.



Find your vehicle in our Configurator on our Homepage

With minor adjustments when fitting the tweeter, the ATS-FT160C also fits into the front doors of the following vehicles: Fiat 500, Grande Punto, Panda, Punto, Punto Evo and Tipo.
