Varenr.: ATW16
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,519,00  DKK
På lager hos os

Download manual

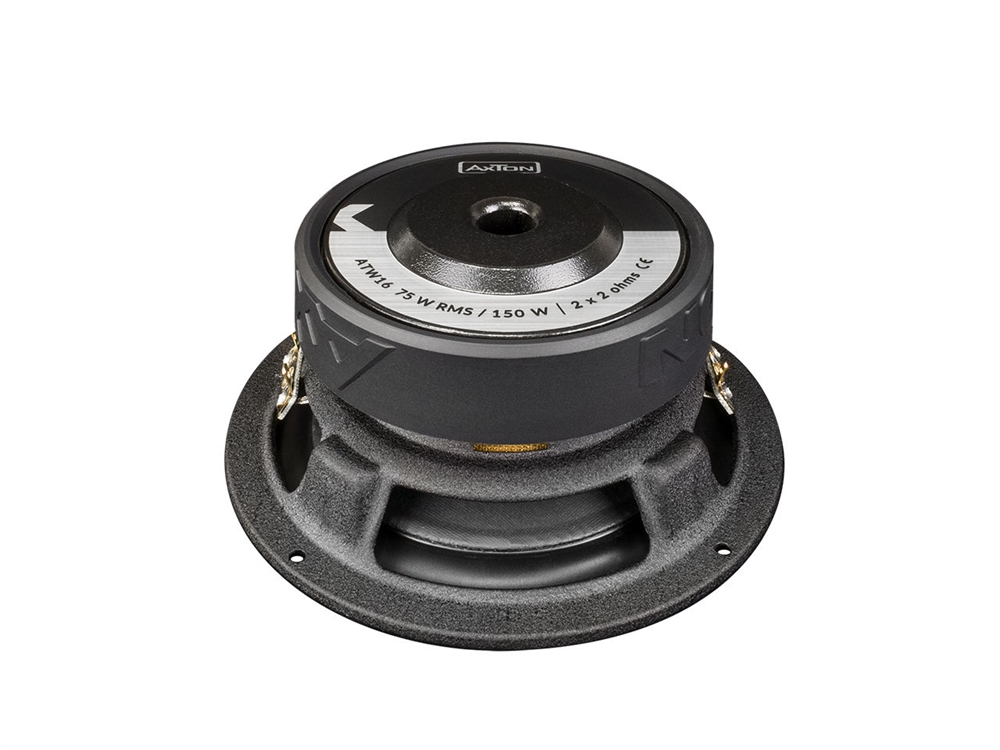

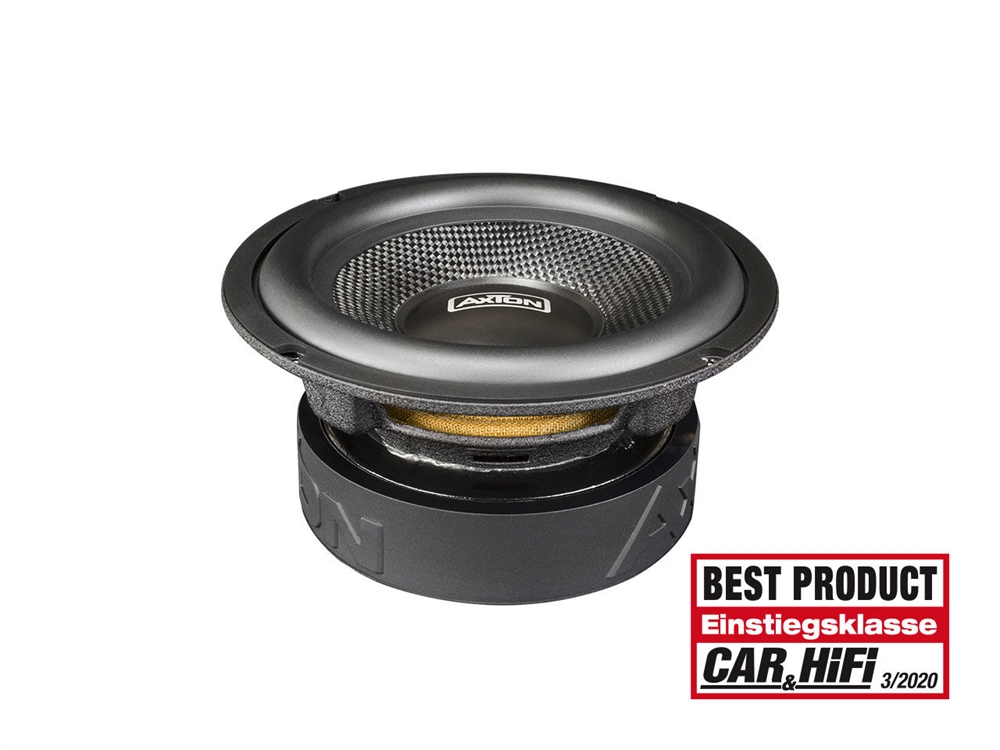

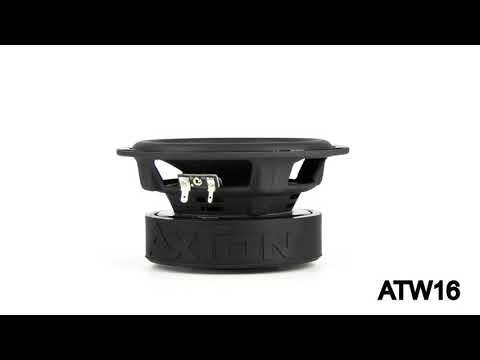

All about the ATW16 subwoofer
Small subwoofers are all the rage. With the two models ATW16 and ATW20, AXTON has two universally applicable subwoofer chassis in its range, which can be installed in a bass-reflex subwoofer enclosure or used as the woofer of a 3-way system. The stiff glass fibre/foam/paper sandwich cone in combination with the powerful 120 mm magnetic drive unit offers a powerful and powerful bass reproduction. The rear-ventilated sheet steel basket and the pole core hole increase the cooling capacity for the 1.5" voice coil, resulting in a continuous power handling of 75 W RMS. With the 2 x 2 Ohm voice coil, various useful connection variants are also possible. Further features include the use of durable Connex centering spiders, rubber beads and corrosion-resistant, gold-plated solder/plug-in contact terminals.
Extremely powerful 120 mm single magnet
High strength glass fibre/foam/paper membrane
38 mm double voice coil with copper wire
Temperature resistant polyimide voice coil former
Ventilated sheet steel basket
Durable ConnexTM centering spider and rubber surround
Corrosion-resistant, gold-plated contact terminal
Magnetic protection with AXTON logo
Low installation depth 79 mm
Frequency Response
65 - 400 Hz
Nominal impedance
2 x 2 Ohm
Sensitivity (1 W/1 m)
84 dB
Rated load capacity
75 W RMS
Maximum load capacity
150 W max
Mounting diameter
145 mm
Installation depth
79 mm
