Varenr.: SPX700X4
På lager hos os
Download manual

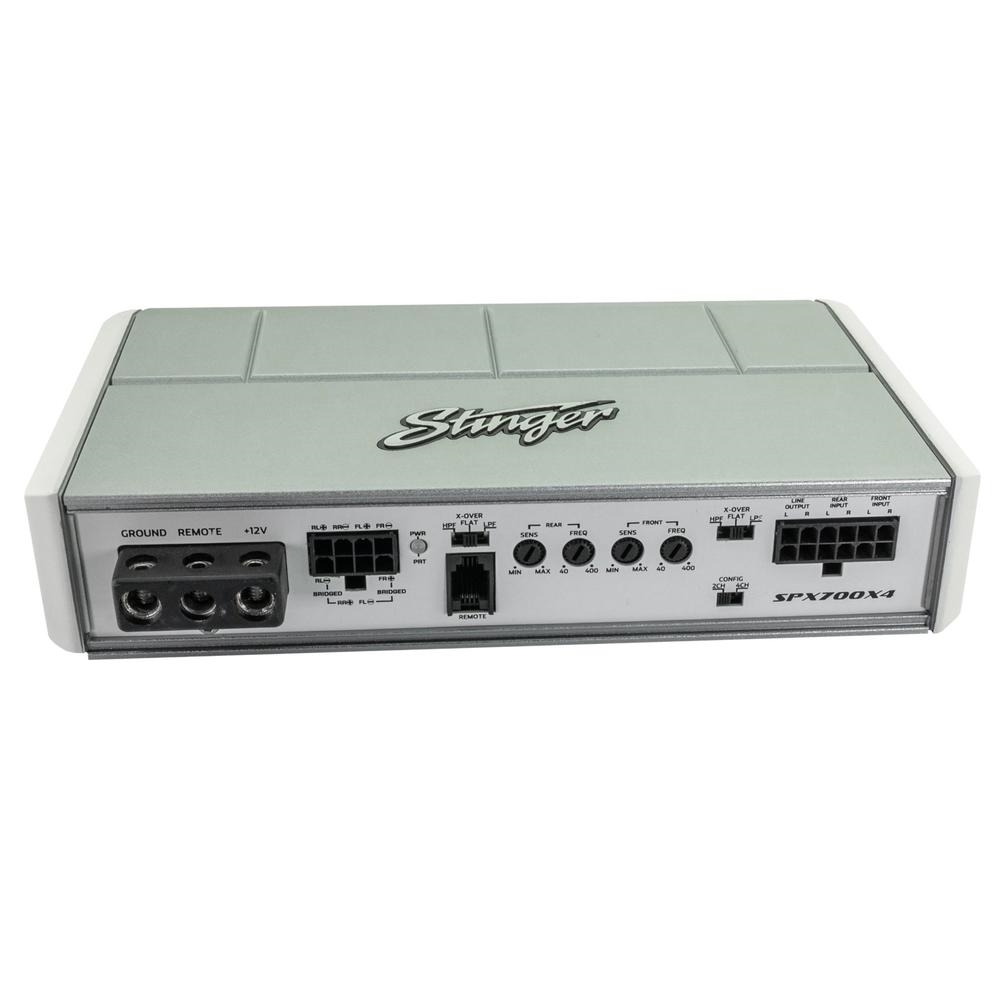

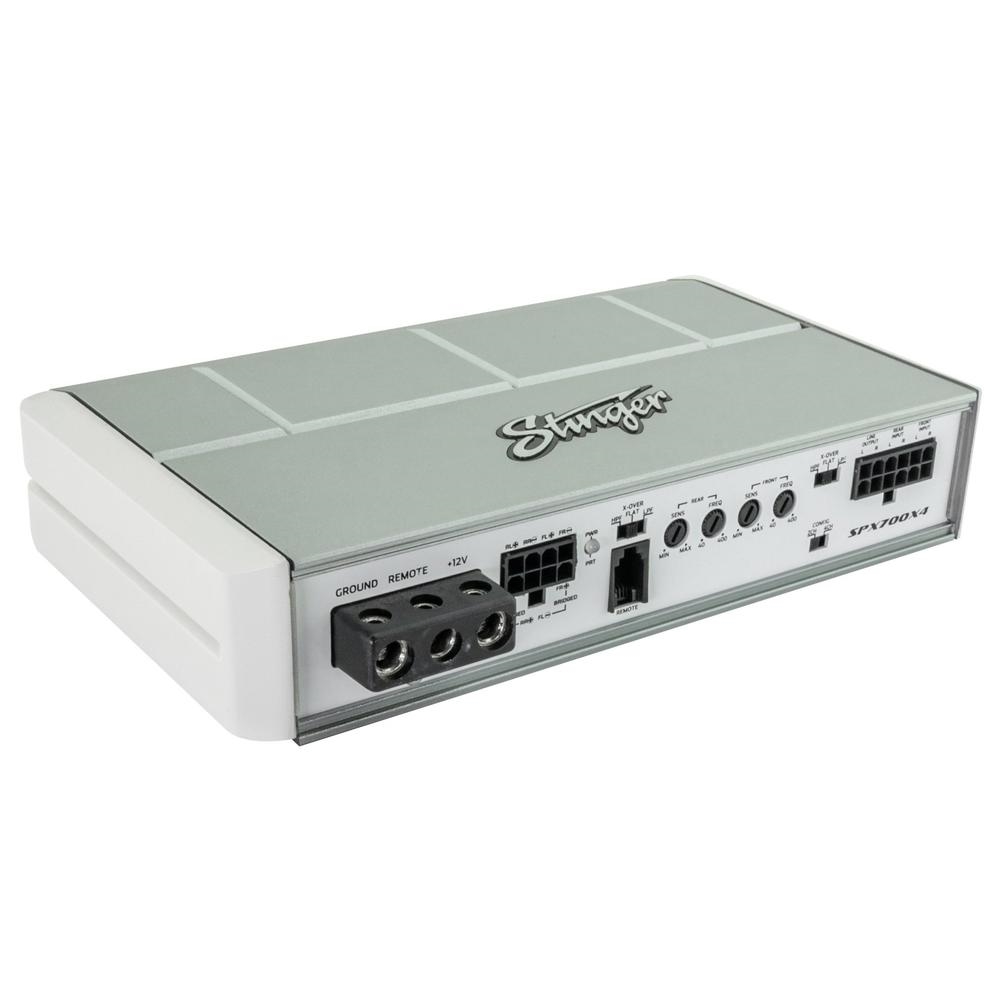

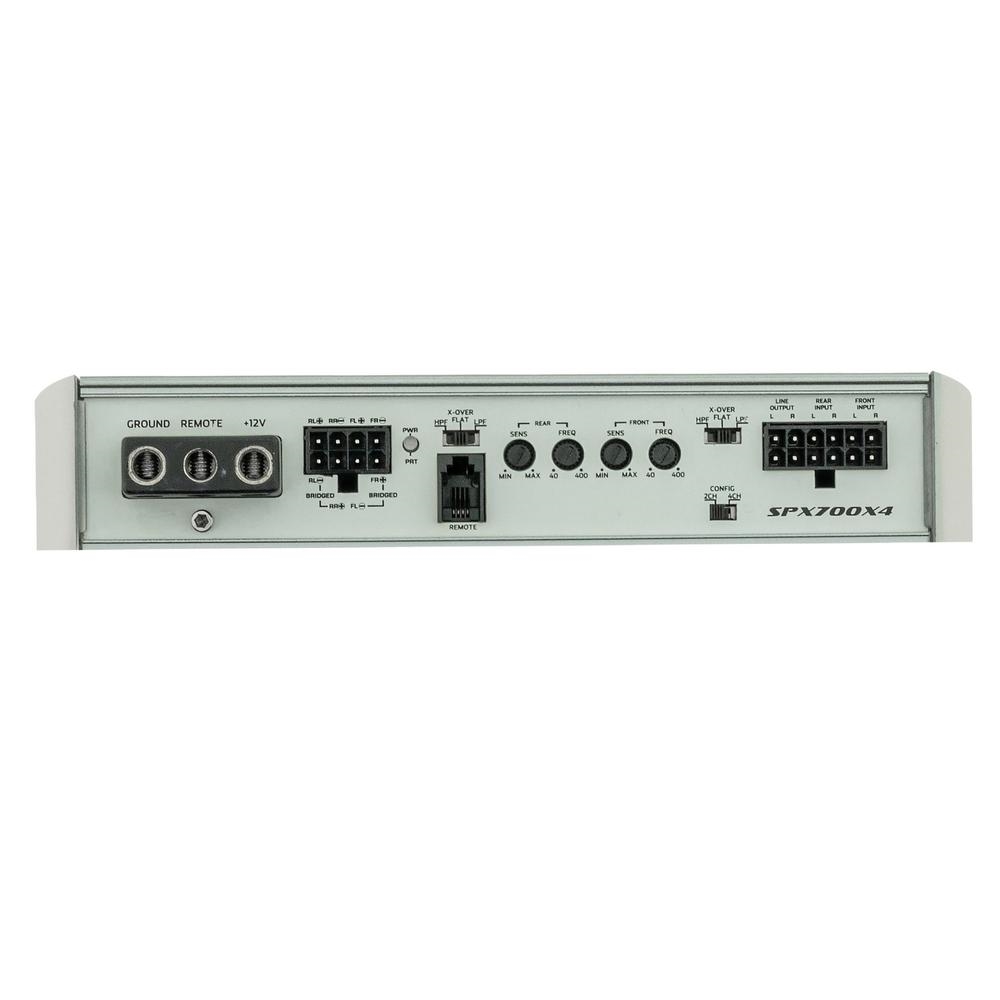

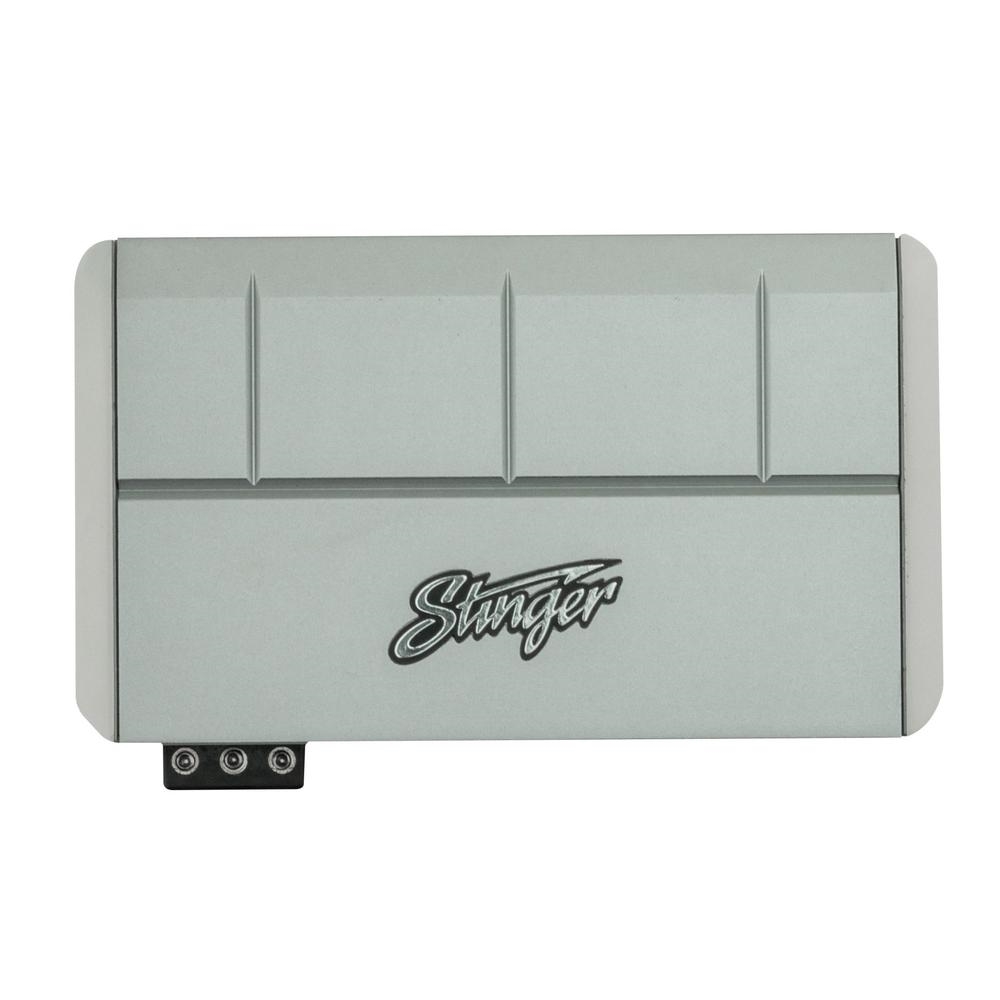

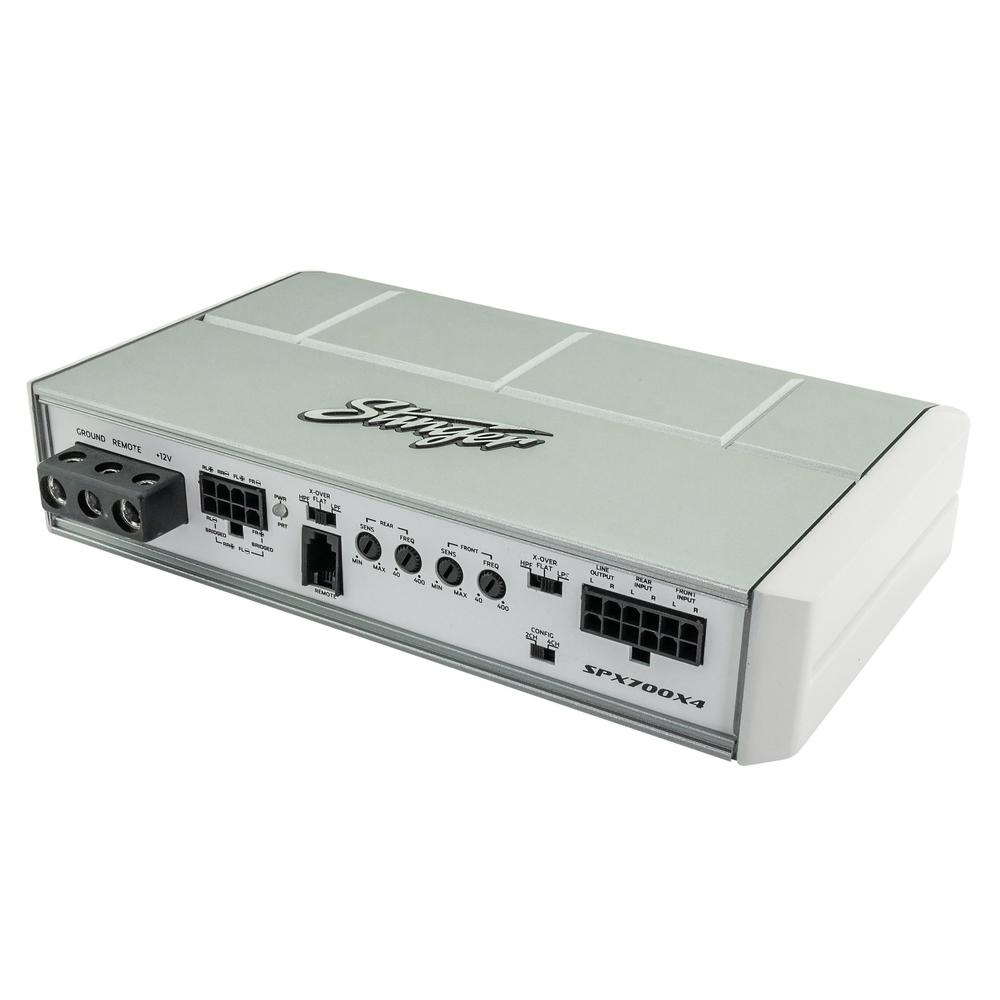

Compact weather-resistant amplifier delivers massive power with minimal size, extreme durability built to withstand the harsh environments you'll meet on the sea, lake, or wherever your water adventure takes you. Featuring an unregulated power supply and a weather-resistant design. Use the mute function / level control on the rear channels when you want a better sense of what's going on around you without losing all your tunes or adjust the output level of a subwoofer. Add additional amplifiers with minimal wiring thanks to the Aux output RCA’s and you can even stream Bluetooth directly to this mighty amp just by adding an iSimple ISBT23 Weather Proof BT receiver to your set-up.
Features
Target Voltage: 8-16 Volts
350x2 at 4 Ohm 175x4 at 2 Ohm 125x4 at 4 Ohm
3CH MODE: 350x1 at 4 Ohm + 175x2 at 2 Ohm or 125x2 at 4 Ohm
Perfect for motorcycles, ATV, marine and mobile applications
Small footprint with a low profile
IPX-4/5 weather-resistant design
Full range Class D
Unregulated power supply
Aux RCA output (to link to additional amplifiers)
Diecast endcaps with removable mounting feet

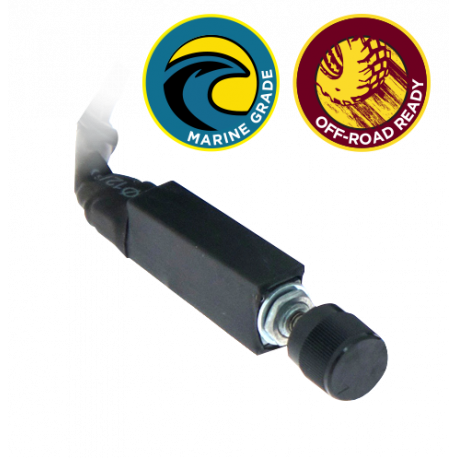

Volume control with mute function (rear channels only)
Robust 16 gauge Marine Grade harness with quick connectors for seamless installation
RMS Power (14.4Vdc ≤1% THD):
125 x 4 @ 4 ohm Stereo
175 x 4 @ 2 ohm Stereo
125 x 2 @ 4 ohm Stereo +
350 x 1 @ 4 ohm Bridged* (Rear Channels only)
Lowest Recommended Load:
4 ohm Bridged* or 2 ohm Stereo

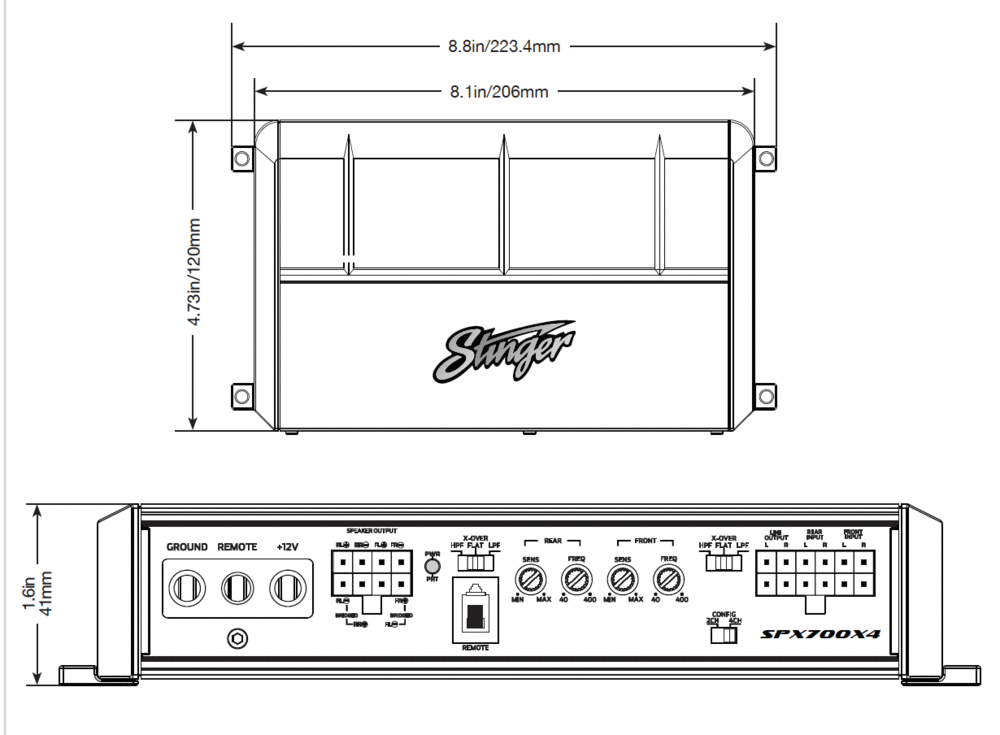

Dimensions
215mm L x 130mm W x 41mm H
8.5” L x 5.11” W x 1.6” H
Specs
Frequency Response: ± 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >110dB
High and Low Pass Crossovers: 12dB per Octave
Low Pass Crossover Range: 40Hz to 400Hz
High Pass Crossover Range: 40Hz to 400Hz
Input Range: 200 millivolts to 12 volts
Typical Efficiency: 80%
Damping Factor: Greater than 200
Recommended Fuse Size: 60 amp
Power/Ground Wire Size: 8 Gauge
