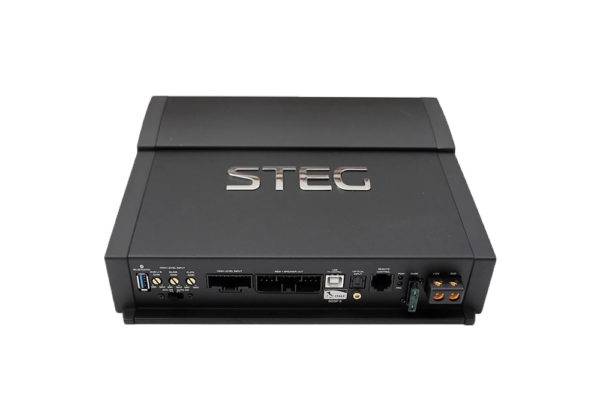

STEG SDSP-6 FORSTÆRKER MED DSP 6 KANAL

RMS Power Rating at 14.4V, < 1% THD
6x 100W (4Ω)
6x 180W (2Ω)
DSP 64Bit, 295 MHz, 48 kHz sampling rate
Powerful software to set all DSP functions in a single page
Start-Stop ready
1x Stereo RCA Input (A/D BurrBrown)
Power & Protection Indicators
Compact device
Optional: DRC controller, operate via Bluetooth
Technical data
Inputs:
2x RCA / AUX in
6x Highlevel speaker
1x Optical SPDIF
1x Remote
Input Sensitivity:
RCA 400mv 1x COXA
Highlevel 5-10 V or 10-20 V
Outputs:
6x Speaker
2x RCA
Remote
Output Voltage RCA: >5V RMS
Frequency Response: 20 Hz - 22.000 Hz
DSP resolution: 64 Bit
DSP power: 295 MHz (1,2 billion MAC operations/s)
Sampling rate: 48 kHz
Signal converters:
A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input: 105 dB (A-weighted)
Signal-to-noise ratio analog input: 100 dB (A-weighted)
Distortion (THD): < 0,015%
Damping factor: >70
Input impedance RCA: 22 kOhms
Input impedance highlevel: 200 Ohms
Operating voltage: 9-15 V (max. 5sec. down to 6 V)
Dimensions (W x D x H): 281 x 210 x 57,5 mm
