RAT INTERFACE TIL FORD TRANSIT MED DISPLAY 2015 > (ALL INCL)

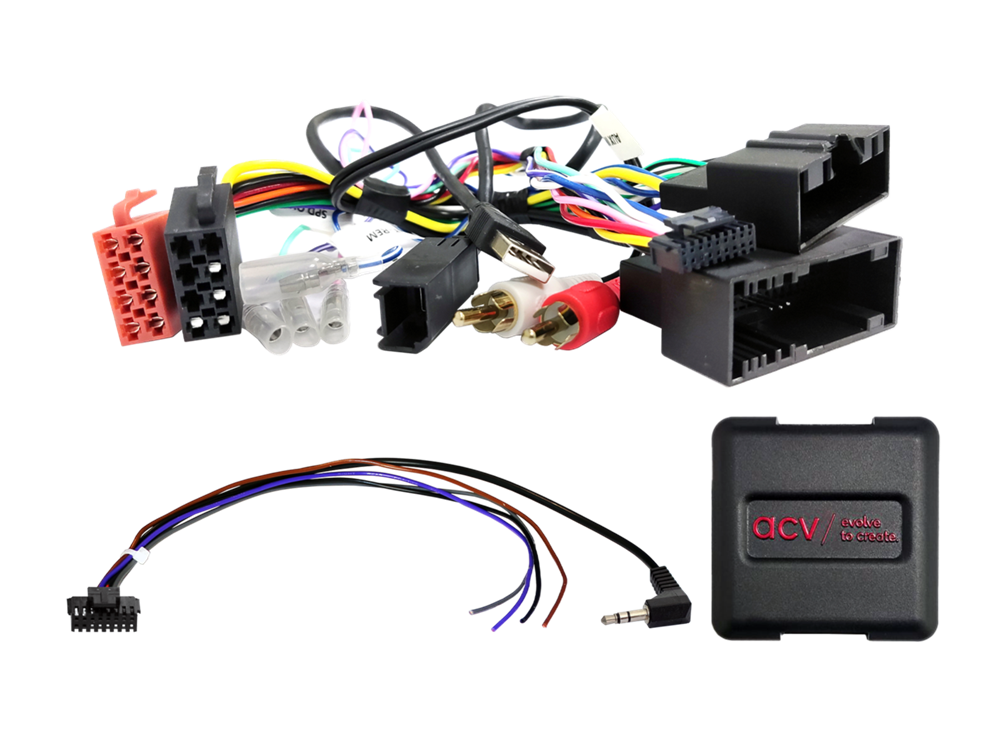

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN Bus

connector: 24 Pin Ford
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA red/white
connector: OEM USB > USB-A

vehicles with OK and/or speech button
vehicles with OEM display**
vehicles with SYNC funktion not supported

date/time settings not supported
vehicle settings not supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Ford Everest 2015 - 2020
Ford Ranger (2AB) 01/2016 - 01/2019
Ford Ranger (2AB) 01/2019 - 2021
Ford Transit Custom (FAC/FAD) 06/2016 - 01/2018*/**
Ford Transit (V363) (FCA/FAD) 06/2016 - 06/2019*/***

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal


SWC

*OEM USB/AUX not supported
**vehicles with Euro 6
**vehicles with Euro 5 > item: 42xfo008
**vehicles without OEM display > item: 42xfo015
***OEM display must be reconnected
