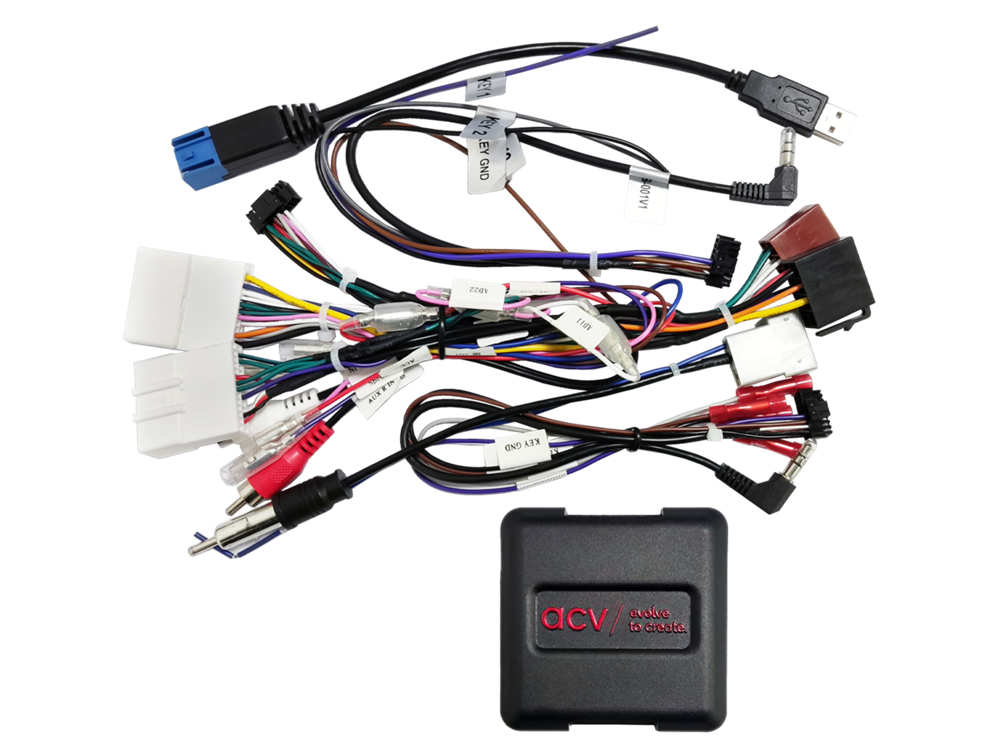

RAT INTERFACE TIL NISSAN MED 24 PIN STIK 2014 > ANT,USB OG AUX BIBEHOLDELSE (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller: Beholder OEM USB/AUX hvis det er i bilen.
Note:

CAN Bus

connector: 20 Pin / 32 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna > DIN(m)
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A

blue: +12V antenna remote

vehicles without 360° OEM camera system

AUX:
check for correct assignment by measuring with OEM HU before installation

date/time setting supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan Micra (K14) 03/2017 - 08/2019*
Nissan Pulsar (C13) 10/2014 - 06/2018
Nissan Qashqai (J11) 03/2014 - 07/2017**
Nissan Titan (H61) 2015 - 2019
Nissan X-Trail (T32) 07/2014 - 07/2017

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

date/time setting supported

*vehicles without OEM PDC / OEM camera
**vehicles with model equipment Acenta
