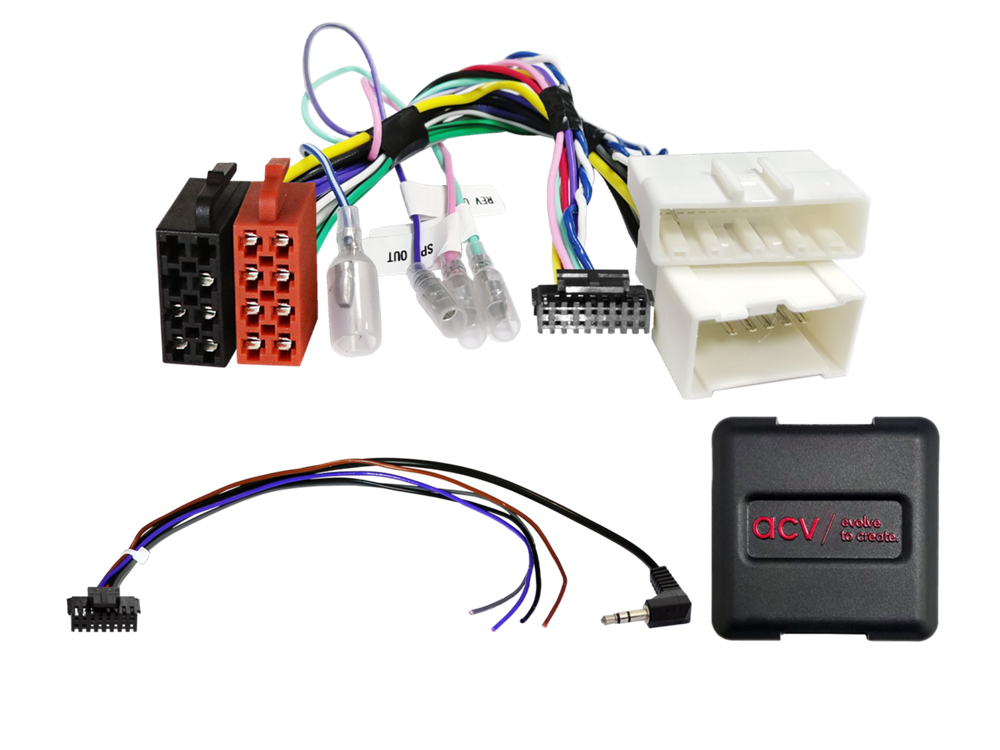

RAT INTERFACE TIL RENAULT 2008> MED CAN-BUS (ALL INCL)

Varenr.: 42xrn008

PRIS ER PR. Stk

Pris ved køb af 1 Stk,569,00 DKK

På lager hos vores leverandør

Download manual

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN Bus

connector: 12 Pin / 32 Pin Dacia / Nissan
connector: OEM SWC > 3,5mm Jack / loose wire

date/time setting supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan
Nissan NV400 (M) 07/2014- 07/2020*
Nissan NV400 (M) 07/2020 - 12/2021*

Opel
Opel Movano B (X62) 06/2013 - 09/2019*

Renault
Renault Capture (R) 06/2013 - 12/2019*
Renault Clio IV (X98) 11/2012 - 06/2016**
Renault Clio IV (X98) 06/2016 - 12/2020**
Renault Grand Scenic 04/2012 - 09/2016****
Renault Master III (M) 09/2014 - 09/2019*
Renault Megane III (Z/BZ) 04/2012 - 12/2013
Renault Megane III (Z/BZ) 01/2014 - 07/2016***
Renault Scenic (JZ) 02/2012 - 09/2016****
Renault Trafic III (J/JL) 09/2014 - 07/2019****/*****
Renault Trafic III (J/JL) 09/2019 - 03/2022**/****/*****
Renault Twingo II (N) 01/2012 - 07/2014****
Renault Twingo III (AH) 09/2014 - 04/2019*****
Renault Wind (N) 08/2010 - 08/2013****

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

*vehicles without OEM Sat Nav
*vehicles with 1-DIN OEM HU black with frontAUX/USB
*vehicles with 1-DIN OEM HU black with frontAUX/USB 2 x rotary knob
**vehicles with R-Link OEM Sat Nav OEM Sat Nav display with silverbox without front AUX/USB
***vehicles with Radio+ Continental OEM HU
****vehicles with 1-DIN OEM HU silver with front USB
****vehicles with 1-DIN OEM HU black with front USB > item: 42xvx007
*****vehicles with R-Link OEM HU
