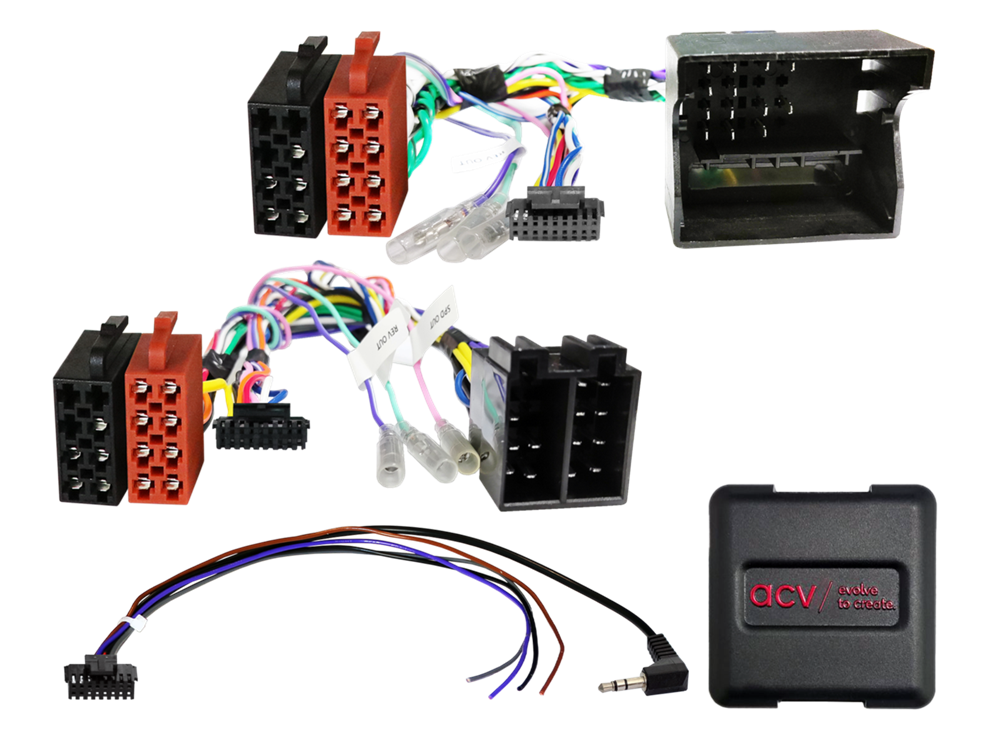

RAT INTERFACE TIL MERCEDES DIV 2000 > (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Note:

CAN Bus

connector: 40 Pin Quadlock Mercedes
connector: ISO
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles Mercedes with 1-DIN Audio 5 OEM HU
vehicles Mercedes with 2-DIN Audio 20 OEM HU
vehicles Mercedes with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav

vehicles Mercedes with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav:
clock adjustment not supported > vehicles code to Audio 20 OEM HU

vehicles with 2-DIN OEM CD HU
vehicles Smart with Comand OEM Sat Nav 40 Pin Quadlock

vehicles VW Crafter with RCD 2001 1-DIN OEM HU
vehicles VW Crafter with RCD 3002 2-DIN OEM HU
vehicles VW Crafter with RNS 4001 / RNS 5001 OEM Sat Nav

vehicles with open dash check CAN bus connection and ISO plug assignment by measuring before installation with OEM HU:
incorrect connection damages the interface

vehicles without ISO plug assignment:
Pin 7: +12V ignition current clamp 15
Pin 6: +12V lighting clampl 58

CAN Bus connection:
interior CAN Bus distributor footwell of the vehicle
CAN Bus blue/CAN High <> white/CAN Low alternative > climatronic twisted red/brown CAN High <> brown CAN LOW

reverse gear signal not always supported:
reverse gear signal driverside +12V cable white/blue alternative

dip switch settings for the retrofit device manufacturer (look into the manual)

compatible with all vehicles from LFB Interface:

SWC Mercedes different vehicles/Smart 40Pin Quadlock bulk > item: 42smc001-0
SWC Mercedes different vehicles/Smart(W454)/VW ISO bulk > item: 42smc002-0

Vehicle application:

Mercedes
Mercedes A-Klasse (C169/W169) 10/2004 - 04/2008
Mercedes A-Klasse (C169/W169) 06/2008 - 06/2012
Mercedes B-Klasse (T245) 07/2005 - 04/2008
Mercedes B-Klasse (T245) 04/2008 - 09/2011
Mercedes C-class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes CLC-class (CL203) 06/2008 - 02/2011*
Mercedes CLK-class (W209) 04/2005 - 01/2010
Mercedes CLS-classe (C219) 04/2008 - 09//2010
Mercedes E-class (S211/W211) 03/2008 - 01/2009
Mercedes G-class (W463) 04/2007 - 06/2008
Mercedes G-class (W164) 09/2008 - 06/2012
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (W164) 07/2005 - 04/2008
Mercedes M-class(W164) 10/2008 - 07/2011
Mercedes ML (W164) 07/2005 - 04/2008**
Mercedes ML (W164) 10/2008 - 07/2011**
Mercedes R-class (W251) 09/2005 - 05/2007
Mercedes R-class (W251) 05/2007 - 05/2010
Mercedes SLK-class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 04/2006 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014

Smart
Smart For Four (W454) 01/2004 - 04/2007

VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
