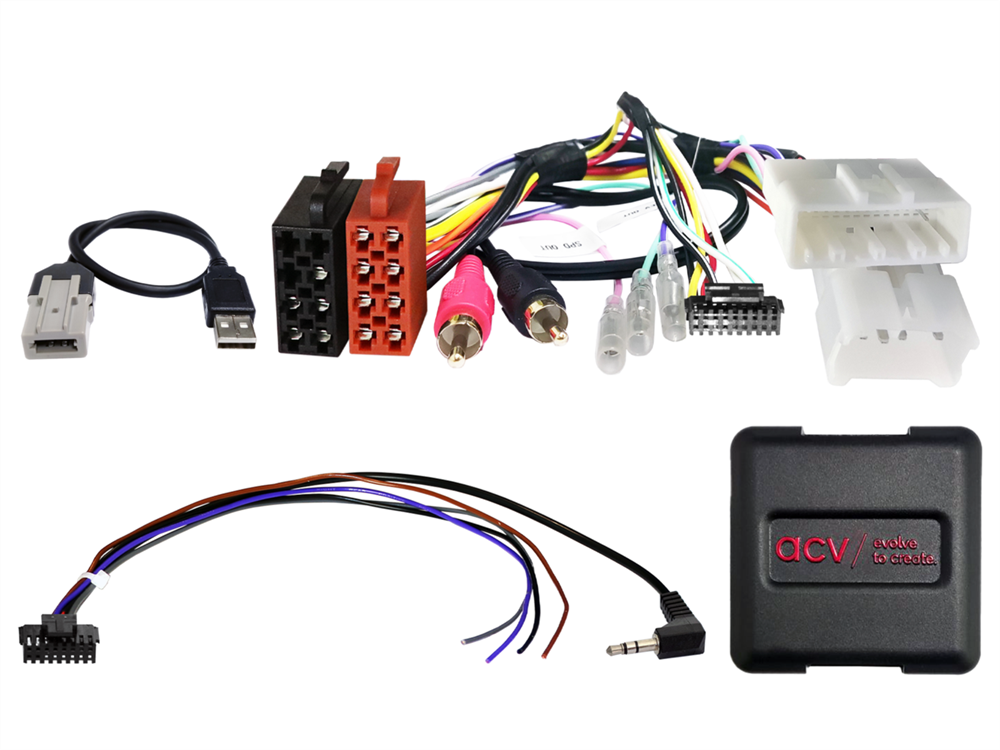

RAT INTERFACE TIL 108, C1 OG AYGO 2014> MED AUX/USB BIBEHOLDELSE

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Samt beholder usb og aux hvis det er i bilen fra start
Note:

analog

connector: Toyota 10 Pin / 6 Pin / 20 Pin Toyota
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM USB > USB-A
connector: OEM AUX > RCA(m) red/black

check the pin assignment to avoid malfunctions or defects on the vehicle or retrofit device before connecting by measuring

USB > check for correct assignment before installation
AUX > check for correct assignment before installation

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen C1 (P) 07/2014 - 09/2021

Peugeot
Peugeot 108 (P) 07/2014 - 03/2021

Toyota
Toyota Aygo (AB1) 07/2014 - 06/2018
Toyota Aygo (AB1) 06/2018 - 03/2022

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC
42xpg016 og 42xty006 er identiske
