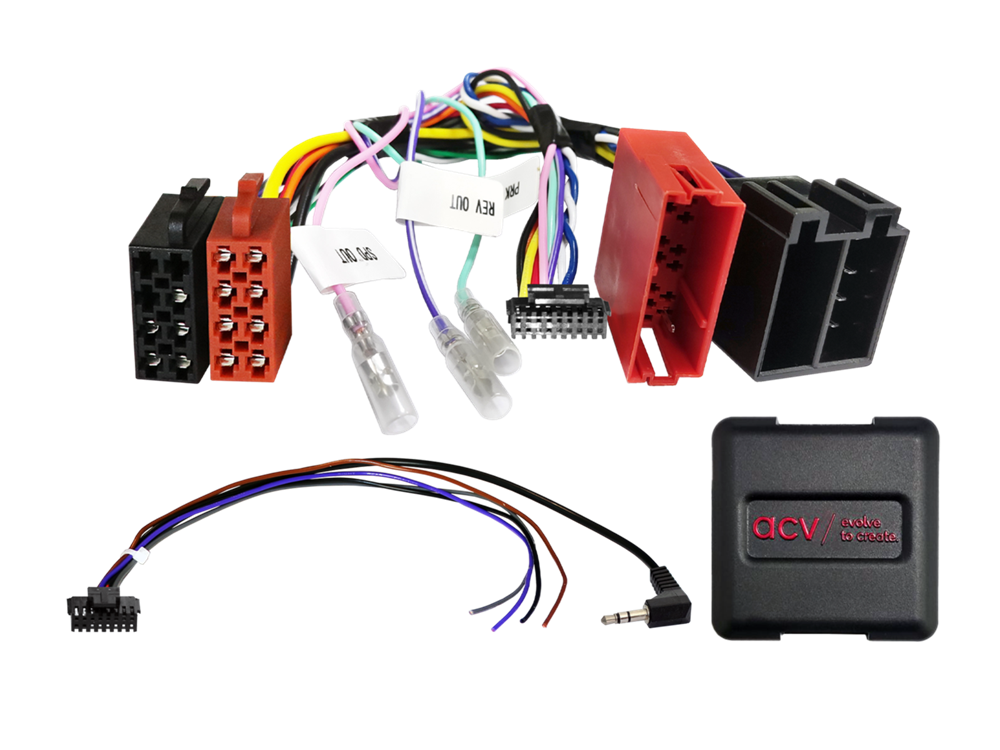

RAT INTERFACE TIL RENAULT/NISSAN/OPEL 2007 > 2016 (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller:
Note:

CAN Bus

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with external display

vehicles without Arkamis DSP OEM amplified system
vehicles without OEM HU with display build in without front USB
vehicles without Radiosat Classic OEM HU > contact support

external OEM display must be reconnected to the vehicle

date/time setting supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan
Nissan NV 400 09/2010 - 06/2014
Nissan Primastar (X83) 01/2011 - 05/2015*

Opel
Opel Movano (B) 02/2010 - 08/2014
Opel Vivaro B (X83) 01/2011 - 08/2014*

Renault
Renault Clio III (R) 05/2009 - 04/2014
Renault Grand Modus (P) 01/2008 - 03/2013
Renault Grand Scenic 04/2009 - 09/2016
Renault Laguna III (BT) 10/2007 - 09/2014
Renault Master III 02/2010 - 08/2014
Renault Modus (P) 04/2008 - 12/2012
Renault Mégane III (BZ/Z) 10/2008 - 12/2013
Renault Scenic III (JZ) 06/2009 - 02/2012
Renault Trafic II (JL/FL/EL Facelift) 01/2011 - 08/2014*
Renault Twingo II (N) 09/2009 - 12/2011*/**
Renault Wind (N) 08/2010 - 08/2013**

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

*vehicles with OEM HU with display build in without front USB > item SWC Nissan/Renault ISO/Mini ISO yellow/OEM HU with display: 42k-1250-000
**vehicles with Update List OEM HU
