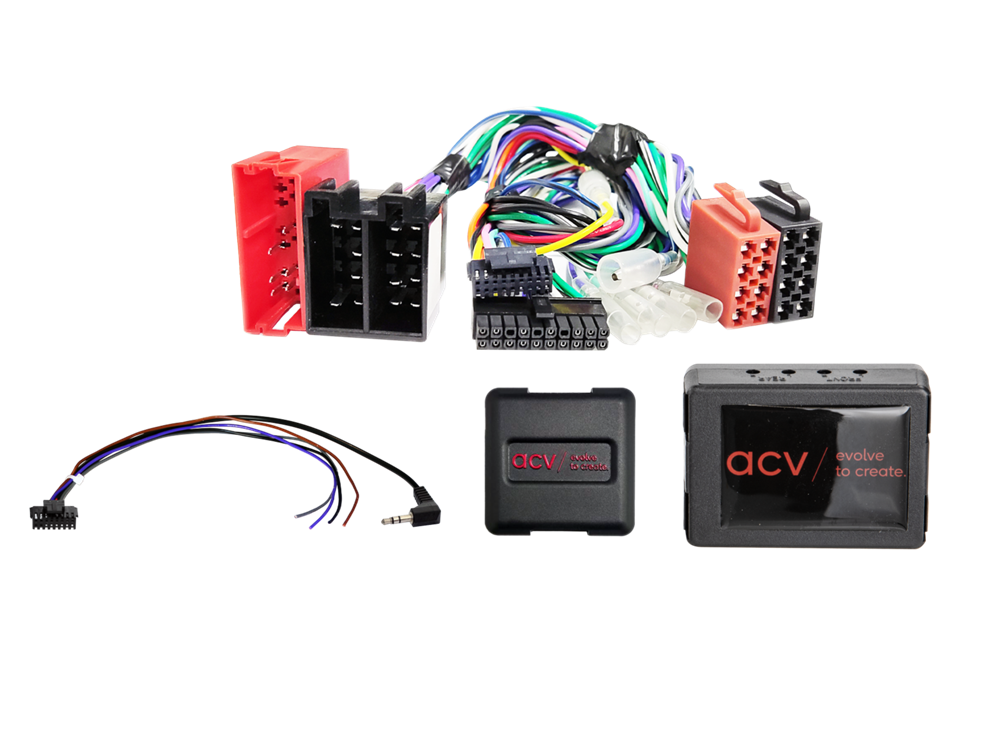

RAT INTERFACE TIL AUDI A3/A4/TT 2000 > HALV/FULL AKTIV (BOSE)(ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN Bus

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM amplified system 2 channel / 4 channel > speaker output front/rear*

vehicles with Blaupunkt / Matsushita / Grundig / Chorus II / Concert II / Symphony II 1-DIN OEM HU with 2 rotary knobs

vehicles with amplifier switch-off noise test additionally:
Noise filter NF GND decouple RCA > item: 30.5000-01

blue: +12V amplified system remote

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Audi A2 (8Z) 11/1999 - 07/2005
Audi A3 (8L) 08/2000 - 06/2003
Audi A3 (8P) 07/2003 - 05-2005
Audi A4 (B6/B7) 11/2000 - 02/2009
Audi A6 (4B/C5) 05/2001 - 03/2005
Audi TT (8N) 09/1998 - 07/2006

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system 2 channel / 4 channel

*level adjustment
