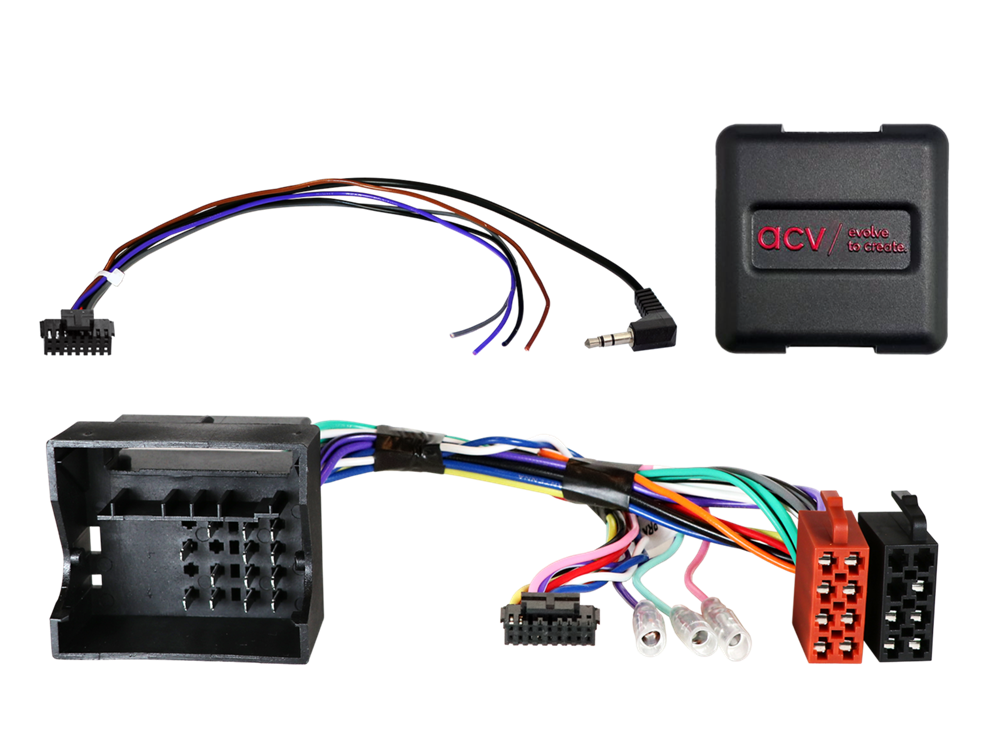

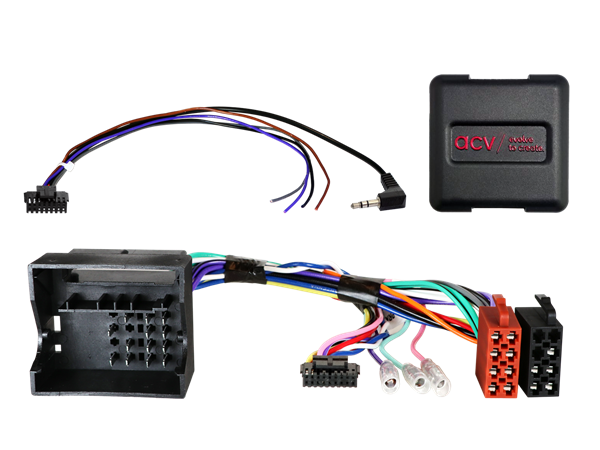

RAT INTERFACE TIL SKODA 2004 > 2015 (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller:

Note:

CAN bus

connector: 40 Pin Quadlock Skoda
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with Audience / Sream OEM HU

vehicles without Technisat OEM HU

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia II (1Z) 06/2004 - 05/2009
Skoda Roomster (5J) 09/2006 - 04/2010
Skoda Roomster (5J) 06/2010 - 02/2015

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
