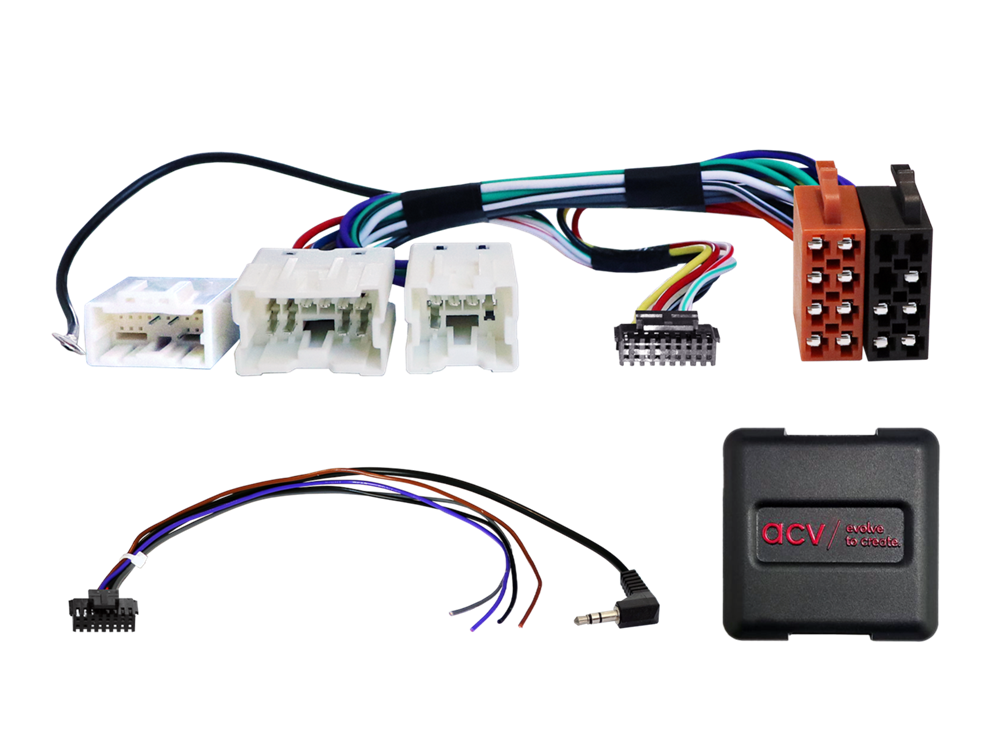

RAT INTERFACE TIL NISSAN 350Z/NAVARA/X-TRAIL 2001> (ALL INCL.)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:

Note:

analog

connector: 10 Pin / 6 Pin / 20 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire

black: GND clamp 31

vehicles with OEM amplified system:
Active system adapter different vehicles ISO>ISO > item: 13-1190-50

+12V Amp remote Pin 2 next to +12V continious current check with OEM HU by measuring

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan 350Z (Z33) 06/2002 - 08/2009
Nissan Navara (D40) 07/2005 - 03/2010*
Nissan X-Trail (T30) 06/2001 - 07/2007**

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with Basic OEM HU with rotary knob left
**vehicles with 2 DIN CH340 OEM HU
